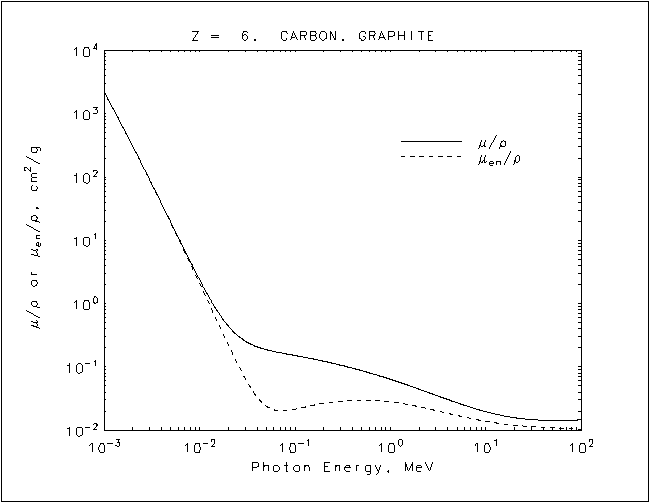

Carbon, Graphite graph


Carbon, Graphite
Z = 6


HTML table format


Energy         μ/ρ         μen/ρ
 (MeV) (cm2/g)  (cm2/g)

1.00000E-03 2.211E+03 2.209E+03
1.50000E-03 7.002E+02 6.990E+02
2.00000E-03 3.026E+02 3.016E+02
3.00000E-03 9.033E+01 8.963E+01
4.00000E-03 3.778E+01 3.723E+01
5.00000E-03 1.912E+01 1.866E+01
6.00000E-03 1.095E+01 1.054E+01
8.00000E-03 4.576E+00 4.242E+00
1.00000E-02 2.373E+00 2.078E+00
1.50000E-02 8.071E-01 5.627E-01
2.00000E-02 4.420E-01 2.238E-01
3.00000E-02 2.562E-01 6.614E-02
4.00000E-02 2.076E-01 3.343E-02
5.00000E-02 1.871E-01 2.397E-02
6.00000E-02 1.753E-01 2.098E-02
8.00000E-02 1.610E-01 2.037E-02
1.00000E-01 1.514E-01 2.147E-02
1.50000E-01 1.347E-01 2.449E-02
2.00000E-01 1.229E-01 2.655E-02
3.00000E-01 1.066E-01 2.870E-02
4.00000E-01 9.546E-02 2.950E-02
5.00000E-01 8.715E-02 2.969E-02
6.00000E-01 8.058E-02 2.956E-02
8.00000E-01 7.076E-02 2.885E-02
1.00000E+00 6.361E-02 2.792E-02
1.25000E+00 5.690E-02 2.669E-02
1.50000E+00 5.179E-02 2.551E-02
2.00000E+00 4.442E-02 2.345E-02
3.00000E+00 3.562E-02 2.048E-02
4.00000E+00 3.047E-02 1.849E-02
5.00000E+00 2.708E-02 1.710E-02
6.00000E+00 2.469E-02 1.607E-02
8.00000E+00 2.154E-02 1.468E-02
1.00000E+01 1.959E-02 1.380E-02
1.50000E+01 1.698E-02 1.258E-02
2.00000E+01 1.575E-02 1.198E-02

Carbon, Graphite
Z = 6


ASCII format
_________________________________

  Energy        μ/ρ        μen/ρ
   (MeV)      (cm2/g)     (cm2/g)
_________________________________

1.00000E-03  2.211E+03  2.209E+03
1.50000E-03  7.002E+02  6.990E+02
2.00000E-03  3.026E+02  3.016E+02
3.00000E-03  9.033E+01  8.963E+01
4.00000E-03  3.778E+01  3.723E+01
5.00000E-03  1.912E+01  1.866E+01
6.00000E-03  1.095E+01  1.054E+01
8.00000E-03  4.576E+00  4.242E+00
1.00000E-02  2.373E+00  2.078E+00
1.50000E-02  8.071E-01  5.627E-01
2.00000E-02  4.420E-01  2.238E-01
3.00000E-02  2.562E-01  6.614E-02
4.00000E-02  2.076E-01  3.343E-02
5.00000E-02  1.871E-01  2.397E-02
6.00000E-02  1.753E-01  2.098E-02
8.00000E-02  1.610E-01  2.037E-02
1.00000E-01  1.514E-01  2.147E-02
1.50000E-01  1.347E-01  2.449E-02
2.00000E-01  1.229E-01  2.655E-02
3.00000E-01  1.066E-01  2.870E-02
4.00000E-01  9.546E-02  2.950E-02
5.00000E-01  8.715E-02  2.969E-02
6.00000E-01  8.058E-02  2.956E-02
8.00000E-01  7.076E-02  2.885E-02
1.00000E+00  6.361E-02  2.792E-02
1.25000E+00  5.690E-02  2.669E-02
1.50000E+00  5.179E-02  2.551E-02
2.00000E+00  4.442E-02  2.345E-02
3.00000E+00  3.562E-02  2.048E-02
4.00000E+00  3.047E-02  1.849E-02
5.00000E+00  2.708E-02  1.710E-02
6.00000E+00  2.469E-02  1.607E-02
8.00000E+00  2.154E-02  1.468E-02
1.00000E+01  1.959E-02  1.380E-02
1.50000E+01  1.698E-02  1.258E-02
2.00000E+01  1.575E-02  1.198E-02
