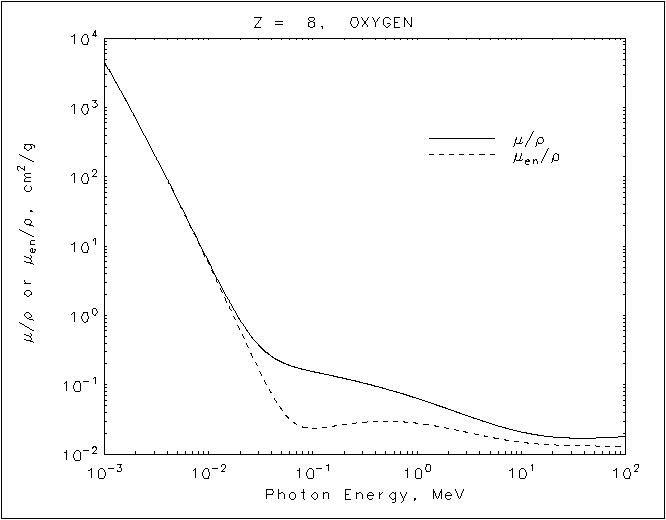

Oxygen graph


Oxygen
Z = 8


HTML table format


Energy         μ/ρ         μen/ρ
 (MeV) (cm2/g)  (cm2/g)

1.00000E-03 4.590E+03 4.576E+03
1.50000E-03 1.549E+03 1.545E+03
2.00000E-03 6.949E+02 6.926E+02
3.00000E-03 2.171E+02 2.158E+02
4.00000E-03 9.315E+01 9.221E+01
5.00000E-03 4.790E+01 4.715E+01
6.00000E-03 2.770E+01 2.708E+01
8.00000E-03 1.163E+01 1.116E+01
1.00000E-02 5.952E+00 5.565E+00
1.50000E-02 1.836E+00 1.545E+00
2.00000E-02 8.651E-01 6.179E-01
3.00000E-02 3.779E-01 1.729E-01
4.00000E-02 2.585E-01 7.530E-02
5.00000E-02 2.132E-01 4.414E-02
6.00000E-02 1.907E-01 3.207E-02
8.00000E-02 1.678E-01 2.468E-02
1.00000E-01 1.551E-01 2.355E-02
1.50000E-01 1.361E-01 2.506E-02
2.00000E-01 1.237E-01 2.679E-02
3.00000E-01 1.070E-01 2.877E-02
4.00000E-01 9.566E-02 2.953E-02
5.00000E-01 8.729E-02 2.971E-02
6.00000E-01 8.070E-02 2.957E-02
8.00000E-01 7.087E-02 2.887E-02
1.00000E+00 6.372E-02 2.794E-02
1.25000E+00 5.697E-02 2.669E-02
1.50000E+00 5.185E-02 2.551E-02
2.00000E+00 4.459E-02 2.350E-02
3.00000E+00 3.597E-02 2.066E-02
4.00000E+00 3.100E-02 1.882E-02
5.00000E+00 2.777E-02 1.757E-02
6.00000E+00 2.552E-02 1.668E-02
8.00000E+00 2.263E-02 1.553E-02
1.00000E+01 2.089E-02 1.483E-02
1.50000E+01 1.866E-02 1.396E-02
2.00000E+01 1.770E-02 1.360E-02

Oxygen
Z = 8


ASCII format
_________________________________

  Energy       μ/ρ        μen/ρ
   (MeV)      (cm2/g)     (cm2/g)
_________________________________

1.00000E-03  4.590E+03  4.576E+03
1.50000E-03  1.549E+03  1.545E+03
2.00000E-03  6.949E+02  6.926E+02
3.00000E-03  2.171E+02  2.158E+02
4.00000E-03  9.315E+01  9.221E+01
5.00000E-03  4.790E+01  4.715E+01
6.00000E-03  2.770E+01  2.708E+01
8.00000E-03  1.163E+01  1.116E+01
1.00000E-02  5.952E+00  5.565E+00
1.50000E-02  1.836E+00  1.545E+00
2.00000E-02  8.651E-01  6.179E-01
3.00000E-02  3.779E-01  1.729E-01
4.00000E-02  2.585E-01  7.530E-02
5.00000E-02  2.132E-01  4.414E-02
6.00000E-02  1.907E-01  3.207E-02
8.00000E-02  1.678E-01  2.468E-02
1.00000E-01  1.551E-01  2.355E-02
1.50000E-01  1.361E-01  2.506E-02
2.00000E-01  1.237E-01  2.679E-02
3.00000E-01  1.070E-01  2.877E-02
4.00000E-01  9.566E-02  2.953E-02
5.00000E-01  8.729E-02  2.971E-02
6.00000E-01  8.070E-02  2.957E-02
8.00000E-01  7.087E-02  2.887E-02
1.00000E+00  6.372E-02  2.794E-02
1.25000E+00  5.697E-02  2.669E-02
1.50000E+00  5.185E-02  2.551E-02
2.00000E+00  4.459E-02  2.350E-02
3.00000E+00  3.597E-02  2.066E-02
4.00000E+00  3.100E-02  1.882E-02
5.00000E+00  2.777E-02  1.757E-02
6.00000E+00  2.552E-02  1.668E-02
8.00000E+00  2.263E-02  1.553E-02
1.00000E+01  2.089E-02  1.483E-02
1.50000E+01  1.866E-02  1.396E-02
2.00000E+01  1.770E-02  1.360E-02
