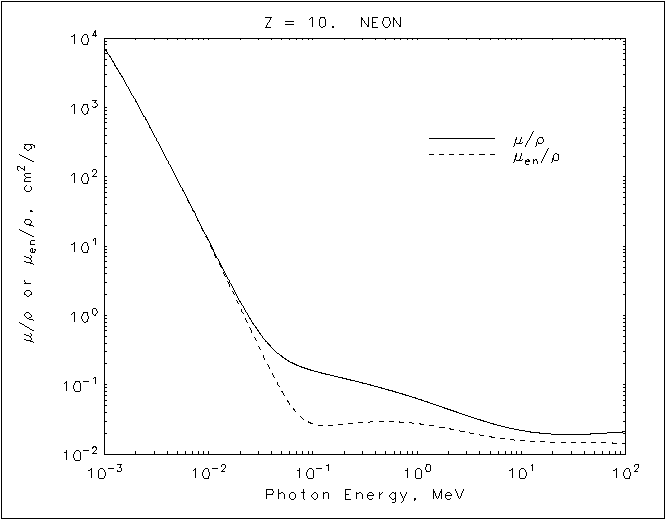

Neon graph


Neon
Z = 10

HTML table format
Energy         μ/ρ         μen/ρ
 (MeV) (cm2/g)  (cm2/g)
1.00000E-03 7.409E+03 7.326E+03
1.50000E-03 2.666E+03 2.645E+03
2.00000E-03 1.243E+03 1.234E+03
3.00000E-03 4.051E+02 4.021E+02
4.00000E-03 1.785E+02 1.767E+02
5.00000E-03 9.339E+01 9.214E+01
6.00000E-03 5.467E+01 5.369E+01
8.00000E-03 2.328E+01 2.260E+01
1.00000E-02 1.197E+01 1.143E+01
1.50000E-02 3.613E+00 3.253E+00
2.00000E-02 1.606E+00 1.317E+00
3.00000E-02 5.923E-01 3.676E-01
4.00000E-02 3.473E-01 1.528E-01
5.00000E-02 2.579E-01 8.182E-02
6.00000E-02 2.161E-01 5.287E-02
8.00000E-02 1.781E-01 3.273E-02
1.00000E-01 1.600E-01 2.733E-02
1.50000E-01 1.370E-01 2.590E-02
2.00000E-01 1.236E-01 2.697E-02
3.00000E-01 1.064E-01 2.862E-02
4.00000E-01 9.502E-02 2.931E-02
5.00000E-01 8.664E-02 2.946E-02
6.00000E-01 8.006E-02 2.930E-02
8.00000E-01 7.029E-02 2.860E-02
1.00000E+00 6.316E-02 2.766E-02
1.25000E+00 5.646E-02 2.641E-02
1.50000E+00 5.145E-02 2.526E-02
2.00000E+00 4.430E-02 2.330E-02
3.00000E+00 3.594E-02 2.061E-02
4.00000E+00 3.122E-02 1.894E-02
5.00000E+00 2.818E-02 1.784E-02
6.00000E+00 2.610E-02 1.709E-02
8.00000E+00 2.348E-02 1.616E-02
1.00000E+01 2.197E-02 1.564E-02
1.50000E+01 2.013E-02 1.508E-02
2.00000E+01 1.946E-02 1.491E-02

Neon
Z = 10

ASCII format
_________________________________

  Energy       μ/ρ        μen/ρ
   (MeV)      (cm2/g)     (cm2/g)
_________________________________

1.00000E-03  7.409E+03  7.326E+03
1.50000E-03  2.666E+03  2.645E+03
2.00000E-03  1.243E+03  1.234E+03
3.00000E-03  4.051E+02  4.021E+02
4.00000E-03  1.785E+02  1.767E+02
5.00000E-03  9.339E+01  9.214E+01
6.00000E-03  5.467E+01  5.369E+01
8.00000E-03  2.328E+01  2.260E+01
1.00000E-02  1.197E+01  1.143E+01
1.50000E-02  3.613E+00  3.253E+00
2.00000E-02  1.606E+00  1.317E+00
3.00000E-02  5.923E-01  3.676E-01
4.00000E-02  3.473E-01  1.528E-01
5.00000E-02  2.579E-01  8.182E-02
6.00000E-02  2.161E-01  5.287E-02
8.00000E-02  1.781E-01  3.273E-02
1.00000E-01  1.600E-01  2.733E-02
1.50000E-01  1.370E-01  2.590E-02
2.00000E-01  1.236E-01  2.697E-02
3.00000E-01  1.064E-01  2.862E-02
4.00000E-01  9.502E-02  2.931E-02
5.00000E-01  8.664E-02  2.946E-02
6.00000E-01  8.006E-02  2.930E-02
8.00000E-01  7.029E-02  2.860E-02
1.00000E+00  6.316E-02  2.766E-02
1.25000E+00  5.646E-02  2.641E-02
1.50000E+00  5.145E-02  2.526E-02
2.00000E+00  4.430E-02  2.330E-02
3.00000E+00  3.594E-02  2.061E-02
4.00000E+00  3.122E-02  1.894E-02
5.00000E+00  2.818E-02  1.784E-02
6.00000E+00  2.610E-02  1.709E-02
8.00000E+00  2.348E-02  1.616E-02
1.00000E+01  2.197E-02  1.564E-02
1.50000E+01  2.013E-02  1.508E-02
2.00000E+01  1.946E-02  1.491E-02
