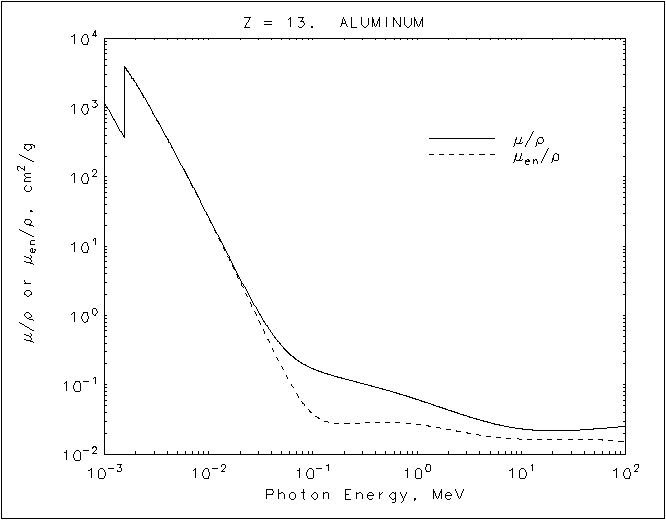

Aluminum graph


Aluminum
Z = 13


HTML table format


         Energy         μ/ρ         μen/ρ
   (MeV) (cm2/g)  (cm2/g)

  1.00000E-03 1.185E+03 1.183E+03
1.50000E-03 4.022E+02 4.001E+02
1.55960E-03 3.621E+02 3.600E+02
K 1.55960E-03 3.957E+03 3.829E+03
  2.00000E-03 2.263E+03 2.204E+03
3.00000E-03 7.880E+02 7.732E+02
4.00000E-03 3.605E+02 3.545E+02
5.00000E-03 1.934E+02 1.902E+02
6.00000E-03 1.153E+02 1.133E+02
8.00000E-03 5.033E+01 4.918E+01
1.00000E-02 2.623E+01 2.543E+01
1.50000E-02 7.955E+00 7.487E+00
2.00000E-02 3.441E+00 3.094E+00
3.00000E-02 1.128E+00 8.778E-01
4.00000E-02 5.685E-01 3.601E-01
5.00000E-02 3.681E-01 1.840E-01
6.00000E-02 2.778E-01 1.099E-01
8.00000E-02 2.018E-01 5.511E-02
1.00000E-01 1.704E-01 3.794E-02
1.50000E-01 1.378E-01 2.827E-02
2.00000E-01 1.223E-01 2.745E-02
3.00000E-01 1.042E-01 2.816E-02
4.00000E-01 9.276E-02 2.862E-02
5.00000E-01 8.445E-02 2.868E-02
6.00000E-01 7.802E-02 2.851E-02
8.00000E-01 6.841E-02 2.778E-02
1.00000E+00 6.146E-02 2.686E-02
1.25000E+00 5.496E-02 2.565E-02
1.50000E+00 5.006E-02 2.451E-02
2.00000E+00 4.324E-02 2.266E-02
3.00000E+00 3.541E-02 2.024E-02
4.00000E+00 3.106E-02 1.882E-02
5.00000E+00 2.836E-02 1.795E-02
6.00000E+00 2.655E-02 1.739E-02
8.00000E+00 2.437E-02 1.678E-02
1.00000E+01 2.318E-02 1.650E-02
1.50000E+01 2.195E-02 1.631E-02
2.00000E+01 2.168E-02 1.633E-02

Aluminum
Z = 13


ASCII format
____________________________________

     Energy       μ/ρ        μen/ρ
      (MeV)      (cm2/g)     (cm2/g)
____________________________________

   1.00000E-03  1.185E+03  1.183E+03
   1.50000E-03  4.022E+02  4.001E+02
   1.55960E-03  3.621E+02  3.600E+02
K  1.55960E-03  3.957E+03  3.829E+03
   2.00000E-03  2.263E+03  2.204E+03
   3.00000E-03  7.880E+02  7.732E+02
   4.00000E-03  3.605E+02  3.545E+02
   5.00000E-03  1.934E+02  1.902E+02
   6.00000E-03  1.153E+02  1.133E+02
   8.00000E-03  5.033E+01  4.918E+01
   1.00000E-02  2.623E+01  2.543E+01
   1.50000E-02  7.955E+00  7.487E+00
   2.00000E-02  3.441E+00  3.094E+00
   3.00000E-02  1.128E+00  8.778E-01
   4.00000E-02  5.685E-01  3.601E-01
   5.00000E-02  3.681E-01  1.840E-01
   6.00000E-02  2.778E-01  1.099E-01
   8.00000E-02  2.018E-01  5.511E-02
   1.00000E-01  1.704E-01  3.794E-02
   1.50000E-01  1.378E-01  2.827E-02
   2.00000E-01  1.223E-01  2.745E-02
   3.00000E-01  1.042E-01  2.816E-02
   4.00000E-01  9.276E-02  2.862E-02
   5.00000E-01  8.445E-02  2.868E-02
   6.00000E-01  7.802E-02  2.851E-02
   8.00000E-01  6.841E-02  2.778E-02
   1.00000E+00  6.146E-02  2.686E-02
   1.25000E+00  5.496E-02  2.565E-02
   1.50000E+00  5.006E-02  2.451E-02
   2.00000E+00  4.324E-02  2.266E-02
   3.00000E+00  3.541E-02  2.024E-02
   4.00000E+00  3.106E-02  1.882E-02
   5.00000E+00  2.836E-02  1.795E-02
   6.00000E+00  2.655E-02  1.739E-02
   8.00000E+00  2.437E-02  1.678E-02
   1.00000E+01  2.318E-02  1.650E-02
   1.50000E+01  2.195E-02  1.631E-02
   2.00000E+01  2.168E-02  1.633E-02
