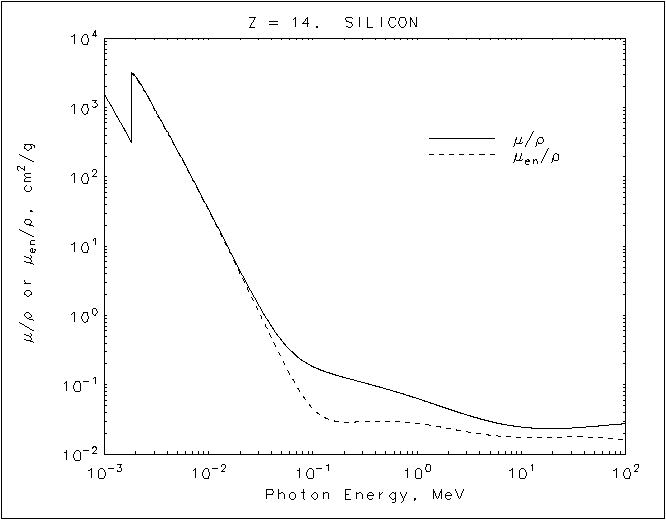

Silicon graph


Silicon
Z = 14


HTML table format


         Energy         μ/ρ         μen/ρ
   (MeV) (cm2/g)  (cm2/g)

  1.00000E-03 1.570E+03 1.567E+03
1.50000E-03 5.355E+02 5.331E+02
1.83890E-03 3.092E+02 3.070E+02
K 1.83890E-03 3.192E+03 3.059E+03
  2.00000E-03 2.777E+03 2.669E+03
3.00000E-03 9.784E+02 9.516E+02
4.00000E-03 4.529E+02 4.427E+02
5.00000E-03 2.450E+02 2.400E+02
6.00000E-03 1.470E+02 1.439E+02
8.00000E-03 6.468E+01 6.313E+01
1.00000E-02 3.389E+01 3.289E+01
1.50000E-02 1.034E+01 9.794E+00
2.00000E-02 4.464E+00 4.076E+00
3.00000E-02 1.436E+00 1.164E+00
4.00000E-02 7.012E-01 4.782E-01
5.00000E-02 4.385E-01 2.430E-01
6.00000E-02 3.207E-01 1.434E-01
8.00000E-02 2.228E-01 6.896E-02
1.00000E-01 1.835E-01 4.513E-02
1.50000E-01 1.448E-01 3.086E-02
2.00000E-01 1.275E-01 2.905E-02
3.00000E-01 1.082E-01 2.932E-02
4.00000E-01 9.614E-02 2.968E-02
5.00000E-01 8.748E-02 2.971E-02
6.00000E-01 8.077E-02 2.951E-02
8.00000E-01 7.082E-02 2.875E-02
1.00000E+00 6.361E-02 2.778E-02
1.25000E+00 5.688E-02 2.652E-02
1.50000E+00 5.183E-02 2.535E-02
2.00000E+00 4.480E-02 2.345E-02
3.00000E+00 3.678E-02 2.101E-02
4.00000E+00 3.240E-02 1.963E-02
5.00000E+00 2.967E-02 1.878E-02
6.00000E+00 2.788E-02 1.827E-02
8.00000E+00 2.574E-02 1.773E-02
1.00000E+01 2.462E-02 1.753E-02
1.50000E+01 2.352E-02 1.746E-02
2.00000E+01 2.338E-02 1.757E-02

Silicon
Z = 14


ASCII format
____________________________________

     Energy       μ/ρ        μen/ρ
      (MeV)      (cm2/g)     (cm2/g)
____________________________________


   1.00000E-03  1.570E+03  1.567E+03
   1.50000E-03  5.355E+02  5.331E+02
   1.83890E-03  3.092E+02  3.070E+02
K  1.83890E-03  3.192E+03  3.059E+03
   2.00000E-03  2.777E+03  2.669E+03
   3.00000E-03  9.784E+02  9.516E+02
   4.00000E-03  4.529E+02  4.427E+02
   5.00000E-03  2.450E+02  2.400E+02
   6.00000E-03  1.470E+02  1.439E+02
   8.00000E-03  6.468E+01  6.313E+01
   1.00000E-02  3.389E+01  3.289E+01
   1.50000E-02  1.034E+01  9.794E+00
   2.00000E-02  4.464E+00  4.076E+00
   3.00000E-02  1.436E+00  1.164E+00
   4.00000E-02  7.012E-01  4.782E-01
   5.00000E-02  4.385E-01  2.430E-01
   6.00000E-02  3.207E-01  1.434E-01
   8.00000E-02  2.228E-01  6.896E-02
   1.00000E-01  1.835E-01  4.513E-02
   1.50000E-01  1.448E-01  3.086E-02
   2.00000E-01  1.275E-01  2.905E-02
   3.00000E-01  1.082E-01  2.932E-02
   4.00000E-01  9.614E-02  2.968E-02
   5.00000E-01  8.748E-02  2.971E-02
   6.00000E-01  8.077E-02  2.951E-02
   8.00000E-01  7.082E-02  2.875E-02
   1.00000E+00  6.361E-02  2.778E-02
   1.25000E+00  5.688E-02  2.652E-02
   1.50000E+00  5.183E-02  2.535E-02
   2.00000E+00  4.480E-02  2.345E-02
   3.00000E+00  3.678E-02  2.101E-02
   4.00000E+00  3.240E-02  1.963E-02
   5.00000E+00  2.967E-02  1.878E-02
   6.00000E+00  2.788E-02  1.827E-02
   8.00000E+00  2.574E-02  1.773E-02
   1.00000E+01  2.462E-02  1.753E-02
   1.50000E+01  2.352E-02  1.746E-02
   2.00000E+01  2.338E-02  1.757E-02
