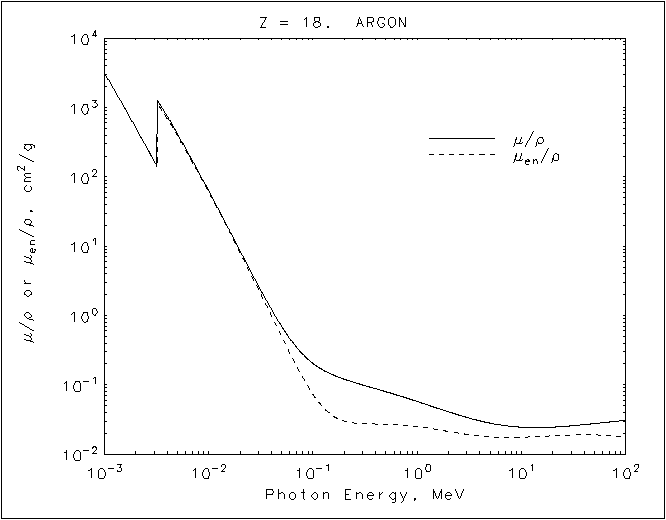

graph


Argon
Z = 18


HTML table format


         Energy         μ/ρ         μen/ρ
   (MeV) (cm2/g)  (cm2/g)

  1.00000E-03 3.184E+03 3.180E+03
1.50000E-03 1.105E+03 1.102E+03
2.00000E-03 5.120E+02 5.093E+02
3.00000E-03 1.703E+02 1.682E+02
3.20290E-03 1.424E+02 1.403E+02
K 3.20290E-03 1.275E+03 1.153E+03
  4.00000E-03 7.572E+02 6.979E+02
5.00000E-03 4.225E+02 3.953E+02
6.00000E-03 2.593E+02 2.449E+02
8.00000E-03 1.180E+02 1.125E+02
1.00000E-02 6.316E+01 6.038E+01
1.50000E-02 1.983E+01 1.886E+01
2.00000E-02 8.629E+00 8.074E+00
3.00000E-02 2.697E+00 2.382E+00
4.00000E-02 1.228E+00 9.907E-01
5.00000E-02 7.012E-01 5.020E-01
6.00000E-02 4.664E-01 2.904E-01
8.00000E-02 2.760E-01 1.280E-01
1.00000E-01 2.043E-01 7.344E-02
1.50000E-01 1.427E-01 3.703E-02
2.00000E-01 1.205E-01 2.998E-02
3.00000E-01 9.953E-02 2.757E-02
4.00000E-01 8.776E-02 2.727E-02
5.00000E-01 7.958E-02 2.708E-02
6.00000E-01 7.335E-02 2.679E-02
8.00000E-01 6.419E-02 2.601E-02
1.00000E+00 5.762E-02 2.510E-02
1.25000E+00 5.150E-02 2.394E-02
1.50000E+00 4.695E-02 2.288E-02
2.00000E+00 4.074E-02 2.123E-02
3.00000E+00 3.384E-02 1.927E-02
4.00000E+00 3.019E-02 1.827E-02
5.00000E+00 2.802E-02 1.777E-02
6.00000E+00 2.667E-02 1.753E-02
8.00000E+00 2.517E-02 1.742E-02
1.00000E+01 2.451E-02 1.754E-02
1.50000E+01 2.418E-02 1.800E-02
2.00000E+01 2.453E-02 1.842E-02

Argon
Z = 18


ASCII format
____________________________________

     Energy       μ/ρ        μen/ρ
      (MeV)      (cm2/g)     (cm2/g)
____________________________________

   1.00000E-03  3.184E+03  3.180E+03
   1.50000E-03  1.105E+03  1.102E+03
   2.00000E-03  5.120E+02  5.093E+02
   3.00000E-03  1.703E+02  1.682E+02
   3.20290E-03  1.424E+02  1.403E+02
K  3.20290E-03  1.275E+03  1.153E+03
   4.00000E-03  7.572E+02  6.979E+02
   5.00000E-03  4.225E+02  3.953E+02
   6.00000E-03  2.593E+02  2.449E+02
   8.00000E-03  1.180E+02  1.125E+02
   1.00000E-02  6.316E+01  6.038E+01
   1.50000E-02  1.983E+01  1.886E+01
   2.00000E-02  8.629E+00  8.074E+00
   3.00000E-02  2.697E+00  2.382E+00
   4.00000E-02  1.228E+00  9.907E-01
   5.00000E-02  7.012E-01  5.020E-01
   6.00000E-02  4.664E-01  2.904E-01
   8.00000E-02  2.760E-01  1.280E-01
   1.00000E-01  2.043E-01  7.344E-02
   1.50000E-01  1.427E-01  3.703E-02
   2.00000E-01  1.205E-01  2.998E-02
   3.00000E-01  9.953E-02  2.757E-02
   4.00000E-01  8.776E-02  2.727E-02
   5.00000E-01  7.958E-02  2.708E-02
   6.00000E-01  7.335E-02  2.679E-02
   8.00000E-01  6.419E-02  2.601E-02
   1.00000E+00  5.762E-02  2.510E-02
   1.25000E+00  5.150E-02  2.394E-02
   1.50000E+00  4.695E-02  2.288E-02
   2.00000E+00  4.074E-02  2.123E-02
   3.00000E+00  3.384E-02  1.927E-02
   4.00000E+00  3.019E-02  1.827E-02
   5.00000E+00  2.802E-02  1.777E-02
   6.00000E+00  2.667E-02  1.753E-02
   8.00000E+00  2.517E-02  1.742E-02
   1.00000E+01  2.451E-02  1.754E-02
   1.50000E+01  2.418E-02  1.800E-02
   2.00000E+01  2.453E-02  1.842E-02
