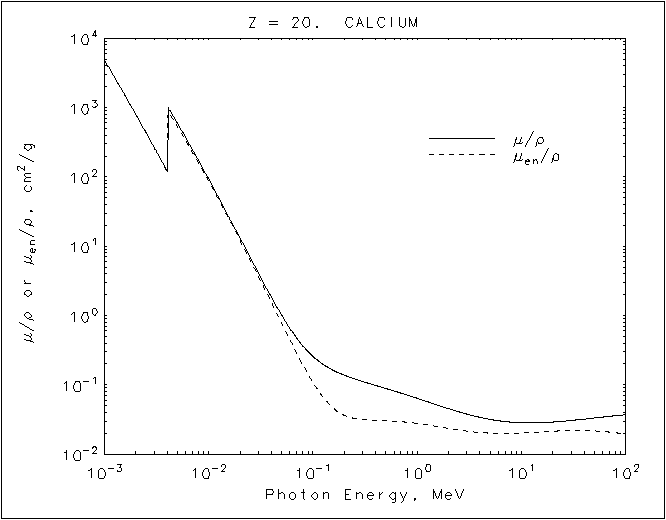

Calcium graph


Calcium
Z = 20


HTML table format


         Energy         μ/ρ         μen/ρ
   (MeV) (cm2/g)  (cm2/g)

  1.00000E-03 4.867E+03 4.861E+03
1.50000E-03 1.714E+03 1.710E+03
2.00000E-03 7.999E+02 7.966E+02
3.00000E-03 2.676E+02 2.650E+02
4.00000E-03 1.218E+02 1.197E+02
4.03810E-03 1.187E+02 1.166E+02
K 4.03810E-03 1.023E+03 8.887E+02
  5.00000E-03 6.026E+02 5.373E+02
6.00000E-03 3.731E+02 3.387E+02
8.00000E-03 1.726E+02 1.600E+02
1.00000E-02 9.341E+01 8.744E+01
1.50000E-02 2.979E+01 2.804E+01
2.00000E-02 1.306E+01 1.220E+01
3.00000E-02 4.080E+00 3.665E+00
4.00000E-02 1.830E+00 1.538E+00
5.00000E-02 1.019E+00 7.822E-01
6.00000E-02 6.578E-01 4.520E-01
8.00000E-02 3.656E-01 1.958E-01
1.00000E-01 2.571E-01 1.085E-01
1.50000E-01 1.674E-01 4.876E-02
2.00000E-01 1.376E-01 3.639E-02
3.00000E-01 1.116E-01 3.146E-02
4.00000E-01 9.783E-02 3.060E-02
5.00000E-01 8.851E-02 3.019E-02
6.00000E-01 8.148E-02 2.979E-02
8.00000E-01 7.122E-02 2.884E-02
1.00000E+00 6.388E-02 2.780E-02
1.25000E+00 5.709E-02 2.650E-02
1.50000E+00 5.207E-02 2.532E-02
2.00000E+00 4.524E-02 2.352E-02
3.00000E+00 3.780E-02 2.147E-02
4.00000E+00 3.395E-02 2.052E-02
5.00000E+00 3.170E-02 2.007E-02
6.00000E+00 3.035E-02 1.992E-02
8.00000E+00 2.892E-02 1.997E-02
1.00000E+01 2.839E-02 2.022E-02
1.50000E+01 2.838E-02 2.088E-02
2.00000E+01 2.903E-02 2.140E-02

Calcium
Z = 20


ASCII format
____________________________________

     Energy       μ/ρ        μen/ρ
      (MeV)      (cm2/g)     (cm2/g)
____________________________________

   1.00000E-03  4.867E+03  4.861E+03
   1.50000E-03  1.714E+03  1.710E+03
   2.00000E-03  7.999E+02  7.966E+02
   3.00000E-03  2.676E+02  2.650E+02
   4.00000E-03  1.218E+02  1.197E+02
   4.03810E-03  1.187E+02  1.166E+02
K  4.03810E-03  1.023E+03  8.887E+02
   5.00000E-03  6.026E+02  5.373E+02
   6.00000E-03  3.731E+02  3.387E+02
   8.00000E-03  1.726E+02  1.600E+02
   1.00000E-02  9.341E+01  8.744E+01
   1.50000E-02  2.979E+01  2.804E+01
   2.00000E-02  1.306E+01  1.220E+01
   3.00000E-02  4.080E+00  3.665E+00
   4.00000E-02  1.830E+00  1.538E+00
   5.00000E-02  1.019E+00  7.822E-01
   6.00000E-02  6.578E-01  4.520E-01
   8.00000E-02  3.656E-01  1.958E-01
   1.00000E-01  2.571E-01  1.085E-01
   1.50000E-01  1.674E-01  4.876E-02
   2.00000E-01  1.376E-01  3.639E-02
   3.00000E-01  1.116E-01  3.146E-02
   4.00000E-01  9.783E-02  3.060E-02
   5.00000E-01  8.851E-02  3.019E-02
   6.00000E-01  8.148E-02  2.979E-02
   8.00000E-01  7.122E-02  2.884E-02
   1.00000E+00  6.388E-02  2.780E-02
   1.25000E+00  5.709E-02  2.650E-02
   1.50000E+00  5.207E-02  2.532E-02
   2.00000E+00  4.524E-02  2.352E-02
   3.00000E+00  3.780E-02  2.147E-02
   4.00000E+00  3.395E-02  2.052E-02
   5.00000E+00  3.170E-02  2.007E-02
   6.00000E+00  3.035E-02  1.992E-02
   8.00000E+00  2.892E-02  1.997E-02
   1.00000E+01  2.839E-02  2.022E-02
   1.50000E+01  2.838E-02  2.088E-02
   2.00000E+01  2.903E-02  2.140E-02
