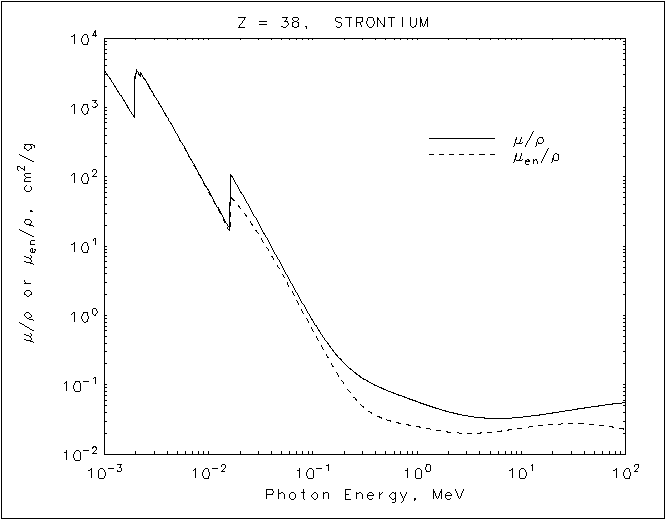

Strontium graph


Strontium
Z = 38


HTML table format


         Energy         μ/ρ         μen/ρ
   (MeV) (cm2/g)  (cm2/g)

  1.00000E-03 3.494E+03 3.487E+03
1.50000E-03 1.347E+03 1.341E+03
1.93960E-03 7.207E+02 7.152E+02
L3 1.93960E-03 2.864E+03 2.807E+03
  2.00000E-03 2.589E+03 2.539E+03
2.00680E-03 2.571E+03 2.521E+03
L2 2.00680E-03 3.577E+03 3.501E+03
  2.10895E-03 3.201E+03 3.134E+03
2.21630E-03 2.842E+03 2.786E+03
L1 2.21630E-03 3.241E+03 3.176E+03
  3.00000E-03 1.525E+03 1.500E+03
4.00000E-03 7.297E+02 7.181E+02
5.00000E-03 4.058E+02 3.988E+02
6.00000E-03 2.496E+02 2.446E+02
8.00000E-03 1.150E+02 1.118E+02
1.00000E-02 6.274E+01 6.037E+01
1.50000E-02 2.079E+01 1.938E+01
1.61046E-02 1.714E+01 1.585E+01
K 1.61046E-02 1.108E+02 5.200E+01
  2.00000E-02 6.386E+01 3.602E+01
3.00000E-02 2.157E+01 1.493E+01
4.00000E-02 9.818E+00 7.346E+00
5.00000E-02 5.306E+00 4.103E+00
6.00000E-02 3.214E+00 2.511E+00
8.00000E-02 1.481E+00 1.135E+00
1.00000E-01 8.365E-01 6.093E-01
1.50000E-01 3.369E-01 2.028E-01
2.00000E-01 2.042E-01 1.013E-01
3.00000E-01 1.247E-01 4.906E-02
4.00000E-01 9.811E-02 3.634E-02
5.00000E-01 8.443E-02 3.156E-02
6.00000E-01 7.570E-02 2.917E-02
8.00000E-01 6.447E-02 2.660E-02
1.00000E+00 5.714E-02 2.498E-02
1.25000E+00 5.072E-02 2.342E-02
1.50000E+00 4.630E-02 2.225E-02
2.00000E+00 4.079E-02 2.082E-02
3.00000E+00 3.569E-02 1.995E-02
4.00000E+00 3.365E-02 2.013E-02
5.00000E+00 3.286E-02 2.066E-02
6.00000E+00 3.268E-02 2.130E-02
8.00000E+00 3.317E-02 2.260E-02
1.00000E+01 3.414E-02 2.377E-02
1.50000E+01 3.683E-02 2.578E-02
2.00000E+01 3.927E-02 2.684E-02

Strontium
Z = 38


ASCII format
____________________________________

     Energy       μ/ρ        μen/ρ
      (MeV)      (cm2/g)     (cm2/g)
____________________________________

   1.00000E-03  3.494E+03  3.487E+03
   1.50000E-03  1.347E+03  1.341E+03
   1.93960E-03  7.207E+02  7.152E+02
L3 1.93960E-03  2.864E+03  2.807E+03
   2.00000E-03  2.589E+03  2.539E+03
   2.00680E-03  2.571E+03  2.521E+03
L2 2.00680E-03  3.577E+03  3.501E+03
   2.10895E-03  3.201E+03  3.134E+03
   2.21630E-03  2.842E+03  2.786E+03
L1 2.21630E-03  3.241E+03  3.176E+03
   3.00000E-03  1.525E+03  1.500E+03
   4.00000E-03  7.297E+02  7.181E+02
   5.00000E-03  4.058E+02  3.988E+02
   6.00000E-03  2.496E+02  2.446E+02
   8.00000E-03  1.150E+02  1.118E+02
   1.00000E-02  6.274E+01  6.037E+01
   1.50000E-02  2.079E+01  1.938E+01
   1.61046E-02  1.714E+01  1.585E+01
K  1.61046E-02  1.108E+02  5.200E+01
   2.00000E-02  6.386E+01  3.602E+01
   3.00000E-02  2.157E+01  1.493E+01
   4.00000E-02  9.818E+00  7.346E+00
   5.00000E-02  5.306E+00  4.103E+00
   6.00000E-02  3.214E+00  2.511E+00
   8.00000E-02  1.481E+00  1.135E+00
   1.00000E-01  8.365E-01  6.093E-01
   1.50000E-01  3.369E-01  2.028E-01
   2.00000E-01  2.042E-01  1.013E-01
   3.00000E-01  1.247E-01  4.906E-02
   4.00000E-01  9.811E-02  3.634E-02
   5.00000E-01  8.443E-02  3.156E-02
   6.00000E-01  7.570E-02  2.917E-02
   8.00000E-01  6.447E-02  2.660E-02
   1.00000E+00  5.714E-02  2.498E-02
   1.25000E+00  5.072E-02  2.342E-02
   1.50000E+00  4.630E-02  2.225E-02
   2.00000E+00  4.079E-02  2.082E-02
   3.00000E+00  3.569E-02  1.995E-02
   4.00000E+00  3.365E-02  2.013E-02
   5.00000E+00  3.286E-02  2.066E-02
   6.00000E+00  3.268E-02  2.130E-02
   8.00000E+00  3.317E-02  2.260E-02
   1.00000E+01  3.414E-02  2.377E-02
   1.50000E+01  3.683E-02  2.578E-02
   2.00000E+01  3.927E-02  2.684E-02
