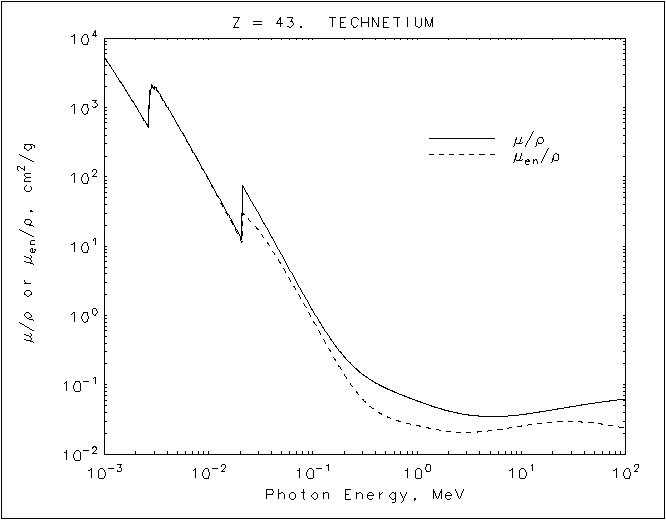

Technetium graph


Technetium
Z = 43


HTML table format


         Energy         μ/ρ         μen/ρ
   (MeV) (cm2/g)  (cm2/g)

  1.00000E-03 5.356E+03 5.348E+03
1.50000E-03 2.092E+03 2.085E+03
2.00000E-03 1.044E+03 1.037E+03
2.67690E-03 5.072E+02 5.014E+02
L3 2.67690E-03 1.812E+03 1.758E+03
  2.73443E-03 1.699E+03 1.648E+03
2.79320E-03 1.602E+03 1.555E+03
L2 2.79320E-03 2.223E+03 2.151E+03
  3.00000E-03 1.862E+03 1.805E+03
3.04250E-03 1.800E+03 1.745E+03
L1 3.04250E-03 2.059E+03 1.995E+03
  4.00000E-03 1.036E+03 1.009E+03
5.00000E-03 5.836E+02 5.694E+02
6.00000E-03 3.619E+02 3.530E+02
8.00000E-03 1.683E+02 1.635E+02
1.00000E-02 9.231E+01 8.908E+01
1.50000E-02 3.076E+01 2.898E+01
2.00000E-02 1.410E+01 1.290E+01
2.10440E-02 1.229E+01 1.117E+01
K 2.10440E-02 7.481E+01 3.014E+01
  3.00000E-02 2.993E+01 1.693E+01
4.00000E-02 1.381E+01 9.075E+00
5.00000E-02 7.521E+00 5.312E+00
6.00000E-02 4.571E+00 3.348E+00
8.00000E-02 2.099E+00 1.568E+00
1.00000E-01 1.169E+00 8.572E-01
1.50000E-01 4.449E-01 2.880E-01
2.00000E-01 2.534E-01 1.403E-01
3.00000E-01 1.418E-01 6.214E-02
4.00000E-01 1.066E-01 4.257E-02
5.00000E-01 8.968E-02 3.521E-02
6.00000E-01 7.935E-02 3.159E-02
8.00000E-01 6.674E-02 2.797E-02
1.00000E+00 5.876E-02 2.589E-02
1.25000E+00 5.197E-02 2.406E-02
1.50000E+00 4.740E-02 2.276E-02
2.00000E+00 4.189E-02 2.129E-02
3.00000E+00 3.705E-02 2.061E-02
4.00000E+00 3.532E-02 2.103E-02
5.00000E+00 3.482E-02 2.178E-02
6.00000E+00 3.487E-02 2.258E-02
8.00000E+00 3.578E-02 2.415E-02
1.00000E+01 3.712E-02 2.549E-02
1.50000E+01 4.055E-02 2.774E-02
2.00000E+01 4.353E-02 2.884E-02

Technetium
Z = 43


ASCII format
____________________________________

     Energy       μ/ρ        μen/ρ
      (MeV)      (cm2/g)     (cm2/g)
____________________________________

   1.00000E-03  5.356E+03  5.348E+03
   1.50000E-03  2.092E+03  2.085E+03
   2.00000E-03  1.044E+03  1.037E+03
   2.67690E-03  5.072E+02  5.014E+02
L3 2.67690E-03  1.812E+03  1.758E+03
   2.73443E-03  1.699E+03  1.648E+03
   2.79320E-03  1.602E+03  1.555E+03
L2 2.79320E-03  2.223E+03  2.151E+03
   3.00000E-03  1.862E+03  1.805E+03
   3.04250E-03  1.800E+03  1.745E+03
L1 3.04250E-03  2.059E+03  1.995E+03
   4.00000E-03  1.036E+03  1.009E+03
   5.00000E-03  5.836E+02  5.694E+02
   6.00000E-03  3.619E+02  3.530E+02
   8.00000E-03  1.683E+02  1.635E+02
   1.00000E-02  9.231E+01  8.908E+01
   1.50000E-02  3.076E+01  2.898E+01
   2.00000E-02  1.410E+01  1.290E+01
   2.10440E-02  1.229E+01  1.117E+01
K  2.10440E-02  7.481E+01  3.014E+01
   3.00000E-02  2.993E+01  1.693E+01
   4.00000E-02  1.381E+01  9.075E+00
   5.00000E-02  7.521E+00  5.312E+00
   6.00000E-02  4.571E+00  3.348E+00
   8.00000E-02  2.099E+00  1.568E+00
   1.00000E-01  1.169E+00  8.572E-01
   1.50000E-01  4.449E-01  2.880E-01
   2.00000E-01  2.534E-01  1.403E-01
   3.00000E-01  1.418E-01  6.214E-02
   4.00000E-01  1.066E-01  4.257E-02
   5.00000E-01  8.968E-02  3.521E-02
   6.00000E-01  7.935E-02  3.159E-02
   8.00000E-01  6.674E-02  2.797E-02
   1.00000E+00  5.876E-02  2.589E-02
   1.25000E+00  5.197E-02  2.406E-02
   1.50000E+00  4.740E-02  2.276E-02
   2.00000E+00  4.189E-02  2.129E-02
   3.00000E+00  3.705E-02  2.061E-02
   4.00000E+00  3.532E-02  2.103E-02
   5.00000E+00  3.482E-02  2.178E-02
   6.00000E+00  3.487E-02  2.258E-02
   8.00000E+00  3.578E-02  2.415E-02
   1.00000E+01  3.712E-02  2.549E-02
   1.50000E+01  4.055E-02  2.774E-02
   2.00000E+01  4.353E-02  2.884E-02
