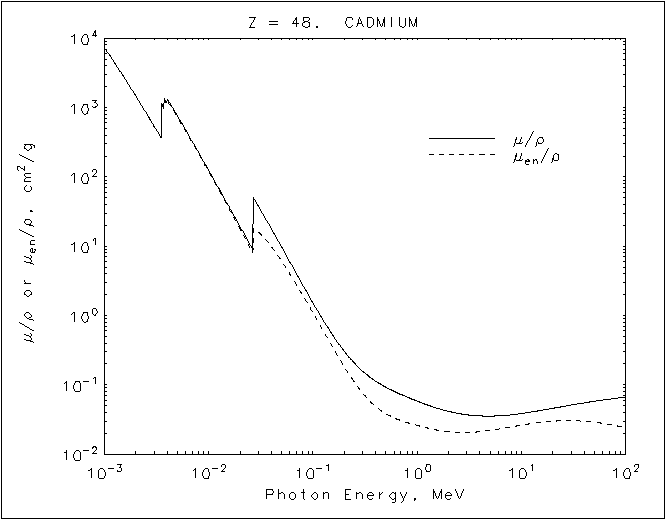

Cadmium graph


Cadmium
Z = 48


HTML table format


         Energy         μ/ρ         μen/ρ
   (MeV) (cm2/g)  (cm2/g)

  1.00000E-03 7.350E+03 7.340E+03
1.50000E-03 2.931E+03 2.922E+03
2.00000E-03 1.473E+03 1.466E+03
3.00000E-03 5.414E+02 5.350E+02
3.53750E-03 3.575E+02 3.517E+02
L3 3.53750E-03 1.152E+03 1.103E+03
  3.63101E-03 1.083E+03 1.036E+03
3.72700E-03 1.013E+03 9.715E+02
L2 3.72700E-03 1.389E+03 1.324E+03
  4.00000E-03 1.170E+03 1.118E+03
4.01800E-03 1.157E+03 1.106E+03
L1 4.01800E-03 1.324E+03 1.264E+03
  5.00000E-03 7.685E+02 7.383E+02
6.00000E-03 4.793E+02 4.619E+02
8.00000E-03 2.254E+02 2.174E+02
1.00000E-02 1.244E+02 1.197E+02
1.50000E-02 4.178E+01 3.952E+01
2.00000E-02 1.920E+01 1.776E+01
2.67112E-02 8.809E+00 7.863E+00
K 2.67112E-02 5.065E+01 1.821E+01
  3.00000E-02 3.765E+01 1.594E+01
4.00000E-02 1.778E+01 9.812E+00
5.00000E-02 9.779E+00 6.115E+00
6.00000E-02 5.975E+00 4.001E+00
8.00000E-02 2.751E+00 1.957E+00
1.00000E-01 1.524E+00 1.096E+00
1.50000E-01 5.593E-01 3.753E-01
2.00000E-01 3.038E-01 1.813E-01
3.00000E-01 1.571E-01 7.580E-02
4.00000E-01 1.129E-01 4.868E-02
5.00000E-01 9.250E-02 3.838E-02
6.00000E-01 8.064E-02 3.339E-02
8.00000E-01 6.670E-02 2.854E-02
1.00000E+00 5.826E-02 2.597E-02
1.25000E+00 5.129E-02 2.387E-02
1.50000E+00 4.673E-02 2.247E-02
2.00000E+00 4.139E-02 2.099E-02
3.00000E+00 3.698E-02 2.051E-02
4.00000E+00 3.559E-02 2.114E-02
5.00000E+00 3.536E-02 2.206E-02
6.00000E+00 3.563E-02 2.300E-02
8.00000E+00 3.691E-02 2.477E-02
1.00000E+01 3.853E-02 2.625E-02
1.50000E+01 4.253E-02 2.869E-02
2.00000E+01 4.587E-02 2.985E-02

Cadmium
Z = 48


ASCII format
____________________________________

     Energy       μ/ρ        μen/ρ
      (MeV)      (cm2/g)     (cm2/g)
____________________________________

   1.00000E-03  7.350E+03  7.340E+03
   1.50000E-03  2.931E+03  2.922E+03
   2.00000E-03  1.473E+03  1.466E+03
   3.00000E-03  5.414E+02  5.350E+02
   3.53750E-03  3.575E+02  3.517E+02
L3 3.53750E-03  1.152E+03  1.103E+03
   3.63101E-03  1.083E+03  1.036E+03
   3.72700E-03  1.013E+03  9.715E+02
L2 3.72700E-03  1.389E+03  1.324E+03
   4.00000E-03  1.170E+03  1.118E+03
   4.01800E-03  1.157E+03  1.106E+03
L1 4.01800E-03  1.324E+03  1.264E+03
   5.00000E-03  7.685E+02  7.383E+02
   6.00000E-03  4.793E+02  4.619E+02
   8.00000E-03  2.254E+02  2.174E+02
   1.00000E-02  1.244E+02  1.197E+02
   1.50000E-02  4.178E+01  3.952E+01
   2.00000E-02  1.920E+01  1.776E+01
   2.67112E-02  8.809E+00  7.863E+00
K  2.67112E-02  5.065E+01  1.821E+01
   3.00000E-02  3.765E+01  1.594E+01
   4.00000E-02  1.778E+01  9.812E+00
   5.00000E-02  9.779E+00  6.115E+00
   6.00000E-02  5.975E+00  4.001E+00
   8.00000E-02  2.751E+00  1.957E+00
   1.00000E-01  1.524E+00  1.096E+00
   1.50000E-01  5.593E-01  3.753E-01
   2.00000E-01  3.038E-01  1.813E-01
   3.00000E-01  1.571E-01  7.580E-02
   4.00000E-01  1.129E-01  4.868E-02
   5.00000E-01  9.250E-02  3.838E-02
   6.00000E-01  8.064E-02  3.339E-02
   8.00000E-01  6.670E-02  2.854E-02
   1.00000E+00  5.826E-02  2.597E-02
   1.25000E+00  5.129E-02  2.387E-02
   1.50000E+00  4.673E-02  2.247E-02
   2.00000E+00  4.139E-02  2.099E-02
   3.00000E+00  3.698E-02  2.051E-02
   4.00000E+00  3.559E-02  2.114E-02
   5.00000E+00  3.536E-02  2.206E-02
   6.00000E+00  3.563E-02  2.300E-02
   8.00000E+00  3.691E-02  2.477E-02
   1.00000E+01  3.853E-02  2.625E-02
   1.50000E+01  4.253E-02  2.869E-02
   2.00000E+01  4.587E-02  2.985E-02
