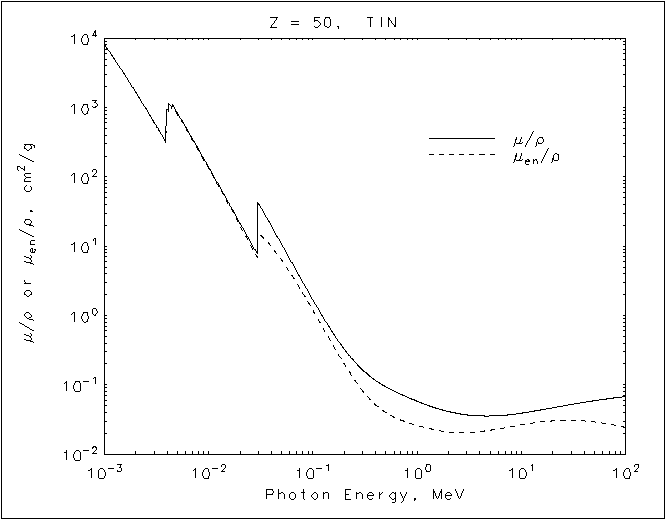

Tin graph


Tin
Z = 50


HTML table format


         Energy         μ/ρ         μen/ρ
   (MeV) (cm2/g)  (cm2/g)

  1.00000E-03 8.157E+03 8.144E+03
1.50000E-03 3.296E+03 3.287E+03
2.00000E-03 1.665E+03 1.657E+03
3.00000E-03 6.143E+02 6.077E+02
3.92880E-03 3.114E+02 3.058E+02
L3 3.92880E-03 9.285E+02 8.845E+02
  4.00000E-03 9.393E+02 8.945E+02
4.15610E-03 8.469E+02 8.074E+02
L2 4.15610E-03 1.145E+03 1.084E+03
  4.30764E-03 1.060E+03 1.002E+03
4.46470E-03 9.712E+02 9.221E+02
L1 4.46470E-03 1.117E+03 1.059E+03
  5.00000E-03 8.471E+02 8.064E+02
6.00000E-03 5.294E+02 5.065E+02
8.00000E-03 2.500E+02 2.400E+02
1.00000E-02 1.384E+02 1.327E+02
1.50000E-02 4.664E+01 4.413E+01
2.00000E-02 2.146E+01 1.990E+01
2.92001E-02 7.760E+00 6.876E+00
K 2.92001E-02 4.360E+01 1.514E+01
  3.00000E-02 4.121E+01 1.490E+01
4.00000E-02 1.942E+01 9.835E+00
5.00000E-02 1.070E+01 6.314E+00
6.00000E-02 6.564E+00 4.211E+00
8.00000E-02 3.029E+00 2.101E+00
1.00000E-01 1.676E+00 1.189E+00
1.50000E-01 6.091E-01 4.119E-01
2.00000E-01 3.260E-01 1.990E-01
3.00000E-01 1.639E-01 8.179E-02
4.00000E-01 1.156E-01 5.138E-02
5.00000E-01 9.374E-02 3.980E-02
6.00000E-01 8.113E-02 3.417E-02
8.00000E-01 6.662E-02 2.878E-02
1.00000E+00 5.800E-02 2.601E-02
1.25000E+00 5.095E-02 2.379E-02
1.50000E+00 4.638E-02 2.233E-02
2.00000E+00 4.112E-02 2.085E-02
3.00000E+00 3.686E-02 2.044E-02
4.00000E+00 3.561E-02 2.115E-02
5.00000E+00 3.548E-02 2.213E-02
6.00000E+00 3.583E-02 2.312E-02
8.00000E+00 3.724E-02 2.496E-02
1.00000E+01 3.895E-02 2.649E-02
1.50000E+01 4.315E-02 2.901E-02
2.00000E+01 4.662E-02 3.018E-02

Tin
Z = 50


ASCII format
____________________________________

     Energy       μ/ρ        μen/ρ
      (MeV)      (cm2/g)     (cm2/g)
____________________________________

   1.00000E-03  8.157E+03  8.144E+03
   1.50000E-03  3.296E+03  3.287E+03
   2.00000E-03  1.665E+03  1.657E+03
   3.00000E-03  6.143E+02  6.077E+02
   3.92880E-03  3.114E+02  3.058E+02
L3 3.92880E-03  9.285E+02  8.845E+02
   4.00000E-03  9.393E+02  8.945E+02
   4.15610E-03  8.469E+02  8.074E+02
L2 4.15610E-03  1.145E+03  1.084E+03
   4.30764E-03  1.060E+03  1.002E+03
   4.46470E-03  9.712E+02  9.221E+02
L1 4.46470E-03  1.117E+03  1.059E+03
   5.00000E-03  8.471E+02  8.064E+02
   6.00000E-03  5.294E+02  5.065E+02
   8.00000E-03  2.500E+02  2.400E+02
   1.00000E-02  1.384E+02  1.327E+02
   1.50000E-02  4.664E+01  4.413E+01
   2.00000E-02  2.146E+01  1.990E+01
   2.92001E-02  7.760E+00  6.876E+00
K  2.92001E-02  4.360E+01  1.514E+01
   3.00000E-02  4.121E+01  1.490E+01
   4.00000E-02  1.942E+01  9.835E+00
   5.00000E-02  1.070E+01  6.314E+00
   6.00000E-02  6.564E+00  4.211E+00
   8.00000E-02  3.029E+00  2.101E+00
   1.00000E-01  1.676E+00  1.189E+00
   1.50000E-01  6.091E-01  4.119E-01
   2.00000E-01  3.260E-01  1.990E-01
   3.00000E-01  1.639E-01  8.179E-02
   4.00000E-01  1.156E-01  5.138E-02
   5.00000E-01  9.374E-02  3.980E-02
   6.00000E-01  8.113E-02  3.417E-02
   8.00000E-01  6.662E-02  2.878E-02
   1.00000E+00  5.800E-02  2.601E-02
   1.25000E+00  5.095E-02  2.379E-02
   1.50000E+00  4.638E-02  2.233E-02
   2.00000E+00  4.112E-02  2.085E-02
   3.00000E+00  3.686E-02  2.044E-02
   4.00000E+00  3.561E-02  2.115E-02
   5.00000E+00  3.548E-02  2.213E-02
   6.00000E+00  3.583E-02  2.312E-02
   8.00000E+00  3.724E-02  2.496E-02
   1.00000E+01  3.895E-02  2.649E-02
   1.50000E+01  4.315E-02  2.901E-02
   2.00000E+01  4.662E-02  3.018E-02
