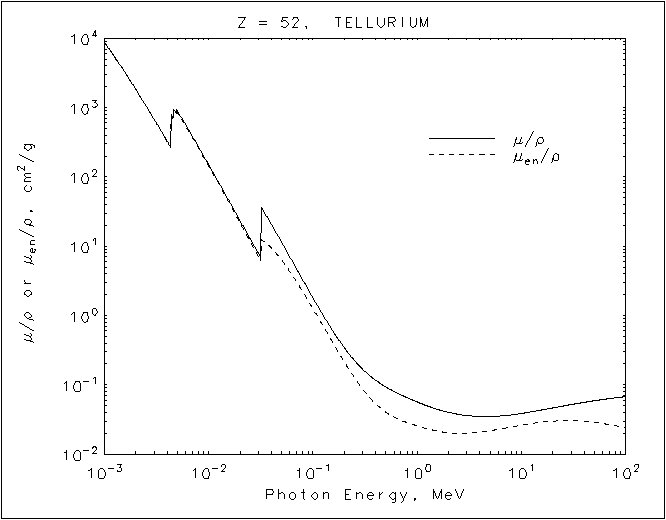

Tellurium graph


Tellurium
Z = 52


HTML table format


         Energy         μ/ρ         μen/ρ
   (MeV) (cm2/g)  (cm2/g)

  1.00000E-03 8.434E+03 8.419E+03
1.00300E-03 8.380E+03 8.365E+03
1.00600E-03 8.326E+03 8.311E+03
M1 1.00600E-03 8.684E+03 8.668E+03
  1.50000E-03 3.608E+03 3.598E+03
2.00000E-03 1.832E+03 1.824E+03
3.00000E-03 6.792E+02 6.726E+02
4.00000E-03 3.297E+02 3.240E+02
4.34140E-03 2.678E+02 2.625E+02
L3 4.34140E-03 7.882E+02 7.460E+02
  4.47465E-03 7.504E+02 7.078E+02
4.61200E-03 6.995E+02 6.629E+02
L2 4.61200E-03 9.445E+02 8.880E+02
  4.77280E-03 8.782E+02 8.237E+02
4.93920E-03 8.062E+02 7.600E+02
L1 4.93920E-03 9.292E+02 8.744E+02
  5.00000E-03 9.014E+02 8.487E+02
6.00000E-03 5.721E+02 5.423E+02
8.00000E-03 2.702E+02 2.578E+02
1.00000E-02 1.501E+02 1.433E+02
1.50000E-02 5.078E+01 4.802E+01
2.00000E-02 2.341E+01 2.175E+01
3.00000E-02 7.878E+00 6.997E+00
3.18138E-02 6.738E+00 5.929E+00
K 3.18138E-02 3.719E+01 1.251E+01
  4.00000E-02 2.064E+01 9.480E+00
5.00000E-02 1.145E+01 6.330E+00
6.00000E-02 7.041E+00 4.306E+00
8.00000E-02 3.255E+00 2.195E+00
1.00000E-01 1.801E+00 1.256E+00
1.50000E-01 6.492E-01 4.409E-01
2.00000E-01 3.429E-01 2.132E-01
3.00000E-01 1.679E-01 8.646E-02
4.00000E-01 1.163E-01 5.326E-02
5.00000E-01 9.328E-02 4.055E-02
6.00000E-01 8.022E-02 3.440E-02
8.00000E-01 6.538E-02 2.854E-02
1.00000E+00 5.669E-02 2.559E-02
1.25000E+00 4.967E-02 2.327E-02
1.50000E+00 4.518E-02 2.179E-02
2.00000E+00 4.009E-02 2.033E-02
3.00000E+00 3.606E-02 1.998E-02
4.00000E+00 3.494E-02 2.075E-02
5.00000E+00 3.492E-02 2.177E-02
6.00000E+00 3.534E-02 2.279E-02
8.00000E+00 3.683E-02 2.466E-02
1.00000E+01 3.860E-02 2.620E-02
1.50000E+01 4.290E-02 2.873E-02
2.00000E+01 4.642E-02 2.989E-02

Tellurium
Z = 52


ASCII format
____________________________________

     Energy       μ/ρ        μen/ρ
      (MeV)      (cm2/g)     (cm2/g)
____________________________________

   1.00000E-03  8.434E+03  8.419E+03
   1.00300E-03  8.380E+03  8.365E+03
   1.00600E-03  8.326E+03  8.311E+03
M1 1.00600E-03  8.684E+03  8.668E+03
   1.50000E-03  3.608E+03  3.598E+03
   2.00000E-03  1.832E+03  1.824E+03
   3.00000E-03  6.792E+02  6.726E+02
   4.00000E-03  3.297E+02  3.240E+02
   4.34140E-03  2.678E+02  2.625E+02
L3 4.34140E-03  7.882E+02  7.460E+02
   4.47465E-03  7.504E+02  7.078E+02
   4.61200E-03  6.995E+02  6.629E+02
L2 4.61200E-03  9.445E+02  8.880E+02
   4.77280E-03  8.782E+02  8.237E+02
   4.93920E-03  8.062E+02  7.600E+02
L1 4.93920E-03  9.292E+02  8.744E+02
   5.00000E-03  9.014E+02  8.487E+02
   6.00000E-03  5.721E+02  5.423E+02
   8.00000E-03  2.702E+02  2.578E+02
   1.00000E-02  1.501E+02  1.433E+02
   1.50000E-02  5.078E+01  4.802E+01
   2.00000E-02  2.341E+01  2.175E+01
   3.00000E-02  7.878E+00  6.997E+00
   3.18138E-02  6.738E+00  5.929E+00
K  3.18138E-02  3.719E+01  1.251E+01
   4.00000E-02  2.064E+01  9.480E+00
   5.00000E-02  1.145E+01  6.330E+00
   6.00000E-02  7.041E+00  4.306E+00
   8.00000E-02  3.255E+00  2.195E+00
   1.00000E-01  1.801E+00  1.256E+00
   1.50000E-01  6.492E-01  4.409E-01
   2.00000E-01  3.429E-01  2.132E-01
   3.00000E-01  1.679E-01  8.646E-02
   4.00000E-01  1.163E-01  5.326E-02
   5.00000E-01  9.328E-02  4.055E-02
   6.00000E-01  8.022E-02  3.440E-02
   8.00000E-01  6.538E-02  2.854E-02
   1.00000E+00  5.669E-02  2.559E-02
   1.25000E+00  4.967E-02  2.327E-02
   1.50000E+00  4.518E-02  2.179E-02
   2.00000E+00  4.009E-02  2.033E-02
   3.00000E+00  3.606E-02  1.998E-02
   4.00000E+00  3.494E-02  2.075E-02
   5.00000E+00  3.492E-02  2.177E-02
   6.00000E+00  3.534E-02  2.279E-02
   8.00000E+00  3.683E-02  2.466E-02
   1.00000E+01  3.860E-02  2.620E-02
   1.50000E+01  4.290E-02  2.873E-02
   2.00000E+01  4.642E-02  2.989E-02
