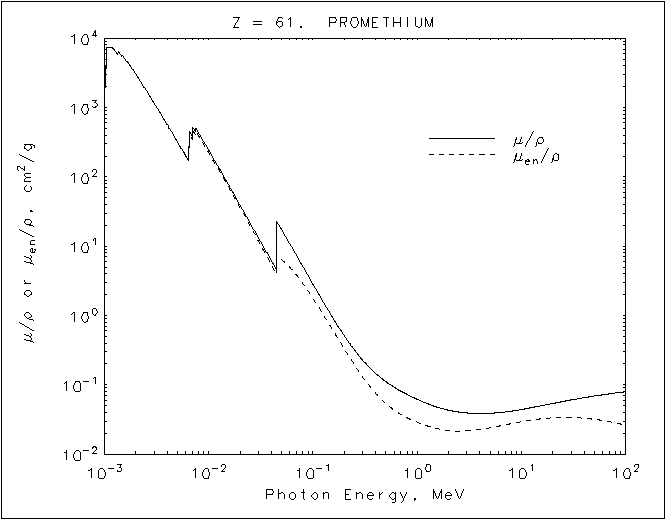

Promethium graph


Promethium
Z = 61


HTML table format


         Energy         μ/ρ         μen/ρ
   (MeV) (cm2/g)  (cm2/g)

  1.00000E-03 2.056E+03 2.046E+03
1.01336E-03 2.007E+03 1.997E+03
1.02690E-03 1.959E+03 1.949E+03
M5 1.02690E-03 2.729E+03 2.715E+03
  1.03913E-03 3.894E+03 3.874E+03
1.05150E-03 5.830E+03 5.801E+03
M4 1.05150E-03 7.242E+03 7.205E+03
  1.19448E-03 7.232E+03 7.196E+03
1.35690E-03 5.687E+03 5.660E+03
M3 1.35690E-03 6.555E+03 6.524E+03
  1.41299E-03 5.985E+03 5.956E+03
1.47140E-03 5.466E+03 5.439E+03
M2 1.47140E-03 5.799E+03 5.770E+03
  1.50000E-03 5.553E+03 5.526E+03
1.65300E-03 4.497E+03 4.474E+03
M1 1.65300E-03 4.699E+03 4.676E+03
  2.00000E-03 3.048E+03 3.031E+03
3.00000E-03 1.162E+03 1.152E+03
4.00000E-03 5.709E+02 5.633E+02
5.00000E-03 3.260E+02 3.196E+02
6.00000E-03 2.053E+02 1.998E+02
6.45930E-03 1.702E+02 1.649E+02
L3 6.45930E-03 4.678E+02 4.267E+02
  6.73036E-03 4.226E+02 3.864E+02
7.01280E-03 3.805E+02 3.487E+02
L2 7.01280E-03 5.174E+02 4.657E+02
  7.21737E-03 4.884E+02 4.359E+02
7.42790E-03 4.494E+02 4.062E+02
L1 7.42790E-03 5.184E+02 4.669E+02
  8.00000E-03 4.314E+02 3.908E+02
1.00000E-02 2.440E+02 2.240E+02
1.50000E-02 8.411E+01 7.799E+01
2.00000E-02 3.916E+01 3.614E+01
3.00000E-02 1.327E+01 1.193E+01
4.00000E-02 6.181E+00 5.366E+00
4.51840E-02 4.491E+00 3.816E+00
K 4.51840E-02 2.265E+01 6.930E+00
  5.00000E-02 1.735E+01 6.363E+00
6.00000E-02 1.087E+01 4.989E+00
8.00000E-02 5.107E+00 2.904E+00
1.00000E-01 2.840E+00 1.776E+00
1.50000E-01 1.005E+00 6.699E-01
2.00000E-01 5.098E-01 3.302E-01
3.00000E-01 2.273E-01 1.301E-01
4.00000E-01 1.462E-01 7.517E-02
5.00000E-01 1.115E-01 5.369E-02
6.00000E-01 9.276E-02 4.323E-02
8.00000E-01 7.280E-02 3.349E-02
1.00000E+00 6.188E-02 2.889E-02
1.25000E+00 5.350E-02 2.553E-02
1.50000E+00 4.849E-02 2.360E-02
2.00000E+00 4.308E-02 2.184E-02
3.00000E+00 3.925E-02 2.166E-02
4.00000E+00 3.849E-02 2.273E-02
5.00000E+00 3.882E-02 2.405E-02
6.00000E+00 3.959E-02 2.532E-02
8.00000E+00 4.169E-02 2.754E-02
1.00000E+01 4.401E-02 2.933E-02
1.50000E+01 4.946E-02 3.222E-02
2.00000E+01 5.380E-02 3.344E-02

Promethium
Z = 61


ASCII format
____________________________________

     Energy       μ/ρ        μen/ρ
      (MeV)      (cm2/g)     (cm2/g)
____________________________________

   1.00000E-03  2.056E+03  2.046E+03
   1.01336E-03  2.007E+03  1.997E+03
   1.02690E-03  1.959E+03  1.949E+03
M5 1.02690E-03  2.729E+03  2.715E+03
   1.03913E-03  3.894E+03  3.874E+03
   1.05150E-03  5.830E+03  5.801E+03
M4 1.05150E-03  7.242E+03  7.205E+03
   1.19448E-03  7.232E+03  7.196E+03
   1.35690E-03  5.687E+03  5.660E+03
M3 1.35690E-03  6.555E+03  6.524E+03
   1.41299E-03  5.985E+03  5.956E+03
   1.47140E-03  5.466E+03  5.439E+03
M2 1.47140E-03  5.799E+03  5.770E+03
   1.50000E-03  5.553E+03  5.526E+03
   1.65300E-03  4.497E+03  4.474E+03
M1 1.65300E-03  4.699E+03  4.676E+03
   2.00000E-03  3.048E+03  3.031E+03
   3.00000E-03  1.162E+03  1.152E+03
   4.00000E-03  5.709E+02  5.633E+02
   5.00000E-03  3.260E+02  3.196E+02
   6.00000E-03  2.053E+02  1.998E+02
   6.45930E-03  1.702E+02  1.649E+02
L3 6.45930E-03  4.678E+02  4.267E+02
   6.73036E-03  4.226E+02  3.864E+02
   7.01280E-03  3.805E+02  3.487E+02
L2 7.01280E-03  5.174E+02  4.657E+02
   7.21737E-03  4.884E+02  4.359E+02
   7.42790E-03  4.494E+02  4.062E+02
L1 7.42790E-03  5.184E+02  4.669E+02
   8.00000E-03  4.314E+02  3.908E+02
   1.00000E-02  2.440E+02  2.240E+02
   1.50000E-02  8.411E+01  7.799E+01
   2.00000E-02  3.916E+01  3.614E+01
   3.00000E-02  1.327E+01  1.193E+01
   4.00000E-02  6.181E+00  5.366E+00
   4.51840E-02  4.491E+00  3.816E+00
K  4.51840E-02  2.265E+01  6.930E+00
   5.00000E-02  1.735E+01  6.363E+00
   6.00000E-02  1.087E+01  4.989E+00
   8.00000E-02  5.107E+00  2.904E+00
   1.00000E-01  2.840E+00  1.776E+00
   1.50000E-01  1.005E+00  6.699E-01
   2.00000E-01  5.098E-01  3.302E-01
   3.00000E-01  2.273E-01  1.301E-01
   4.00000E-01  1.462E-01  7.517E-02
   5.00000E-01  1.115E-01  5.369E-02
   6.00000E-01  9.276E-02  4.323E-02
   8.00000E-01  7.280E-02  3.349E-02
   1.00000E+00  6.188E-02  2.889E-02
   1.25000E+00  5.350E-02  2.553E-02
   1.50000E+00  4.849E-02  2.360E-02
   2.00000E+00  4.308E-02  2.184E-02
   3.00000E+00  3.925E-02  2.166E-02
   4.00000E+00  3.849E-02  2.273E-02
   5.00000E+00  3.882E-02  2.405E-02
   6.00000E+00  3.959E-02  2.532E-02
   8.00000E+00  4.169E-02  2.754E-02
   1.00000E+01  4.401E-02  2.933E-02
   1.50000E+01  4.946E-02  3.222E-02
   2.00000E+01  5.380E-02  3.344E-02
