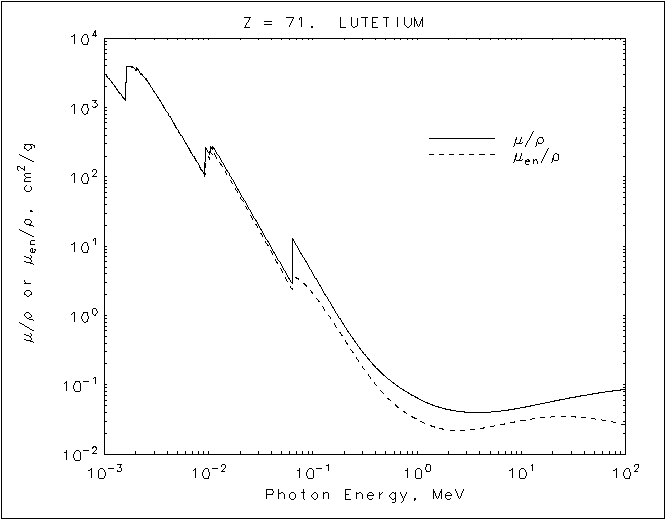

Lutetium graph


Lutetium
Z = 71


HTML table format


         Energy         μ/ρ         μen/ρ
   (MeV) (cm2/g)  (cm2/g)

  1.00000E-03 3.187E+03 3.175E+03
1.50000E-03 1.424E+03 1.413E+03
1.58850E-03 1.264E+03 1.253E+03
M5 1.58850E-03 1.597E+03 1.581E+03
  1.61375E-03 2.302E+03 2.273E+03
1.63940E-03 3.442E+03 3.396E+03
M4 1.63940E-03 3.935E+03 3.881E+03
  2.00000E-03 3.452E+03 3.406E+03
2.02360E-03 3.352E+03 3.307E+03
M3 2.02360E-03 3.890E+03 3.838E+03
  2.14019E-03 3.397E+03 3.352E+03
2.26350E-03 2.969E+03 2.931E+03
M2 2.26350E-03 3.155E+03 3.115E+03
  2.37462E-03 2.826E+03 2.790E+03
2.49120E-03 2.531E+03 2.499E+03
M1 2.49120E-03 2.640E+03 2.607E+03
  3.00000E-03 1.710E+03 1.688E+03
4.00000E-03 8.560E+02 8.430E+02
5.00000E-03 4.934E+02 4.839E+02
6.00000E-03 3.129E+02 3.051E+02
8.00000E-03 1.513E+02 1.456E+02
9.24410E-03 1.049E+02 9.994E+01
L3 9.24410E-03 2.703E+02 2.324E+02
  1.00000E-02 2.211E+02 1.916E+02
1.03486E-02 2.019E+02 1.756E+02
L2 1.03486E-02 2.757E+02 2.310E+02
  1.06063E-02 2.676E+02 2.190E+02
1.08704E-02 2.450E+02 2.065E+02
L1 1.08704E-02 2.826E+02 2.369E+02
  1.50000E-02 1.247E+02 1.084E+02
2.00000E-02 5.881E+01 5.206E+01
3.00000E-02 2.023E+01 1.791E+01
4.00000E-02 9.472E+00 8.242E+00
5.00000E-02 5.279E+00 4.480E+00
6.00000E-02 3.297E+00 2.712E+00
6.33138E-02 2.874E+00 2.339E+00
K 6.33138E-02 1.305E+01 3.770E+00
  8.00000E-02 7.161E+00 3.000E+00
1.00000E-01 4.033E+00 2.067E+00
1.50000E-01 1.433E+00 8.805E-01
2.00000E-01 7.130E-01 4.534E-01
3.00000E-01 2.981E-01 1.803E-01
4.00000E-01 1.799E-01 1.009E-01
5.00000E-01 1.305E-01 6.886E-02
6.00000E-01 1.046E-01 5.306E-02
8.00000E-01 7.829E-02 3.836E-02
1.00000E+00 6.478E-02 3.161E-02
1.25000E+00 5.496E-02 2.695E-02
1.50000E+00 4.941E-02 2.441E-02
2.00000E+00 4.385E-02 2.228E-02
3.00000E+00 4.028E-02 2.212E-02
4.00000E+00 3.985E-02 2.337E-02
5.00000E+00 4.045E-02 2.481E-02
6.00000E+00 4.147E-02 2.618E-02
8.00000E+00 4.398E-02 2.853E-02
1.00000E+01 4.664E-02 3.038E-02
1.50000E+01 5.282E-02 3.329E-02
2.00000E+01 5.773E-02 3.446E-02

Lutetium
Z = 71


ASCII format
____________________________________

     Energy       μ/ρ        μen/ρ
      (MeV)      (cm2/g)     (cm2/g)
____________________________________

   1.00000E-03  3.187E+03  3.175E+03
   1.50000E-03  1.424E+03  1.413E+03
   1.58850E-03  1.264E+03  1.253E+03
M5 1.58850E-03  1.597E+03  1.581E+03
   1.61375E-03  2.302E+03  2.273E+03
   1.63940E-03  3.442E+03  3.396E+03
M4 1.63940E-03  3.935E+03  3.881E+03
   2.00000E-03  3.452E+03  3.406E+03
   2.02360E-03  3.352E+03  3.307E+03
M3 2.02360E-03  3.890E+03  3.838E+03
   2.14019E-03  3.397E+03  3.352E+03
   2.26350E-03  2.969E+03  2.931E+03
M2 2.26350E-03  3.155E+03  3.115E+03
   2.37462E-03  2.826E+03  2.790E+03
   2.49120E-03  2.531E+03  2.499E+03
M1 2.49120E-03  2.640E+03  2.607E+03
   3.00000E-03  1.710E+03  1.688E+03
   4.00000E-03  8.560E+02  8.430E+02
   5.00000E-03  4.934E+02  4.839E+02
   6.00000E-03  3.129E+02  3.051E+02
   8.00000E-03  1.513E+02  1.456E+02
   9.24410E-03  1.049E+02  9.994E+01
L3 9.24410E-03  2.703E+02  2.324E+02
   1.00000E-02  2.211E+02  1.916E+02
   1.03486E-02  2.019E+02  1.756E+02
L2 1.03486E-02  2.757E+02  2.310E+02
   1.06063E-02  2.676E+02  2.190E+02
   1.08704E-02  2.450E+02  2.065E+02
L1 1.08704E-02  2.826E+02  2.369E+02
   1.50000E-02  1.247E+02  1.084E+02
   2.00000E-02  5.881E+01  5.206E+01
   3.00000E-02  2.023E+01  1.791E+01
   4.00000E-02  9.472E+00  8.242E+00
   5.00000E-02  5.279E+00  4.480E+00
   6.00000E-02  3.297E+00  2.712E+00
   6.33138E-02  2.874E+00  2.339E+00
K  6.33138E-02  1.305E+01  3.770E+00
   8.00000E-02  7.161E+00  3.000E+00
   1.00000E-01  4.033E+00  2.067E+00
   1.50000E-01  1.433E+00  8.805E-01
   2.00000E-01  7.130E-01  4.534E-01
   3.00000E-01  2.981E-01  1.803E-01
   4.00000E-01  1.799E-01  1.009E-01
   5.00000E-01  1.305E-01  6.886E-02
   6.00000E-01  1.046E-01  5.306E-02
   8.00000E-01  7.829E-02  3.836E-02
   1.00000E+00  6.478E-02  3.161E-02
   1.25000E+00  5.496E-02  2.695E-02
   1.50000E+00  4.941E-02  2.441E-02
   2.00000E+00  4.385E-02  2.228E-02
   3.00000E+00  4.028E-02  2.212E-02
   4.00000E+00  3.985E-02  2.337E-02
   5.00000E+00  4.045E-02  2.481E-02
   6.00000E+00  4.147E-02  2.618E-02
   8.00000E+00  4.398E-02  2.853E-02
   1.00000E+01  4.664E-02  3.038E-02
   1.50000E+01  5.282E-02  3.329E-02
   2.00000E+01  5.773E-02  3.446E-02
