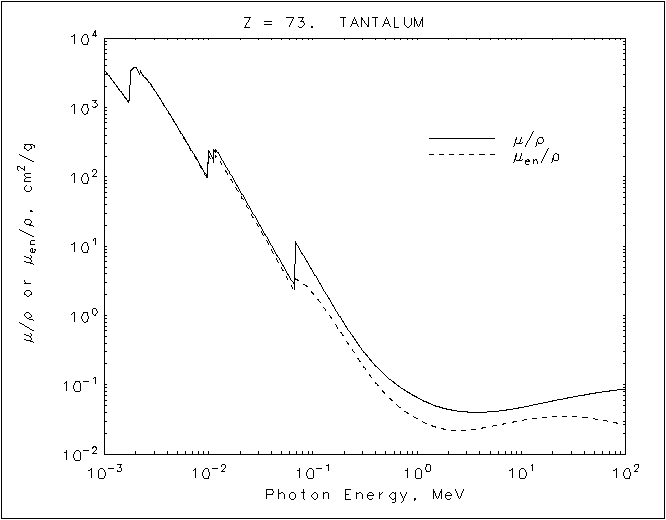

Tantalum graph


Tantalum
Z = 73


HTML table format


         Energy         μ/ρ         μen/ρ
   (MeV) (cm2/g)  (cm2/g)

  1.00000E-03 3.510E+03 3.498E+03
1.50000E-03 1.566E+03 1.555E+03
1.73510E-03 1.154E+03 1.144E+03
M5 1.73510E-03 1.417E+03 1.401E+03
  1.76391E-03 2.053E+03 2.024E+03
1.79320E-03 3.082E+03 3.034E+03
M4 1.79320E-03 3.421E+03 3.367E+03
  2.00000E-03 3.771E+03 3.711E+03
2.19400E-03 2.985E+03 2.939E+03
M3 2.19400E-03 3.464E+03 3.411E+03
  2.32730E-03 3.003E+03 2.957E+03
2.46870E-03 2.604E+03 2.566E+03
M2 2.46870E-03 2.768E+03 2.727E+03
  2.58558E-03 2.486E+03 2.449E+03
2.70800E-03 2.233E+03 2.201E+03
M1 2.70800E-03 2.329E+03 2.296E+03
  3.00000E-03 1.838E+03 1.812E+03
4.00000E-03 9.222E+02 9.073E+02
5.00000E-03 5.328E+02 5.223E+02
6.00000E-03 3.382E+02 3.299E+02
8.00000E-03 1.639E+02 1.579E+02
9.88110E-03 9.599E+01 9.117E+01
L3 9.88110E-03 2.443E+02 2.073E+02
  1.00000E-02 2.379E+02 2.021E+02
1.11361E-02 1.791E+02 1.540E+02
L2 1.11361E-02 2.449E+02 2.018E+02
  1.14055E-02 2.393E+02 1.917E+02
1.16815E-02 2.182E+02 1.811E+02
L1 1.16815E-02 2.518E+02 2.077E+02
  1.50000E-02 1.340E+02 1.143E+02
2.00000E-02 6.334E+01 5.532E+01
3.00000E-02 2.187E+01 1.923E+01
4.00000E-02 1.025E+01 8.899E+00
5.00000E-02 5.717E+00 4.854E+00
6.00000E-02 3.569E+00 2.947E+00
6.74164E-02 2.652E+00 2.139E+00
K 6.74164E-02 1.180E+01 3.379E+00
  8.00000E-02 7.587E+00 2.924E+00
1.00000E-01 4.302E+00 2.092E+00
1.50000E-01 1.531E+00 9.188E-01
2.00000E-01 7.598E-01 4.784E-01
3.00000E-01 3.149E-01 1.915E-01
4.00000E-01 1.881E-01 1.069E-01
5.00000E-01 1.352E-01 7.248E-02
6.00000E-01 1.076E-01 5.545E-02
8.00000E-01 7.981E-02 3.960E-02
1.00000E+00 6.567E-02 3.235E-02
1.25000E+00 5.545E-02 2.736E-02
1.50000E+00 4.977E-02 2.468E-02
2.00000E+00 4.413E-02 2.245E-02
3.00000E+00 4.057E-02 2.227E-02
4.00000E+00 4.018E-02 2.354E-02
5.00000E+00 4.082E-02 2.499E-02
6.00000E+00 4.188E-02 2.638E-02
8.00000E+00 4.446E-02 2.874E-02
1.00000E+01 4.717E-02 3.058E-02
1.50000E+01 5.350E-02 3.349E-02
2.00000E+01 5.852E-02 3.464E-02

Tantalum
Z = 73


ASCII format
____________________________________

     Energy       μ/ρ        μen/ρ
      (MeV)      (cm2/g)     (cm2/g)
____________________________________

   1.00000E-03  3.510E+03  3.498E+03
   1.50000E-03  1.566E+03  1.555E+03
   1.73510E-03  1.154E+03  1.144E+03
M5 1.73510E-03  1.417E+03  1.401E+03
   1.76391E-03  2.053E+03  2.024E+03
   1.79320E-03  3.082E+03  3.034E+03
M4 1.79320E-03  3.421E+03  3.367E+03
   2.00000E-03  3.771E+03  3.711E+03
   2.19400E-03  2.985E+03  2.939E+03
M3 2.19400E-03  3.464E+03  3.411E+03
   2.32730E-03  3.003E+03  2.957E+03
   2.46870E-03  2.604E+03  2.566E+03
M2 2.46870E-03  2.768E+03  2.727E+03
   2.58558E-03  2.486E+03  2.449E+03
   2.70800E-03  2.233E+03  2.201E+03
M1 2.70800E-03  2.329E+03  2.296E+03
   3.00000E-03  1.838E+03  1.812E+03
   4.00000E-03  9.222E+02  9.073E+02
   5.00000E-03  5.328E+02  5.223E+02
   6.00000E-03  3.382E+02  3.299E+02
   8.00000E-03  1.639E+02  1.579E+02
   9.88110E-03  9.599E+01  9.117E+01
L3 9.88110E-03  2.443E+02  2.073E+02
   1.00000E-02  2.379E+02  2.021E+02
   1.11361E-02  1.791E+02  1.540E+02
L2 1.11361E-02  2.449E+02  2.018E+02
   1.14055E-02  2.393E+02  1.917E+02
   1.16815E-02  2.182E+02  1.811E+02
L1 1.16815E-02  2.518E+02  2.077E+02
   1.50000E-02  1.340E+02  1.143E+02
   2.00000E-02  6.334E+01  5.532E+01
   3.00000E-02  2.187E+01  1.923E+01
   4.00000E-02  1.025E+01  8.899E+00
   5.00000E-02  5.717E+00  4.854E+00
   6.00000E-02  3.569E+00  2.947E+00
   6.74164E-02  2.652E+00  2.139E+00
K  6.74164E-02  1.180E+01  3.379E+00
   8.00000E-02  7.587E+00  2.924E+00
   1.00000E-01  4.302E+00  2.092E+00
   1.50000E-01  1.531E+00  9.188E-01
   2.00000E-01  7.598E-01  4.784E-01
   3.00000E-01  3.149E-01  1.915E-01
   4.00000E-01  1.881E-01  1.069E-01
   5.00000E-01  1.352E-01  7.248E-02
   6.00000E-01  1.076E-01  5.545E-02
   8.00000E-01  7.981E-02  3.960E-02
   1.00000E+00  6.567E-02  3.235E-02
   1.25000E+00  5.545E-02  2.736E-02
   1.50000E+00  4.977E-02  2.468E-02
   2.00000E+00  4.413E-02  2.245E-02
   3.00000E+00  4.057E-02  2.227E-02
   4.00000E+00  4.018E-02  2.354E-02
   5.00000E+00  4.082E-02  2.499E-02
   6.00000E+00  4.188E-02  2.638E-02
   8.00000E+00  4.446E-02  2.874E-02
   1.00000E+01  4.717E-02  3.058E-02
   1.50000E+01  5.350E-02  3.349E-02
   2.00000E+01  5.852E-02  3.464E-02
