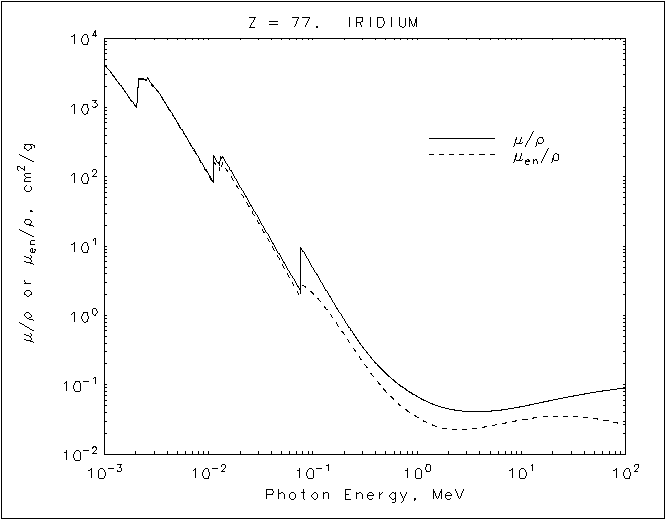

Iridium graph


Iridium
Z = 77


HTML table format


         Energy         μ/ρ         μen/ρ
   (MeV) (cm2/g)  (cm2/g)

  1.00000E-03 4.243E+03 4.230E+03
1.50000E-03 1.898E+03 1.886E+03
2.00000E-03 1.032E+03 1.021E+03
2.04040E-03 9.882E+02 9.771E+02
M5 2.04040E-03 1.066E+03 1.053E+03
  2.07790E-03 1.492E+03 1.466E+03
2.11610E-03 2.478E+03 2.429E+03
M4 2.11610E-03 2.608E+03 2.556E+03
  2.32326E-03 2.621E+03 2.566E+03
2.55070E-03 2.424E+03 2.376E+03
M3 2.55070E-03 2.800E+03 2.744E+03
  2.72382E-03 2.393E+03 2.345E+03
2.90870E-03 2.041E+03 2.002E+03
M2 2.90870E-03 2.166E+03 2.125E+03
  3.00000E-03 2.011E+03 1.973E+03
3.17370E-03 1.767E+03 1.734E+03
M1 3.17370E-03 1.843E+03 1.809E+03
  4.00000E-03 1.063E+03 1.043E+03
5.00000E-03 6.178E+02 6.047E+02
6.00000E-03 3.935E+02 3.837E+02
8.00000E-03 1.914E+02 1.846E+02
1.00000E-02 1.090E+02 1.038E+02
1.12154E-02 8.155E+01 7.695E+01
L3 1.12154E-02 2.038E+02 1.681E+02
  1.19928E-02 1.702E+02 1.418E+02
1.28241E-02 1.426E+02 1.199E+02
L2 1.28241E-02 1.959E+02 1.559E+02
  1.31179E-02 1.933E+02 1.486E+02
1.34185E-02 1.756E+02 1.409E+02
L1 1.34185E-02 2.025E+02 1.613E+02
  1.50000E-02 1.530E+02 1.244E+02
2.00000E-02 7.317E+01 6.179E+01
3.00000E-02 2.546E+01 2.198E+01
4.00000E-02 1.199E+01 1.030E+01
5.00000E-02 6.693E+00 5.667E+00
6.00000E-02 4.176E+00 3.460E+00
7.61110E-02 2.284E+00 1.810E+00
K 7.61110E-02 9.728E+00 2.758E+00
  8.00000E-02 8.585E+00 2.694E+00
1.00000E-01 4.855E+00 2.093E+00
1.50000E-01 1.740E+00 9.903E-01
2.00000E-01 8.628E-01 5.290E-01
3.00000E-01 3.525E-01 2.155E-01
4.00000E-01 2.068E-01 1.199E-01
5.00000E-01 1.463E-01 8.054E-02
6.00000E-01 1.149E-01 6.088E-02
8.00000E-01 8.357E-02 4.250E-02
1.00000E+00 6.794E-02 3.412E-02
1.25000E+00 5.688E-02 2.843E-02
1.50000E+00 5.083E-02 2.541E-02
2.00000E+00 4.501E-02 2.295E-02
3.00000E+00 4.139E-02 2.269E-02
4.00000E+00 4.104E-02 2.398E-02
5.00000E+00 4.174E-02 2.546E-02
6.00000E+00 4.286E-02 2.687E-02
8.00000E+00 4.558E-02 2.927E-02
1.00000E+01 4.844E-02 3.115E-02
1.50000E+01 5.502E-02 3.405E-02
2.00000E+01 6.024E-02 3.516E-02

Iridium
Z = 77


ASCII format
____________________________________

     Energy       μ/ρ        μen/ρ
      (MeV)      (cm2/g)     (cm2/g)
____________________________________

   1.00000E-03  4.243E+03  4.230E+03
   1.50000E-03  1.898E+03  1.886E+03
   2.00000E-03  1.032E+03  1.021E+03
   2.04040E-03  9.882E+02  9.771E+02
M5 2.04040E-03  1.066E+03  1.053E+03
   2.07790E-03  1.492E+03  1.466E+03
   2.11610E-03  2.478E+03  2.429E+03
M4 2.11610E-03  2.608E+03  2.556E+03
   2.32326E-03  2.621E+03  2.566E+03
   2.55070E-03  2.424E+03  2.376E+03
M3 2.55070E-03  2.800E+03  2.744E+03
   2.72382E-03  2.393E+03  2.345E+03
   2.90870E-03  2.041E+03  2.002E+03
M2 2.90870E-03  2.166E+03  2.125E+03
   3.00000E-03  2.011E+03  1.973E+03
   3.17370E-03  1.767E+03  1.734E+03
M1 3.17370E-03  1.843E+03  1.809E+03
   4.00000E-03  1.063E+03  1.043E+03
   5.00000E-03  6.178E+02  6.047E+02
   6.00000E-03  3.935E+02  3.837E+02
   8.00000E-03  1.914E+02  1.846E+02
   1.00000E-02  1.090E+02  1.038E+02
   1.12154E-02  8.155E+01  7.695E+01
L3 1.12154E-02  2.038E+02  1.681E+02
   1.19928E-02  1.702E+02  1.418E+02
   1.28241E-02  1.426E+02  1.199E+02
L2 1.28241E-02  1.959E+02  1.559E+02
   1.31179E-02  1.933E+02  1.486E+02
   1.34185E-02  1.756E+02  1.409E+02
L1 1.34185E-02  2.025E+02  1.613E+02
   1.50000E-02  1.530E+02  1.244E+02
   2.00000E-02  7.317E+01  6.179E+01
   3.00000E-02  2.546E+01  2.198E+01
   4.00000E-02  1.199E+01  1.030E+01
   5.00000E-02  6.693E+00  5.667E+00
   6.00000E-02  4.176E+00  3.460E+00
   7.61110E-02  2.284E+00  1.810E+00
K  7.61110E-02  9.728E+00  2.758E+00
   8.00000E-02  8.585E+00  2.694E+00
   1.00000E-01  4.855E+00  2.093E+00
   1.50000E-01  1.740E+00  9.903E-01
   2.00000E-01  8.628E-01  5.290E-01
   3.00000E-01  3.525E-01  2.155E-01
   4.00000E-01  2.068E-01  1.199E-01
   5.00000E-01  1.463E-01  8.054E-02
   6.00000E-01  1.149E-01  6.088E-02
   8.00000E-01  8.357E-02  4.250E-02
   1.00000E+00  6.794E-02  3.412E-02
   1.25000E+00  5.688E-02  2.843E-02
   1.50000E+00  5.083E-02  2.541E-02
   2.00000E+00  4.501E-02  2.295E-02
   3.00000E+00  4.139E-02  2.269E-02
   4.00000E+00  4.104E-02  2.398E-02
   5.00000E+00  4.174E-02  2.546E-02
   6.00000E+00  4.286E-02  2.687E-02
   8.00000E+00  4.558E-02  2.927E-02
   1.00000E+01  4.844E-02  3.115E-02
   1.50000E+01  5.502E-02  3.405E-02
   2.00000E+01  6.024E-02  3.516E-02
