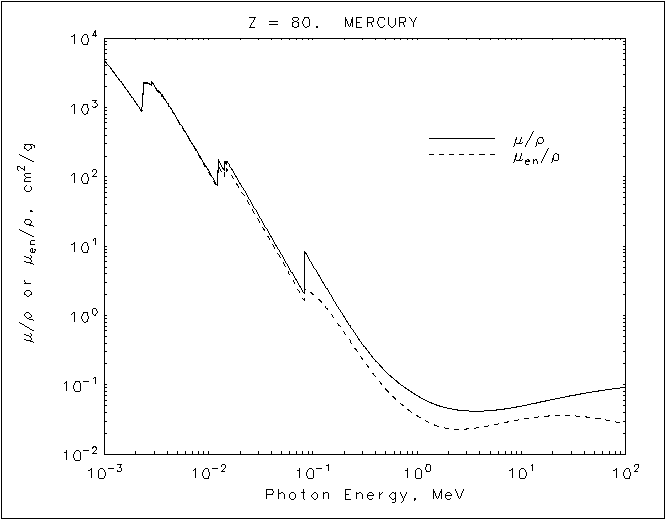

Mercury graph


Mercury
Z = 80


HTML table format


         Energy         μ/ρ         μen/ρ
   (MeV) (cm2/g)  (cm2/g)

  1.00000E-03 4.830E+03 4.817E+03
1.50000E-03 2.174E+03 2.161E+03
2.00000E-03 1.184E+03 1.172E+03
2.29490E-03 8.773E+02 8.660E+02
M5 2.29490E-03 9.925E+02 9.778E+02
  2.33947E-03 1.407E+03 1.378E+03
2.38490E-03 2.151E+03 2.101E+03
M4 2.38490E-03 2.316E+03 2.261E+03
  2.60577E-03 2.257E+03 2.202E+03
2.84710E-03 2.080E+03 2.030E+03
M3 2.84710E-03 2.400E+03 2.343E+03
  3.00000E-03 2.117E+03 2.069E+03
3.27850E-03 1.704E+03 1.666E+03
M2 3.27850E-03 1.808E+03 1.767E+03
  3.41712E-03 1.638E+03 1.600E+03
3.56160E-03 1.486E+03 1.454E+03
M1 3.56160E-03 1.549E+03 1.515E+03
  4.00000E-03 1.179E+03 1.153E+03
5.00000E-03 6.869E+02 6.710E+02
6.00000E-03 4.387E+02 4.272E+02
8.00000E-03 2.140E+02 2.065E+02
1.00000E-02 1.221E+02 1.164E+02
1.22839E-02 7.266E+01 6.821E+01
L3 1.22839E-02 1.780E+02 1.437E+02
  1.32113E-02 1.464E+02 1.197E+02
1.42087E-02 1.209E+02 9.988E+01
L2 1.42087E-02 1.663E+02 1.289E+02
  1.45206E-02 1.674E+02 1.233E+02
1.48393E-02 1.501E+02 1.173E+02
L1 1.48393E-02 1.728E+02 1.340E+02
  1.50000E-02 1.681E+02 1.307E+02
2.00000E-02 8.123E+01 6.647E+01
3.00000E-02 2.841E+01 2.410E+01
4.00000E-02 1.342E+01 1.141E+01
5.00000E-02 7.504E+00 6.321E+00
6.00000E-02 4.683E+00 3.878E+00
8.00000E-02 2.259E+00 1.782E+00
8.31023E-02 2.055E+00 1.607E+00
K 8.31023E-02 8.464E+00 2.384E+00
  1.00000E-01 5.279E+00 2.043E+00
1.50000E-01 1.909E+00 1.036E+00
2.00000E-01 9.456E-01 5.661E-01
3.00000E-01 3.834E-01 2.342E-01
4.00000E-01 2.224E-01 1.304E-01
5.00000E-01 1.555E-01 8.711E-02
6.00000E-01 1.210E-01 6.536E-02
8.00000E-01 8.679E-02 4.493E-02
1.00000E+00 6.993E-02 3.563E-02
1.25000E+00 5.814E-02 2.936E-02
1.50000E+00 5.179E-02 2.605E-02
2.00000E+00 4.575E-02 2.339E-02
3.00000E+00 4.207E-02 2.307E-02
4.00000E+00 4.172E-02 2.436E-02
5.00000E+00 4.246E-02 2.586E-02
6.00000E+00 4.362E-02 2.730E-02
8.00000E+00 4.643E-02 2.975E-02
1.00000E+01 4.937E-02 3.165E-02
1.50000E+01 5.613E-02 3.460E-02
2.00000E+01 6.154E-02 3.576E-02

Mercury
Z = 80


ASCII format
____________________________________

     Energy       μ/ρ        μen/ρ
      (MeV)      (cm2/g)     (cm2/g)
____________________________________

   1.00000E-03  4.830E+03  4.817E+03
   1.50000E-03  2.174E+03  2.161E+03
   2.00000E-03  1.184E+03  1.172E+03
   2.29490E-03  8.773E+02  8.660E+02
M5 2.29490E-03  9.925E+02  9.778E+02
   2.33947E-03  1.407E+03  1.378E+03
   2.38490E-03  2.151E+03  2.101E+03
M4 2.38490E-03  2.316E+03  2.261E+03
   2.60577E-03  2.257E+03  2.202E+03
   2.84710E-03  2.080E+03  2.030E+03
M3 2.84710E-03  2.400E+03  2.343E+03
   3.00000E-03  2.117E+03  2.069E+03
   3.27850E-03  1.704E+03  1.666E+03
M2 3.27850E-03  1.808E+03  1.767E+03
   3.41712E-03  1.638E+03  1.600E+03
   3.56160E-03  1.486E+03  1.454E+03
M1 3.56160E-03  1.549E+03  1.515E+03
   4.00000E-03  1.179E+03  1.153E+03
   5.00000E-03  6.869E+02  6.710E+02
   6.00000E-03  4.387E+02  4.272E+02
   8.00000E-03  2.140E+02  2.065E+02
   1.00000E-02  1.221E+02  1.164E+02
   1.22839E-02  7.266E+01  6.821E+01
L3 1.22839E-02  1.780E+02  1.437E+02
   1.32113E-02  1.464E+02  1.197E+02
   1.42087E-02  1.209E+02  9.988E+01
L2 1.42087E-02  1.663E+02  1.289E+02
   1.45206E-02  1.674E+02  1.233E+02
   1.48393E-02  1.501E+02  1.173E+02
L1 1.48393E-02  1.728E+02  1.340E+02
   1.50000E-02  1.681E+02  1.307E+02
   2.00000E-02  8.123E+01  6.647E+01
   3.00000E-02  2.841E+01  2.410E+01
   4.00000E-02  1.342E+01  1.141E+01
   5.00000E-02  7.504E+00  6.321E+00
   6.00000E-02  4.683E+00  3.878E+00
   8.00000E-02  2.259E+00  1.782E+00
   8.31023E-02  2.055E+00  1.607E+00
K  8.31023E-02  8.464E+00  2.384E+00
   1.00000E-01  5.279E+00  2.043E+00
   1.50000E-01  1.909E+00  1.036E+00
   2.00000E-01  9.456E-01  5.661E-01
   3.00000E-01  3.834E-01  2.342E-01
   4.00000E-01  2.224E-01  1.304E-01
   5.00000E-01  1.555E-01  8.711E-02
   6.00000E-01  1.210E-01  6.536E-02
   8.00000E-01  8.679E-02  4.493E-02
   1.00000E+00  6.993E-02  3.563E-02
   1.25000E+00  5.814E-02  2.936E-02
   1.50000E+00  5.179E-02  2.605E-02
   2.00000E+00  4.575E-02  2.339E-02
   3.00000E+00  4.207E-02  2.307E-02
   4.00000E+00  4.172E-02  2.436E-02
   5.00000E+00  4.246E-02  2.586E-02
   6.00000E+00  4.362E-02  2.730E-02
   8.00000E+00  4.643E-02  2.975E-02
   1.00000E+01  4.937E-02  3.165E-02
   1.50000E+01  5.613E-02  3.460E-02
   2.00000E+01  6.154E-02  3.576E-02
