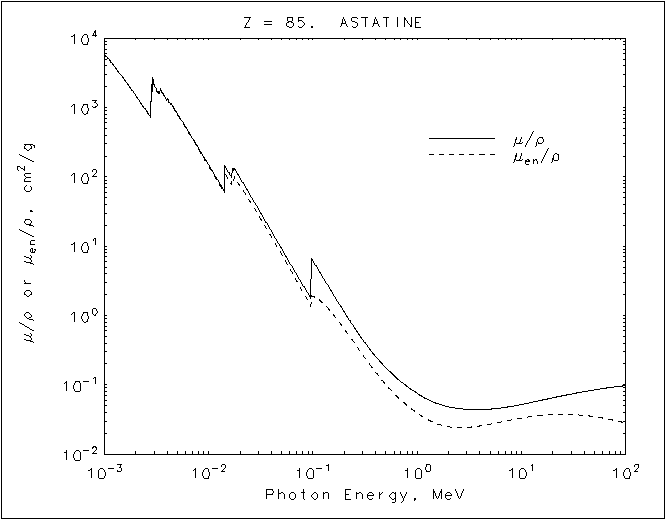

Astatine graph


Astatine
Z = 85


HTML table format


         Energy         μ/ρ         μen/ρ
   (MeV) (cm2/g)  (cm2/g)

  1.00000E-03 5.868E+03 5.854E+03
1.02078E-03 5.651E+03 5.637E+03
1.04200E-03 5.435E+03 5.420E+03
N1 1.04200E-03 5.551E+03 5.537E+03
  1.50000E-03 2.731E+03 2.717E+03
2.00000E-03 1.495E+03 1.482E+03
2.78670E-03 7.225E+02 7.112E+02
M5 2.78670E-03 2.431E+03 2.355E+03
  2.84705E-03 1.928E+03 1.869E+03
2.90870E-03 1.686E+03 1.638E+03
M4 2.90870E-03 2.763E+03 2.671E+03
  3.00000E-03 2.250E+03 2.178E+03
3.42600E-03 1.614E+03 1.566E+03
M3 3.42600E-03 1.866E+03 1.811E+03
  4.00000E-03 1.275E+03 1.240E+03
4.00800E-03 1.269E+03 1.233E+03
M2 4.00800E-03 1.345E+03 1.308E+03
  4.15963E-03 1.234E+03 1.196E+03
4.31700E-03 1.126E+03 1.095E+03
M1 4.31700E-03 1.175E+03 1.142E+03
  5.00000E-03 8.251E+02 8.025E+02
6.00000E-03 5.299E+02 5.146E+02
8.00000E-03 2.601E+02 2.509E+02
1.00000E-02 1.490E+02 1.423E+02
1.42135E-02 6.162E+01 5.738E+01
L3 1.42135E-02 1.461E+02 1.140E+02
  1.50000E-02 1.279E+02 1.008E+02
1.67847E-02 9.417E+01 7.576E+01
L2 1.67847E-02 1.302E+02 9.670E+01
  1.71352E-02 1.338E+02 9.264E+01
1.74930E-02 1.181E+02 8.847E+01
L1 1.74930E-02 1.360E+02 1.010E+02
  2.00000E-02 9.704E+01 7.446E+01
3.00000E-02 3.442E+01 2.812E+01
4.00000E-02 1.638E+01 1.361E+01
5.00000E-02 9.196E+00 7.637E+00
6.00000E-02 5.748E+00 4.729E+00
8.00000E-02 2.769E+00 2.200E+00
9.57299E-02 1.777E+00 1.361E+00
K 9.57299E-02 6.895E+00 1.935E+00
  1.00000E-01 6.174E+00 1.897E+00
1.50000E-01 2.249E+00 1.112E+00
2.00000E-01 1.118E+00 6.369E-01
3.00000E-01 4.491E-01 2.718E-01
4.00000E-01 2.565E-01 1.522E-01
5.00000E-01 1.765E-01 1.012E-01
6.00000E-01 1.354E-01 7.517E-02
8.00000E-01 9.495E-02 5.055E-02
1.00000E+00 7.538E-02 3.934E-02
1.25000E+00 6.189E-02 3.181E-02
1.50000E+00 5.479E-02 2.791E-02
2.00000E+00 4.821E-02 2.478E-02
3.00000E+00 4.424E-02 2.427E-02
4.00000E+00 4.383E-02 2.556E-02
5.00000E+00 4.461E-02 2.710E-02
6.00000E+00 4.585E-02 2.859E-02
8.00000E+00 4.883E-02 3.113E-02
1.00000E+01 5.195E-02 3.311E-02
1.50000E+01 5.918E-02 3.619E-02
2.00000E+01 6.493E-02 3.739E-02

Astatine
Z = 85


ASCII format
____________________________________

     Energy       μ/ρ        μen/ρ
      (MeV)      (cm2/g)     (cm2/g)
____________________________________

   1.00000E-03  5.868E+03  5.854E+03
   1.02078E-03  5.651E+03  5.637E+03
   1.04200E-03  5.435E+03  5.420E+03
N1 1.04200E-03  5.551E+03  5.537E+03
   1.50000E-03  2.731E+03  2.717E+03
   2.00000E-03  1.495E+03  1.482E+03
   2.78670E-03  7.225E+02  7.112E+02
M5 2.78670E-03  2.431E+03  2.355E+03
   2.84705E-03  1.928E+03  1.869E+03
   2.90870E-03  1.686E+03  1.638E+03
M4 2.90870E-03  2.763E+03  2.671E+03
   3.00000E-03  2.250E+03  2.178E+03
   3.42600E-03  1.614E+03  1.566E+03
M3 3.42600E-03  1.866E+03  1.811E+03
   4.00000E-03  1.275E+03  1.240E+03
   4.00800E-03  1.269E+03  1.233E+03
M2 4.00800E-03  1.345E+03  1.308E+03
   4.15963E-03  1.234E+03  1.196E+03
   4.31700E-03  1.126E+03  1.095E+03
M1 4.31700E-03  1.175E+03  1.142E+03
   5.00000E-03  8.251E+02  8.025E+02
   6.00000E-03  5.299E+02  5.146E+02
   8.00000E-03  2.601E+02  2.509E+02
   1.00000E-02  1.490E+02  1.423E+02
   1.42135E-02  6.162E+01  5.738E+01
L3 1.42135E-02  1.461E+02  1.140E+02
   1.50000E-02  1.279E+02  1.008E+02
   1.67847E-02  9.417E+01  7.576E+01
L2 1.67847E-02  1.302E+02  9.670E+01
   1.71352E-02  1.338E+02  9.264E+01
   1.74930E-02  1.181E+02  8.847E+01
L1 1.74930E-02  1.360E+02  1.010E+02
   2.00000E-02  9.704E+01  7.446E+01
   3.00000E-02  3.442E+01  2.812E+01
   4.00000E-02  1.638E+01  1.361E+01
   5.00000E-02  9.196E+00  7.637E+00
   6.00000E-02  5.748E+00  4.729E+00
   8.00000E-02  2.769E+00  2.200E+00
   9.57299E-02  1.777E+00  1.361E+00
K  9.57299E-02  6.895E+00  1.935E+00
   1.00000E-01  6.174E+00  1.897E+00
   1.50000E-01  2.249E+00  1.112E+00
   2.00000E-01  1.118E+00  6.369E-01
   3.00000E-01  4.491E-01  2.718E-01
   4.00000E-01  2.565E-01  1.522E-01
   5.00000E-01  1.765E-01  1.012E-01
   6.00000E-01  1.354E-01  7.517E-02
   8.00000E-01  9.495E-02  5.055E-02
   1.00000E+00  7.538E-02  3.934E-02
   1.25000E+00  6.189E-02  3.181E-02
   1.50000E+00  5.479E-02  2.791E-02
   2.00000E+00  4.821E-02  2.478E-02
   3.00000E+00  4.424E-02  2.427E-02
   4.00000E+00  4.383E-02  2.556E-02
   5.00000E+00  4.461E-02  2.710E-02
   6.00000E+00  4.585E-02  2.859E-02
   8.00000E+00  4.883E-02  3.113E-02
   1.00000E+01  5.195E-02  3.311E-02
   1.50000E+01  5.918E-02  3.619E-02
   2.00000E+01  6.493E-02  3.739E-02
