Spectrum of Platinum homepage

Lines and intensities in the range 1136-1152 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  1136.06      88023.5         35     Pt II     8419- 96443  K
  1136.2004    88012.640       22     Pt II    13329-101341  05
  1138.39      87843.4        120
  1138.83      87809.4        330
  1139.62      87748.5         99
  1139.75      87738.5        140
  1140.6146    87672.034       53     Pt II    15791-103463  07
  1140.65      87669.3         53
  1140.79      87658.6         39
  1141.17      87629.4         91     Pt II    15791-103421  K
  1141.8885    87574.227     1400     Pt II    13329-100903  06
  1143.2957    87466.439     5800     Pt II    13329-100795  06
  1144.60      87366.8         93
  1145.00      87336.2         49     Pt II    16820-104158  K
  1145.7055    87282.468      800     Pt II    13329-100611  05
  1145.87      87269.9        310     Pt II    16820-104092  K
  1147.62      87136.9        120     Pt II     8419- 95557  K
  1150.1564    86944.697     1500     Pt II    18097-105042  K
  1150.6130    86910.194     7200     Pt II    13329-100239  05
  1150.9198    86887.027     1700     Pt II    15791-102678  K
  1150.9689    86883.321     1800     Pt II     4786- 91669  K
  1151.59      86836.5        200     Pt II    24879-111716  K
Character descriptor definitions (appear to right of intensity)
Code definitions

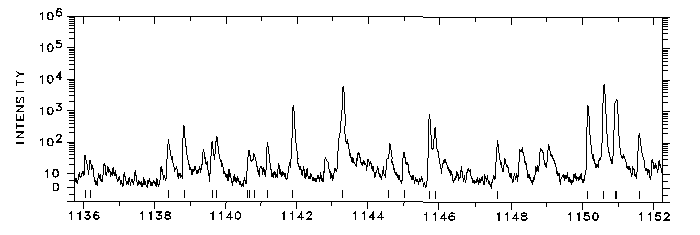

Photoelectric spectrum

1136-1152 Å

                      WAVELENGTH (ANGSTROMS) - VACUUM

A PostScript file is available.
