Spectrum of Platinum homepage

Lines and intensities in the range 1264-1280 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  1264.3492    79092.074     1200     Pt II        0- 79092  K
  1264.4898    79083.279      130     Pt II    32237-111320  K
  1264.5677    79078.406    17000     Pt II    21717-100795  07
  1264.6904    79070.737     8800     Pt II    21168-100239  06
  1264.8691    79059.564      720 D   Pt II    23461-102520  K
  1265.07      79047.0        190
  1265.2074    79038.425     1400     Pt II    15791- 94829  K
  1265.7145    79006.759     3100     Pt II    29030-108037  K
  1266.5706    78953.354      310     Pt II    23461-102414  07
  1266.8932    78933.252     1100     Pt II    16820- 95754  P
  1267.25      78911.0        110
  1267.5165    78894.435      310     Pt II    21717-100611  07
  1268.3599    78841.975      450     Pt II    15791- 94633  K
  1268.7589    78817.181      970     Pt II     9356- 88173  K
  1268.9912    78802.753      270     Pt II    23875-102678  K
  1269.0742    78797.599      520 P   Pt II    32918-111716  K
  1269.0973    78796.165      700     Pt II    16820- 95617  K
  1269.4345    78775.234      530     Pt II    29261-108037  K
  1269.8121    78751.809      540     Pt II     4786- 83538  K
  1271.34      78657.2         87
  1271.7939    78629.094    15000     Pt II    21168- 99797  06
  1272.83      78565.1         44
  1273.28      78537.3         94
  1274.03      78491.1         66
  1274.2091    78480.055      150     Pt II    15791- 94271  K
  1274.3665    78470.362      620     Pt II    27255-105726  K
  1274.6091    78455.427     3800     Pt II    23461-101916  07
  1274.6566    78452.502      900     Pt II        0- 78452  K
  1274.7362    78447.604      300     Pt II    32237-110684  K
  1274.9222    78436.159      250     Pt II    32918-111354  K
  1275.4940    78400.996      890     Pt II    32237-110638  K
  1276.2289    78355.850      730     Pt II    29030-107386  K
  1276.4754    78340.719      320     Pt II    13329- 91669  K
  1277.0472    78305.641      700     Pt II    18097- 96403  K
  1277.1026    78302.245      800     Pt II    21168- 99471  K
  1277.89      78254.0        120
  1278.6998    78204.439      560
  1278.84      78195.9         40
  1279.0832    78180.997      510     Pt II    24879-103060  K
  1279.42      78160.4        150
Character descriptor definitions (appear to right of intensity)
Code definitions

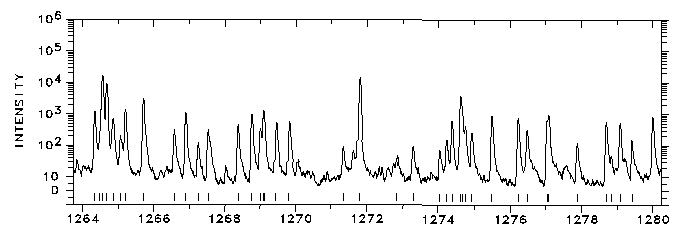

Photoelectric spectrum

1264-1280 Å

                      WAVELENGTH (ANGSTROMS) - VACUUM

A PostScript file is available.
