Spectrum of Platinum homepage

Lines and intensities in the range 1408-1424 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  1409.0315    70970.734     7400     Pt II    29261-100232  K
  1409.3589    70954.247      300     Pt II    23875- 94829  K
  1409.4407    70950.129      840     Pt II    34647-105597  K
  1409.7467    70934.73       630     Ne II                  C
  1410.1346    70915.216    18000
  1410.2951    70907.146     1700     Pt II    34647-105554  K
  1410.50      70896.8         87
  1411.09      70867.2         48
  1411.3059    70856.36       160     Ne II                  C
  1411.62      70840.6        120     Pt II     9356- 80197  K
  1411.76      70833.6        120
  1411.91      70826.0         62
  1412.2278    70810.106      180     Pt II    23461- 94271  K
  1412.5350    70794.706      410     Pt II    37877-108672  K
  1413.10      70766.4         97
  1413.1988    70761.453      170     Pt II    37877-108639  K
  1413.2736    70757.708     1100     Pt II    23875- 94633  K
  1413.6768    70737.526     3800     Pt II    24879- 95617  K
  1413.9570    70723.51      1100     Ne II                  C
  1414.3241    70705.152      390
  1414.4573    70698.493      230     Pt II    15791- 86489  K
  1415.00      70671.4         64
  1415.7144    70635.71      1200     Ne II                  C
  1416.20      70611.5         82
  1416.30      70606.5         78
  1416.4593    70598.571       69     Pt II    32918-103517  12
  1417.5400    70544.749      400     Pt II    32918-103463  11
  1417.8186    70530.885     4400     Pt II    27255- 97786  K
  1418.1875    70512.538      200     Pt II    36484-106996  K
  1418.3779    70503.08      3100     Ne II                  C
  1418.7471    70484.72      2100     Ne II                  C
  1418.7967    70482.262      300 P
  1419.6208    70441.346      550     Pt II    32237-102678  K
  1420.08      70418.6        150
  1420.5511    70395.215     2000     Pt II    34647-105042  K
  1420.89      70378.4         82
  1421.0852    70368.758      350     Pt II    36484-106852  K
  1421.5372    70346.383     2800
  1421.80      70333.4         74
  1422.84      70282.0        110
  1422.9252    70277.763      580     Pt II    37877-108155  K
  1423.2414    70262.150      440
  1423.5645    70246.20      1200     Ne II                  C
Character descriptor definitions (appear to right of intensity)
Code definitions

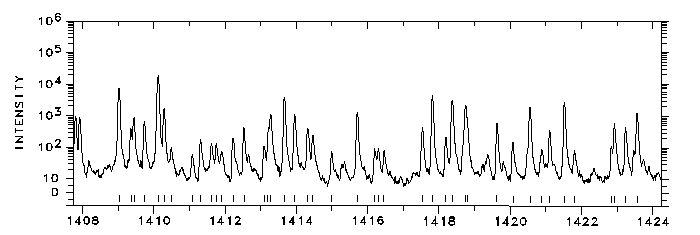

Photoelectric spectrum

1408-1424 Å

                      WAVELENGTH (ANGSTROMS) - VACUUM

A PostScript file is available.
