Lines and intensities in the range 1696-1712 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  1696.2887    58952.230     8100     Pt II     4786- 63738  07
  1696.7990    58934.500      250
  1697.48      58910.9        340
  1697.87      58897.3         61     Ne III                 L
  1698.4958    58875.624    12000     Pt II    43737-102613  K
  1698.66      58869.9         89
  1698.8732    58862.545     1900     Pt I       823- 59686  N
  1699.0497    58856.430      680
  1699.2606    58849.125      600     Pt II   110257- 51408  K
  1699.52      58840.1         47
  1699.6746    58834.792      230     Pt II    34647- 93482  15
  1699.8757    58827.831      560     Pt II    15791- 74619  05
  1700.24      58815.2         61
  1700.5245    58805.386      570     Pt II    41434-100239  K
  1700.8188    58795.211     1300     Pt II    48591-107386  K
  1701.2700    58779.618      450     Pt II    32237- 91016  K
  1701.71      58764.4         94     Pt II    42031-100795  K
  1701.8227    58760.528      280     Pt II    16820- 75581  07
  1702.33      58743.0         82
  1703.46      58704.0         79
  1703.9703    58686.469      270     Pt I       775- 59462  N
  1704.49      58668.6        180     Pt I       823- 59492  N
  1704.5981    58664.855      500
  1704.7667    58659.053     8400     Pt II    24879- 83538  K
  1705.13      58646.6         44
  1705.76      58624.9        150
  1705.9115    58619.689     4200     Pt II    13329- 71948  05
  1706.1353    58611.999      360
  1707.0710    58579.872    33000     Pt II    42031-100611  K
  1707.3021    58571.942      330
  1707.4716    58566.128      300     Pt II    37877- 96443  K
  1707.9344    58550.258      350     Pt II    34647- 93197  K
  1708.10      58544.6        180     Pt II    16820- 75365  K
  1708.2132    58540.702     3100     Pt I     10116- 68657  N
  1708.6568    58525.504     1300     Pt II    37877- 96403  K
  1708.7393    58522.678      950     Pt I       823- 59346  N
  1709.12      58509.6         41     Pt II    32237- 90746  K
  1709.6984    58489.848      470     Pt I     10116- 68606  N
  1709.93      58481.9        100     Pt I         0- 58482  N
  1710.1391    58474.776      270     Pt I     10131- 68606  N
  1710.7964    58452.309      350
  1710.8580    58450.203     2400     Pt II    15791- 74241  05
  1710.9566    58446.836      250
  1711.1926    58438.776      320     Pt II    21168- 79607  08
  1711.2670    58436.235      350     Pt II    23461- 81897  P
  1711.3642    58432.916      490
  1711.6209    58424.152     1100     Pt II     9356- 67780  K
Character descriptor definitions (appear to right of intensity)
Code definitions

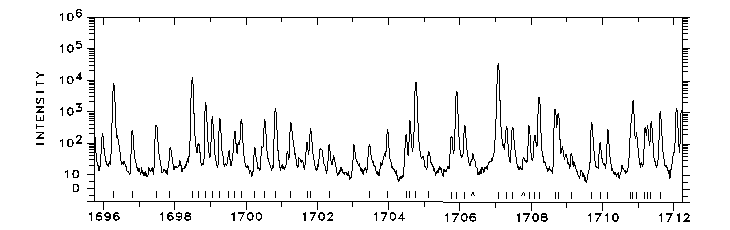

Photoelectric spectrum

1696-1712 Å

                      WAVELENGTH (ANGSTROMS) - VACUUM
