Spectrum of Platinum homepage

Lines and intensities in the range 2846-2862 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  2846.34      35122.5         34
  2846.52      35120.3         33     Pt II   106434- 71314  K
  2846.86      35116.1        120
  2848.32      35098.1         18
  2849.15      35087.9        150     Pt I     16983- 52071  N
  2849.94      35078.1         31
  2850.41      35072.4        110     Pt II   110257- 75184  K
  2850.60      35070.0        100     Pt II   106434- 71364  K
  2851.16      35063.1         78     Ne III                 L
  2851.23      35062.3         43
  2852.1238    35051.293              Mg I
  2852.87      35042.1         37     Pt II   110408- 75365  K
  2853.0972    35039.335     3800     Pt I     13496- 48535  E
  2853.3729    35035.950      810     Pt I     68716- 33680  N
  2853.5092    35034.275      510
  2853.84      35030.2        190
  2854.14      35026.5         52
  2855.79      35006.3         74
  2858.0244    34978.931     2200     Ne II                  G
  2858.1879    34976.930      810 P   Pt II   104930- 69953  K
  2858.2026    34976.750      650 U
  2858.4846    34973.299     1800     Pt II   110158- 75184  K
  2859.77      34957.6        110     Pt II   117493- 82535  K
  2860.4830    34948.867     6600     Pt II    96614- 61665  08
  2861.17      34940.5        230
  2861.71      34933.9         68
Character descriptor definitions (appear to right of intensity)
Code definitions

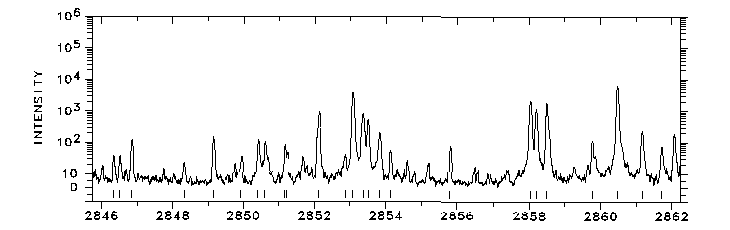

Photoelectric spectrum

2846-2862 Å

                      WAVELENGTH (ANGSTROMS) - AIR

A PostScript file is available.
