Spectrum of Platinum homepage

Lines and intensities in the range 4014-4030 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  4014.3061    24903.866      360     Pt II    37877- 62781  30
  4014.75      24901.1        160
  4018.21      24879.7        480     Pt I     65395- 40516  N
  4019.61      24871.0        460     Pt I     65387- 40516  N
  4020.48      24865.6        200
  4022.42      24853.6        110
  4022.73      24851.7        130
  4023.11      24849.4        190
  4023.8153    24845.014      230     Pt II    29030- 53875  17
  4024.041     24843.62       370     Ne II                  C
  4027.95      24819.5        470     Pt I     16983- 41802  N
  4028.17      24818.2        160
  4029.19      24811.9        180
Character descriptor definitions (appear to right of intensity)
Code definitions

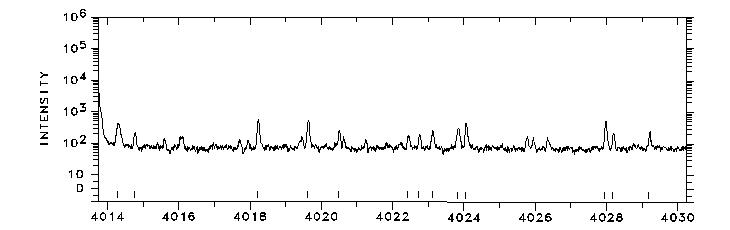

Photoelectric spectrum

4014-4030 Å

                      WAVELENGTH (ANGSTROMS) - AIR
