Spectrum of Platinum homepage

Lines and intensities in the range 1168-1184 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  1168.1346    85606.574     2400     Pt II    15791-101397  05
  1168.1882    85602.645     2100     Pt II    15791-101394  K
  1168.2621    85597.230     6000
  1168.3067    85593.963     8000     Pt II    16820-102414  06
  1169.58      85500.8        630
  1169.7477    85488.517    37000     Pt II    13329- 98817  06
  1170.6940    85419.418      130     Pt II    18097-103517  08
  1171.15      85386.2         72     Pt II     4786- 90173  K
  1171.4321    85365.595      840     Pt II    18097-103463  07
  1171.97      85326.4        360
  1172.0340    85321.757     3100     Pt II    15791-101113  K
  1172.26      85305.3         97
  1172.80      85266.0         60     Pt II    23461-108727  K
  1173.31      85229.0        150
  1173.89      85186.9        250     Pt II    24879-110066  K
  1174.59      85136.1        430     Pt II    21717-106852  K
  1175.1429    85096.036     6000     Pt II    16820-101916  06
  1175.4112    85076.610      850     Pt II     4786- 89863  P
  1175.64      85060.1         64
  1176.4098    85004.390     4900     Pt II    15791-100795  06
  1176.9863    84962.756     8400     Pt II    18097-103060  K
  1177.6448    84915.248     1100     Pt II     9356- 94271  K
  1177.89      84897.6        290
  1178.3994    84860.871     1400     Pt II    23461-108322  K
  1178.4428    84857.744     4300     Pt II    13329- 98186  06
  1178.9614    84820.419    31000     Pt II    15791-100611  06
  1179.30      84796.1        210     Pt II    23875-108672  K
  1179.5986    84774.600      530     Pt II    18097-102872  K
  1180.2490    84727.884     2400     Pt II    21168-105896  K
  1180.7195    84694.121     2000     Pt II    23461-108155  K
  1181.1100    84666.119     4600     Pt II     9356- 94022  P
  1182.07      84597.4        110
  1182.3552    84576.956    11000     Pt II    16820-101397  05
  1182.6276    84557.472     1300     Pt II    21168-105726  K
  1183.1383    84520.973      240     Pt II    16820-101341  06
  1183.55      84491.6         51
  1183.9423    84463.576     1400     Pt II    13329- 97792  K
Character descriptor definitions (appear to right of intensity)
Code definitions

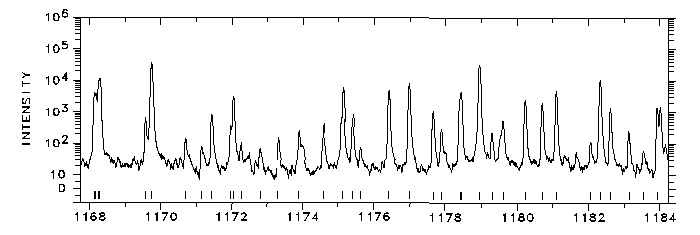

Photoelectric spectrum

1168-1184 Å

                      WAVELENGTH (ANGSTROMS) - VACUUM

A PostScript file is available.
