Lines and intensities in the range 1184-1200 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  1184.0298    84457.334     1500     Pt II    13329- 97786  K
  1184.1586    84448.145       87     Pt II    15791-100239  05
  1184.45      84427.4        190
  1184.51      84423.1        300     Pt II    18097-102520  K
  1184.9977    84388.349      740
  1185.48      84354.0         67
  1185.57      84347.6        200     Pt II     8419- 92767  K
  1185.9985    84317.142     1200     Pt II    18097-102414  06
  1186.2203    84301.373    25000     Pt II    13329- 97630  06
  1186.57      84276.5        200
  1187.57      84205.6         25
  1187.95      84178.6         89     Pt II    21717-105896  K
  1188.1761    84162.609     1100     Pt II    23875-108038  K
  1188.6968    84125.739     3200     Pt II     9356- 93482  07
  1188.95      84107.8        340
  1189.3073    84082.560     4700     Pt II    16820-100903  06
  1189.93      84038.6        130
  1190.3840    84006.502      490     Pt II    15791- 99797  05
  1190.6418    83988.319     3800     Pt II    18097-102086  08
  1190.7595    83980.013     2000     Pt II     9356- 93336  06
  1191.5733    83922.659      980     Pt II    24879-108802  K
  1191.99      83893.3         45
  1192.2690    83873.690     2400     Pt II    21168-105042  K
  1192.62      83849.0        250     Pt II    21168-105018  AK
  1192.62      83849.0        250     Pt II    24879-108727  AK
  1193.05      83818.8        350     Pt II    18097-101916  K
  1193.22      83806.8        230
  1193.28      83802.6        290     Pt II     4786- 88589  K
  1193.4484    83790.801    24000     Pt II    16820-100611  06
  1194.32      83729.7        120     Pt II    23461-107191  K
  1194.58      83711.4         63
  1195.05      83678.5        560
  1196.5616    83572.797     3100
  1197.12      83533.8         68     Pt II    23461-106996  K
  1197.26      83524.0         69
  1197.65      83496.8        120
  1197.92      83478.0        250
  1198.1623    83461.147     1700
  1198.3009    83451.494      860     Pt II    18097-101549  P
  1198.65      83427.2        180
  1198.7745    83418.527    27000     Pt II    16820-100239  05
  1199.1649    83391.367     1800     Pt II    23461-106852  K
  1199.34      83379.2        240     Pt II    21168-104548  K
  1199.5496    83364.623      240     N I                    B
  1199.7276    83352.251      330     Pt II        0- 83352  07
Character descriptor definitions (appear to right of intensity)
Code definitions

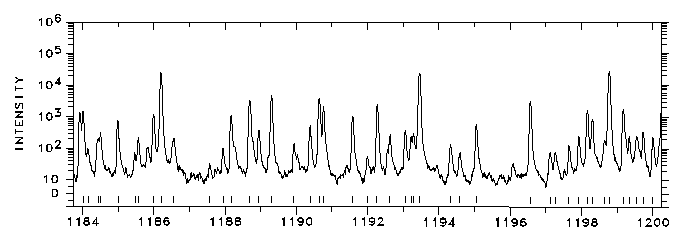

Photoelectric spectrum

1184-1200 Å

                      WAVELENGTH (ANGSTROMS) - VACUUM

A PostScript file is available.
