Spectrum of Platinum homepage

Lines and intensities in the range 1200-1216 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  1200.00      83333.3        220
  1200.2508    83315.920     1600     Pt II    23875-107191  K
  1200.4693    83300.756      520     Pt II    21717-105018  K
  1200.8040    83277.537     4500     Pt II    15791- 99068  K
  1201.2856    83244.152     6500     Pt II    18097-101341  06
  1201.68      83216.8        270     Pt II    29030-112247  K
  1201.89      83202.3         31
  1202.80      83139.3         75
  1203.7443    83074.121     2900     Pt II    13329- 96403  K
  1205.0270    82985.692      610     Pt II    29261-112247  K
  1205.1569    82976.748     1100     Pt II    16820- 99797  A
  1205.1569    82976.748     1100     Pt II    23875-106852  AK
  1205.84      82929.7         32     Ne III                 L
  1206.59      82878.2        350
  1206.99      82850.7         78
  1207.2890    82830.209      510     Pt II    21717-104548  AK
  1207.2890    82830.209      510     Pt II    27255-110085  AK
  1207.37      82824.7        250     Pt II        0- 82824  K
  1207.49      82816.4        500
  1207.6458    82805.739     5000     Pt II    18097-100903  06
  1208.1902    82768.425     1400     Pt II    23461-106229  K
  1210.6999    82596.852      630     Pt II     8419- 91016  K
  1212.04      82505.5        130
  1212.59      82468.1        140     Pt II    21168-103637  K
  1212.7905    82454.472      890     Pt II    29261-111716  K
  1213.2263    82424.853     2400     Pt II    13329- 95754  P
  1213.43      82411.0         36
  1213.78      82387.3         92
  1214.13      82363.5         61
  1214.7092    82324.230     2100     Pt II    29030-111354  K
  1214.8648    82313.686     2600     Pt II     9356- 91669  K
  1215.2467    82287.819     4400     Pt II    13329- 95617  K
  1215.6701    82259.159          H   H I                    B
  1215.7671    82252.596     2000     Pt II    21168-103421  K
  1215.8369    82247.874     3500     Pt II    16820- 99068  K
Character descriptor definitions (appear to right of intensity)
Code definitions

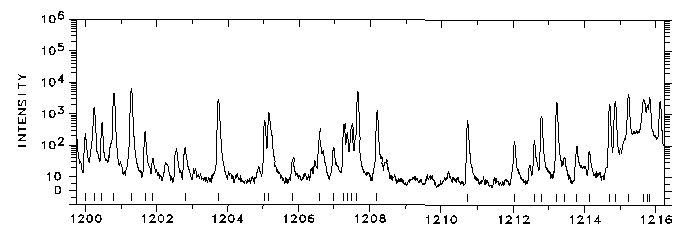

Photoelectric spectrum

1200-1216 Å

                      WAVELENGTH (ANGSTROMS) - VACUUM

A PostScript file is available.
