Lines and intensities in the range 1216-1232 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  1216.1236    82228.484     2600     Pt II    13329- 95557  K
  1216.63      82194.3        130
  1217.4951    82135.854     2200     Pt II    23461-105597  K
  1217.7927    82115.782     1500     Pt II    24879-106995  K
  1218.15      82091.7        230
  1219.00      82034.5         51
  1219.4931    82001.284    43000     Pt II    15791- 97792  K
  1219.5786    81995.535      900     Pt II    15791- 97786  K
  1220.09      81961.2        130
  1220.47      81935.6        240
  1220.7795    81914.875     3900     Pt II     9356- 91271  K
  1221.04      81897.4        150
  1221.7369    81850.683      760     Pt II    23875-105726  K
  1223.1214    81758.033     1200
  1223.5053    81732.380     1600     Pt II    29030-110762  K
  1223.6648    81721.726      530     Pt II    23875-105597  K
  1223.98      81700.7        240
  1224.1006    81692.632      380
  1224.43      81670.7        170
  1225.39      81606.7         56     Pt II    29030-110638  K
  1225.82      81578.0        360     Pt II    29030-110609  K
  1226.7936    81513.304     1000     Pt II    13329- 94842  K
  1226.9816    81500.815      860     Pt II    29261-110762  K
  1228.5930    81393.920      400 L
  1228.6470    81390.342     1300     Pt II     9356- 90746  K
  1229.0134    81366.077    17000     Pt II    16820- 98186  06
  1229.2515    81350.318     1500     Pt II    24879-106229  K
  1229.3001    81347.102     4500     Pt II    29261-110609  K
  1229.6873    81321.49       510     Ne II                  C
  1229.8367    81311.61      2400     Ne II                  C
  1229.9505    81304.085      630     Pt II    13329- 94633  K
  1230.8272    81246.173      130     Pt II    21168-102414  07
  1231.64      81192.6         97     Ne III                 L
  1231.82      81180.7         67     Ne III                 L
  1231.89      81176.1         42     Ne III                 L
Character descriptor definitions (appear to right of intensity)
Code definitions

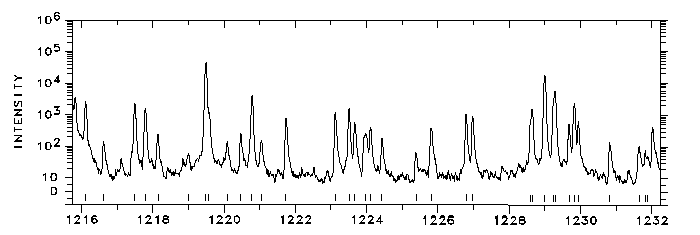

Photoelectric spectrum

1216-1232 Å

                      WAVELENGTH (ANGSTROMS) - VACUUM

A PostScript file is available.
