Spectrum of Platinum homepage

Lines and intensities in the range 1232-1248 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  1232.0302    81166.842      420     Pt II    23875-105042  K
  1232.3983    81142.598      910     Pt II    23875-105018  K
  1232.8739    81111.296    14000     Pt II    18097- 99209  06
  1233.25      81086.6        100     Pt II    23461-104548  K
  1234.0154    81036.266      720     Pt II    29030-110066  K
  1234.4019    81010.893     1200
  1234.5580    81000.650     4000
  1235.0916    80965.655     4900     Pt II    16820- 97786  K
  1235.1607    80961.125      600     Pt II    21717-102678  K
  1235.47      80940.9        250
  1235.8863    80913.592     2700     Pt II     4786- 85700  P
  1236.0630    80902.025     2700
  1237.4751    80809.706     4300     Pt II    16820- 97630  06
  1238.4170    80748.246      450     Pt II    21168-101916  06
  1238.8499    80720.029    36000     Pt II    18097- 98817  07
  1239.0156    80709.23      1200     Ne II                  C
  1239.1184    80702.538      350     Pt II    29030-109733  K
  1239.2011    80697.152      990     Pt II    23461-104158  K
  1239.5438    80674.842      890     Pt II    24879-105554  K
  1240.24      80629.6        110
  1240.5098    80612.019     1000     Pt II    15791- 96403  K
  1240.9502    80583.411      620
  1242.1331    80506.670      580     Pt II     9356- 89863  P
  1242.6815    80471.142     1100     Pt II    29261-109733  K
  1244.3623    80362.448      980     Pt II    16820- 97183  K
  1244.8278    80332.396     2000     Pt II    27255-107588  K
  1245.21      80307.7        160
  1245.6812    80277.362     7500     Pt II    29030-109307  K
  1246.0801    80251.662      670     Pt II     9356- 89607  07
  1246.3668    80233.203      650     Pt II    34647-114880  K
  1246.4295    80229.166     2900     Pt II    21168-101397  06
  1246.6262    80216.508     1100     Pt II    23875-104092  K
  1247.6173    80152.786     1300     Pt II    13329- 93482  08
Character descriptor definitions (appear to right of intensity)
Code definitions

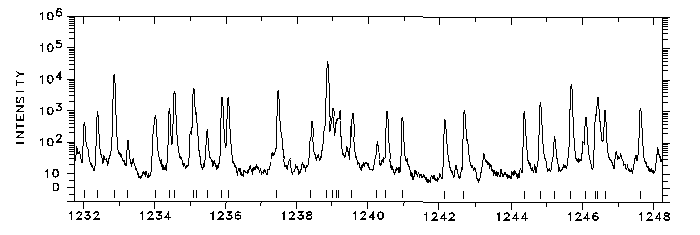

Photoelectric spectrum

1232-1248 Å

                      WAVELENGTH (ANGSTROMS) - VACUUM

A PostScript file is available.
