Lines and intensities in the range 1312-1328 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  1312.7858    76173.889      480     Pt II    18097- 94271  K
  1312.9308    76165.477     1200     Pt II    27255-103421  K
  1314.5907    76069.304     1100     Pt II    21717- 97786  K
  1315.40      76022.5         42
  1315.5348    76014.713     2300     Pt II    21168- 97183  K
  1315.5810    76012.043      270 P   Pt II    29030-105042  K
  1315.9505    75990.700       80     Pt II    34647-110638  K
  1316.4501    75961.861      410     Pt II    34647-110609  K
  1316.7058    75947.110      290     Pt II    16820- 92767  K
  1316.8913    75936.412       71
  1317.0348    75928.138      290     Pt II    16820- 92749  K
  1317.2032    75918.431      740     Pt II    32237-108155  K
  1317.3856    75907.919      100     Pt II    37877-113785  K
  1319.1080    75808.804       84 U   Pt II    32918-108727  K
  1319.1412    75806.896      270
  1319.2429    75801.052      140     Pt II    29030-104831  AK
  1319.2429    75801.052      140     Pt II    32237-108038  AK
  1319.8553    75765.881      340     Pt II    13329- 89095  K
  1320.1754    75747.508     3000     Pt II    23461- 99209  07
  1320.6427    75720.708      590     Pt II    32918-108639  K
  1322.8372    75595.092     7500     Pt II    23875- 99471  AK
  1322.8372    75595.092     7500     Pt II    29030-104625  AK
  1323.0765    75581.422      710     Pt II        0- 75581  06
  1323.2831    75569.619     8900     Pt II    29261-104831  K
  1323.5388    75555.020      260     Pt II    34647-110202  K
  1323.6402    75549.232      280     Pt II    34647-110196  K
  1324.8562    75479.890     1900     Pt II    15791- 91271  K
  1325.0971    75466.168     2500     Pt II    21717- 97183  K
  1325.6560    75434.351       32
  1326.0723    75410.670     1600     Pt II     4786- 80197  K
  1326.1916    75403.886     1700     Pt II    32918-108322  K
  1326.5362    75384.299       30     Pt II    18097- 93482  09
  1326.8620    75365.788      810     Pt II        0- 75365  K
  1326.9041    75363.397      250     Pt II    29261-104625  K
  1327.0301    75356.241      250     Pt II    23461- 98817  08
  1327.0833    75353.220      800     Pt II    24879-100232  K
  1327.1146    75351.443       44 U   Pt II    32237-107588  K
  1327.4314    75333.458    18000     Pt II    23875- 99209  08
Character descriptor definitions (appear to right of intensity)
Code definitions

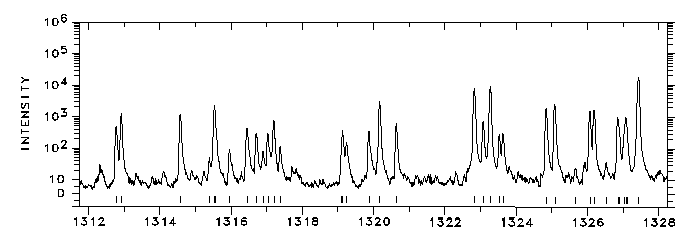

Photoelectric spectrum

1312-1328 Å

                      WAVELENGTH (ANGSTROMS) - VACUUM

A PostScript file is available.
