Spectrum of Platinum homepage

Lines and intensities in the range 1328-1344 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  1328.7227    75260.248     1600     Pt II    13329- 88589  K
  1329.1748    75234.649      830     Pt II    21168- 96403  K
  1329.3385    75225.385      320     Pt II    15791- 91016  K
  1329.9067    75193.245     2900     Pt II    23875- 99068  K
  1330.0547    75184.880     7700     Pt II        0- 75184  04
  1330.79      75143.3         42
  1331.2263    75118.708      440     Pt II    32918-108037  K
  1331.5606    75099.849      270     Pt II    18097- 93197  K
  1334.1414    74954.574     1100     Pt II    32237-107191  K
  1334.37      74941.7         49
  1335.6420    74870.362      120
  1335.7277    74865.558              C II
  1336.0355    74848.311      230
  1336.2452    74836.564      670     Pt II    36484-111320  K
  1337.2361    74781.110      530     Pt II    13329- 88110  K
  1337.8657    74745.916     4900     Pt II        0- 74745  05
  1338.2103    74726.670      850     Pt II    21717- 96443  K
  1338.5127    74709.788       54
  1338.5821    74705.915       64
  1338.95      74685.4         46
  1339.2328    74669.617       31     Pt II    32918-107588  K
  1339.3918    74660.753      320     Pt II    34647-109307  K
  1340.1393    74619.107     3000     Pt II        0- 74619  05
  1340.7443    74585.437      610     Pt II    21168- 95754  P
  1341.3300    74552.869      920     Pt II     8419- 82972  P
  1341.9630    74517.703       40
  1342.2101    74503.984       68
  1342.5224    74486.653     1500     Pt II    29030-103517  11
  1343.18      74450.2         21     Pt II    16820- 91271  K
  1343.3742    74439.423      650     Pt II    18097- 92537  K
  1343.4932    74432.831      930     Pt II    29030-103463  09
Character descriptor definitions (appear to right of intensity)
Code definitions

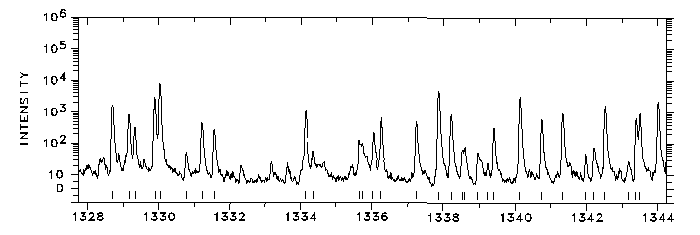

Photoelectric spectrum

1328-1344 Å

                      WAVELENGTH (ANGSTROMS) - VACUUM

A PostScript file is available.
