Lines and intensities in the range 1344-1360 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  1344.0117    74404.114     2100     Pt II     8419- 82824  K
  1344.2837    74389.059     1200     Pt II    21168- 95557  K
  1344.9807    74350.509       41
  1345.1936    74338.742       98
  1345.3272    74331.360     1500     Pt II    23461- 97792  K
  1345.4403    74325.111     6300     Pt II    23461- 97786  K
  1346.3867    74272.867      350     Pt II    32918-107191  K
  1346.7077    74255.165      170     Pt II    29261-103517  11
  1346.8846    74245.411      100
  1346.9559    74241.479     6800     Pt II        0- 74241  05
  1347.2391    74225.874      240
  1348.0380    74181.885       43
  1348.2704    74169.097     5900     Pt II    23461- 97630  08
  1348.5261    74155.035     1500     Pt II    34647-108802  K
  1348.8300    74138.327    14000     Pt II    27255-101394  K
  1349.1657    74119.881     3600     Pt II     4786- 78906  07
  1349.2366    74115.985     1700     Pt II     8419- 82535  P
  1349.7353    74088.601       37
  1349.8865    74080.302       53     Pt II    34647-108727  K
  1349.9301    74077.910       33     Pt II    32918-106996  K
  1350.2453    74060.617       29
  1350.8008    74030.161      420     Pt II    29030-103060  K
  1351.3531    73999.904     1000     Pt II        0- 73999  P
  1351.4248    73995.977       33     Pt II     9356- 83352  08
  1351.4965    73992.053       63     Pt II    34647-108639  K
  1351.6578    73983.223       66
  1352.0463    73961.964      200
  1352.4797    73938.264     1400     Pt II    24879- 98817  08
  1352.5501    73934.415       93     Pt II    32918-106852  K
  1352.7067    73925.856       53     Pt II    16820- 90746  K
  1352.8623    73917.353     1800     Pt II    23875- 97792  K
  1352.9768    73911.097    11000     Pt II    23875- 97786  K
  1353.6358    73875.115       63     Pt II    13329- 87204  K
  1353.8865    73861.435       33
  1353.9613    73857.355      600     Pt II    27255-101113  K
  1354.2487    73841.681      700 P   Pt II    29030-102872  K
  1354.2620    73840.955      650 P   Pt II    21717- 95557  K
  1354.4510    73830.652      130 W
  1354.7077    73816.660      280     Pt II    15791- 89607  08
  1355.0378    73798.679     1300     Pt II    29261-103060  K
  1355.7164    73761.739     6600     Pt II        0- 73761  06
  1355.8015    73757.110       43
  1356.26      73732.2         51
  1356.5142    73718.358       86     Pt II    36484-110202  K
  1356.6240    73712.392       50     Pt II    36484-110196  K
  1356.7144    73707.480       83     Ne III                 L
  1356.7905    73703.346       93
  1356.9559    73694.363       74 W   Ne III                 L
  1357.3073    73675.283      290     Pt II    34647-108322  K
  1358.10      73632.3         33
  1359.2060    73572.365       63     Pt II    18097- 91669  K
  1359.8046    73539.979      490     Pt II    27255-100795  09
Character descriptor definitions (appear to right of intensity)
Code definitions

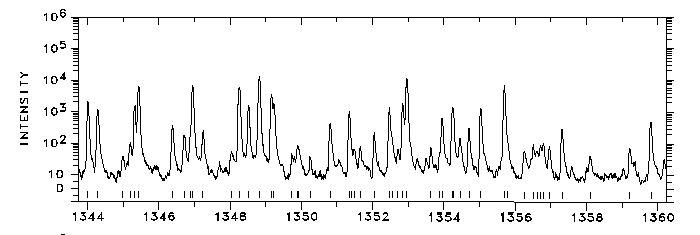

Photoelectric spectrum

1344-1360 Å

                      WAVELENGTH (ANGSTROMS) - VACUUM
