Spectrum of Platinum homepage

Lines and intensities in the range 1360-1376 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  1360.7247    73490.251      400 P   Pt II    29030-102520  K
  1360.7364    73489.619      250 U   Pt II    32237-105726  K
  1361.2009    73464.542      230     Pt II    21168- 94633  K
  1361.3317    73457.483      360
  1361.5367    73446.423     1500     Pt II    41434-114880  K
  1361.6039    73442.798      240     Pt II    37877-111320  K
  1362.5820    73390.079      730     Pt II    34647-108037  K
  1362.6878    73384.378     3200     Pt II    29030-102414  08
  1363.1360    73360.252     1200     Pt II    32237-105597  K
  1363.3059    73351.109    12000     Pt II    29261-102613  K
  1363.58      73336.4         59
  1364.0463    73311.295     2000     Pt II    32918-106229  K
  1364.1171    73307.491    11000     Pt II    24879- 98186  08
  1364.1837    73303.911      300 U   Pt II    15791- 89095  K
  1364.84      73268.7         68
  1365.0223    73258.876     1300     Pt II    29261-102520  K
  1365.0673    73256.461      350     Pt II     4786- 78043  K
  1366.6169    73173.396      140     Pt II    18097- 91271  K
  1366.88      73159.3         41
  1366.96      73155.0         38
  1367.7548    73112.520      390     Pt II    21717- 94829  K
  1367.8880    73105.400      130
  1368.03      73097.8         33
  1368.39      73078.6         45
  1368.8213    73055.555     2100     Pt II    29030-102086  11
  1369.05      73043.4         53
  1369.3682    73026.380     5900     Pt II        0- 73026  05
  1369.7039    73008.480     1300
  1369.88      72999.1         47
  1370.47      72967.7         62
  1370.5971    72960.902      870
  1370.98      72940.5         53
  1371.9971    72886.451      190     Pt II    29030-101916  08
  1372.7084    72848.684      520     Pt II    42031-114880  K
  1373.1724    72824.067    11000     Pt II    29261-102086  11
  1373.52      72805.6         95     Pt II    32237-105042  K
  1373.88      72786.6         80
  1374.06      72777.0         38
  1374.39      72759.6         27
  1374.62      72747.4         28
  1374.7784    72738.996      110     Pt II    34647-107386  K
  1374.8896    72733.113     5300     Pt II     4786- 77519  06
  1375.0230    72726.056      190     Ne III                 L
  1375.9177    72678.766       85     Pt II    32918-105597  K
Character descriptor definitions (appear to right of intensity)
Code definitions

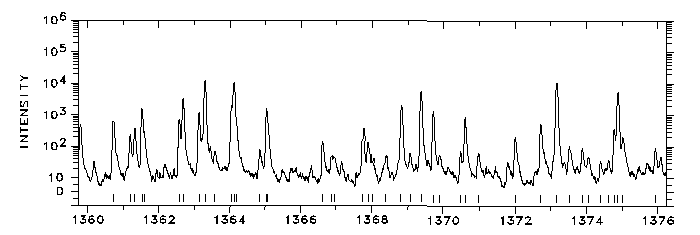

Photoelectric spectrum

1360-1376 Å

                      WAVELENGTH (ANGSTROMS) - VACUUM
