Spectrum of Platinum homepage

Lines and intensities in the range 1376-1392 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  1376.08      72670.2         40
  1376.3946    72653.584      150
  1376.4844    72648.844      780     Pt II    18097- 90746  K
  1376.7307    72635.847      730     Pt II    32918-105554  K
  1378.0080    72568.519     2700     Pt II    23875- 96443  K
  1378.36      72550.0        150
  1378.5216    72541.482      320     Pt II     9356- 81897  P
  1378.7824    72527.761      250     Pt II    23875- 96403  K
  1378.9572    72518.567    50000     Pt II    29030-101549  P
  1379.5267    72488.630      160
  1379.6093    72484.290      260
  1380.4782    72438.666     2400     Pt II     8419- 80858  08
  1381.5073    72384.71       470     Ne II                  C
  1381.8382    72367.371     1600     Pt II    29030-101397  07
  1382.0460    72356.492    41000     Pt II    29261-101618  16
  1382.1820    72349.372      800     Pt II    34647-106996  K
  1382.7626    72318.994      320     Pt II    15791- 88110  K
  1382.9080    72311.388      620     Pt II    29030-101341  08
  1383.2676    72292.592     4700     Pt II    23461- 95754  P
  1383.9627    72256.283      550
  1384.2063    72243.567      150     Pt II    36484-108727  K
  1384.7471    72215.353      800     Pt II    27255- 99471  K
  1384.89      72207.9         85     Pt II    37877-110085  K
  1385.9355    72153.43       270     Ne II                  C
  1386.2265    72138.283      390
  1386.50      72124.1        130     Pt II    32918-105042  K
  1387.0350    72096.234      160     Pt II    23461- 95557  K
  1387.3493    72079.900      390     Pt II    29261-101341  08
  1387.5158    72071.25      1600     Ne II                  C
  1387.6616    72063.68       130     Ne II                  C
  1388.34      72028.5         77     Pt II    21168- 93197  K
  1388.4901    72020.68       400     Ne II                  C
  1389.27      71980.2         27
  1389.8750    71948.916     5400     Pt II        0- 71948  05
  1390.17      71933.6         59
  1390.3982    71921.842      190     Pt II    32237-104158  K
  1390.87      71897.4         91
  1391.09      71886.1         53
  1391.2877    71875.860     1300 P   Pt II    37877-109753  K
  1391.3435    71872.975     1600 P   Pt II    29030-100903  09
  1391.7029    71854.42       610     Ne II                  C
  1391.8544    71846.59      1100     Ne II                  C
Character descriptor definitions (appear to right of intensity)
Code definitions

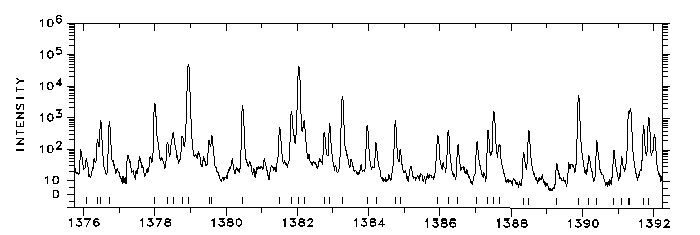

Photoelectric spectrum

1376-1392 Å

                      WAVELENGTH (ANGSTROMS) - VACUUM
