Lines and intensities in the range 1440-1456 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  1440.10      69439.6         72
  1440.51      69419.9         37
  1440.6635    69412.462     1000     Pt II    36484-105896  K
  1441.1876    69387.22       200     Ne II                  C
  1441.28      69382.8        130
  1442.0911    69343.747      590     Pt II     8419- 77763  K
  1442.57      69320.7         71
  1442.7150    69313.759      230     Pt II    37877-107191  K
  1442.8676    69306.428      360     Pt II    23461- 92767  K
  1443.0133    69299.431      360     Pt II    21717- 91016  K
  1443.25      69288.1        330     Pt II    23461- 92749  K
  1444.0351    69250.394     2100     Pt II    41434-110684  K
  1444.38      69233.9         40
  1444.71      69218.0        100
  1445.01      69203.7        240     Pt II    41434-110638  K
  1445.34      69187.9         53     Pt II    27255- 96443  K
  1445.9958    69156.492     2600     Pt II    29030- 98186  09
  1446.2820    69142.809     6900     Pt II    24879- 94022  P
  1446.7921    69118.431      420     Pt II     8419- 77538  K
  1446.9019    69113.186     2300     Pt II    36484-105597  K
  1447.43      69088.0         37
  1447.8030    69070.171    16000     Pt II    36484-105554  K
  1448.04      69058.9        190
  1449.16      69005.5         98     Pt II    16820- 85826  K
  1449.8015    68974.960     2200     Pt II     4786- 73761  A
  1449.8015    68974.960     2200     Pt II    37877-106852  AK
  1450.22      68955.1        120
  1450.55      68939.4         83
  1450.8523    68925.004      320     Pt II    29261- 98186  09
  1451.5382    68892.434      950     Pt II    23875- 92767  K
  1451.8840    68876.026     1800     Pt II    32237-101113  K
  1452.0129    68869.911     1300     Pt II    34647-103517  12
  1452.49      68847.3        300
  1453.1486    68816.089      350     Pt II    34647-103463  11
  1453.5678    68796.241      870
  1453.81      68784.8         36
  1454.0865    68771.700      350
  1454.1586    68768.290      940     Pt II    41434-110202  K
  1454.2866    68762.237    12000     Pt II    29030- 97792  AK
  1454.2866    68762.237    12000     Pt II    41434-110196  AK
  1454.72      68741.8         32
  1454.97      68729.9        110
  1455.8872    68686.640     1600     Pt II     9356- 78043  P
Character descriptor definitions (appear to right of intensity)
Code definitions

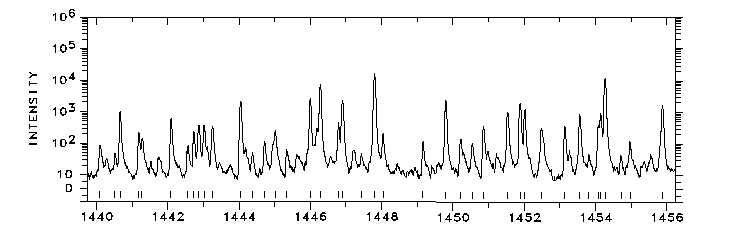

Photoelectric spectrum

1440-1456 Å

                      WAVELENGTH (ANGSTROMS) - VACUUM
