Spectrum of Platinum homepage

Lines and intensities in the range 1456-1472 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  1456.6294    68651.642      620     Pt II    41434-110085  K
  1457.5951    68606.158     1700     Pt II    42031-110638  K
  1457.6721    68602.533     8900     Pt II    24879- 93482  11
  1457.99      68587.6         89
  1458.3973    68568.421      330     Pt II    13329- 81897  P
  1458.6050    68558.659     2800     Pt II    32237-100795  09
  1459.46      68518.5        110     Ne III                 L
  1459.6348    68510.288     1800     Pt II    43737-112247  K
  1460.1052    68488.216      620     Ne III                 L
  1460.2955    68479.289     2800     Pt II    32918-101397  08
  1460.45      68472.0        140
  1460.7751    68456.807     1900     Pt II    24879- 93336  08
  1461.0786    68442.588    16000     Pt II    24879- 93322  K
  1461.24      68435.0        380     Ne III                 L
  1461.4903    68423.306     3000     Pt II    32918-101341  09
  1461.7043    68413.290     1400     Pt II    34647-103060  K
  1462.16      68392.0         49     Pt II    18097- 86489  K
  1462.35      68383.1        170
  1462.5295    68374.688     2100     Pt II    32237-100611  09
  1462.6591    68368.633    16000     Pt II    29261- 97630  09
  1463.7090    68319.591     1000     Pt II    41434-109753  K
  1464.0013    68305.950     2000
  1464.0855    68302.022      350     Pt II    27255- 95557  K
  1464.1508    68298.976     3900     Pt II    41434-109733  K
  1466.37      68195.6         94
  1466.4859    68190.223       71     Pt II     8419- 76610  05
  1467.0387    68164.528      370 P   Pt II    42031-110196  K
  1467.0619    68163.450      390 P   Pt II     9356- 77519  05
  1468.28      68106.9        140
  1468.39      68101.8        140
  1468.5551    68094.142     2000     Pt II    41434-109528  K
  1468.98      68074.4        110
  1469.2036    68064.086     3800     Pt II    36484-104548  K
  1469.44      68053.1        140
  1469.70      68041.1        140
  1469.86      68033.7        120
  1470.1835    68018.720     1800     Pt II    37877-105896  K
  1470.5360    68002.414      630     Pt II    32237-100239  08
  1470.64      67997.6        260
  1470.9150    67984.893     4300     Pt II    32918-100903  10
  1471.0423    67979.011     2500     Pt II    43737-111716  K
  1471.7535    67946.161     2300
Character descriptor definitions (appear to right of intensity)
Code definitions

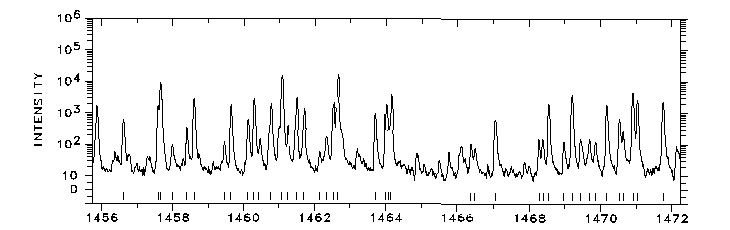

Photoelectric spectrum

1456-1472 Å

                      WAVELENGTH (ANGSTROMS) - VACUUM

A PostScript file is available.
