Spectrum of Platinum homepage

Lines and intensities in the range 1472-1488 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  1473.0500    67886.358      390     Ne III                 L
  1473.2508    67877.105     4900     Pt II    32918-100795  10
  1473.3251    67873.683     4000     Pt II    41434-109307  AK
  1473.3251    67873.683     4000     Pt II    34647-102520  AK
  1473.5757    67862.140      220
  1473.8839    67847.949      510 L   Pt II    37877-105726  K
  1474.1931    67833.719     1300     Pt I       823- 68657  N
  1474.82      67804.9        150
  1475.3526    67780.407      230     Pt II        0- 67780  K
  1475.6306    67767.636    22000     Pt II    34647-102414  09
  1475.9603    67752.50      2300     Ne II                  C
  1476.0474    67748.502      230
  1476.2492    67739.241     3100     Pt II    46046-113785  K
  1476.6290    67721.818     2100     Pt II    42031-109753  K
  1476.6796    67719.497      800     Pt II    37877-105597  K
  1477.2547    67693.134     5700     Pt II    32918-100611  09
  1477.5666    67678.844      270
  1477.66      67674.6        120     Pt II    36484-104158  K
  1478.0338    67657.451     8400     Pt II    24879- 92537  K
  1478.2534    67647.401     1100     Pt II    24879- 92526  K
  1478.9117    67617.289     5700     Pt II    43737-111354  K
  1479.21      67603.7        270
  1479.3896    67595.446      330
  1479.6034    67585.679     2300
  1479.8588    67574.015      280     Pt II    27255- 94829  K
  1480.1489    67560.771     1000     Pt II    32237- 99797  08
  1480.44      67547.5        190
  1480.8980    67526.595      350
  1481.05      67519.7        120     Pt I       823- 68343  N
  1481.5602    67496.414      760     Pt II    42031-109528  K
  1481.85      67483.2        130     Ne III                 L
  1482.3623    67459.892      140
  1482.7280    67443.253      450     Pt I       823- 68266  N
  1482.8256    67438.813    68000     Pt II    34647-102086  13
  1483.5029    67408.02       350     Ne II                  C
  1483.5530    67405.748      900
  1483.7704    67395.872      200     Pt II    23875- 91271  K
  1484.2254    67375.211      240
  1485.4237    67320.860      270     Pt II    32918-100239  08
  1485.81      67303.4        110
  1486.0308    67293.356     8000     Pt II    41434-108727  K
  1486.2117    67285.165      190     Pt II    23461- 90746  K
  1487.3425    67234.010      460     Pt II    32237- 99471  K
  1487.8620    67210.534      940
  1487.9804    67205.186     4100     Pt II    41434-108639  K
Character descriptor definitions (appear to right of intensity)
Code definitions

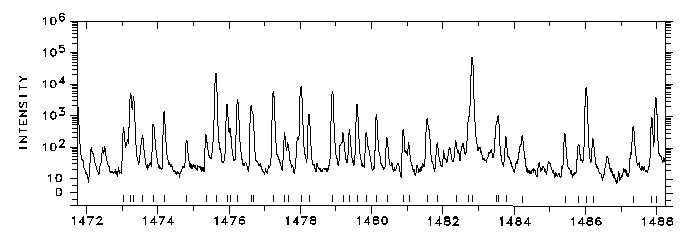

Photoelectric spectrum

1472-1488 Å

                      WAVELENGTH (ANGSTROMS) - VACUUM

A PostScript file is available.
