Spectrum of Platinum homepage

Lines and intensities in the range 1488-1504 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  1488.5058    67181.465      310     Pt II    15791- 82972  P
  1488.8805    67164.558     2500     Pt II    37877-105042  K
  1488.9770    67160.205     3800
  1489.4179    67140.324     1200     Pt II    37877-105018  K
  1489.83      67121.8         88     Pt I         0- 67121  N
  1490.27      67101.9        120
  1490.41      67095.6        110
  1490.91      67073.1         89
  1491.23      67058.7         55     Ne III                 L
  1491.34      67053.8        230
  1491.39      67051.5        190
  1491.5097    67046.161      910
  1491.8030    67032.980     2900     Pt II    36484-103517  A
  1491.8030    67032.980     2900     Pt II    15791- 82824  AK
  1491.9735    67025.319    10000     Pt II    43737-110762  K
  1492.55      66999.4        270
  1492.9990    66979.282     5300     Pt II    36484-103463  12
  1493.1612    66972.004     2800     Pt II    32237- 99209  09
  1493.3508    66963.503      460
  1493.6249    66951.214      210
  1493.7402    66946.046     1100     Pt II     8419- 75365  K
  1493.8391    66941.614      360     Pt II    21168- 88110  K
  1494.7256    66901.912    79000     Pt II    34647-101549  P
  1495.0297    66888.303     2000     Pt II    41434-108322  K
  1495.2328    66879.217      440     Pt II    32918- 99797  08
  1495.4014    66871.677     4900     Pt II    43737-110609  K
  1495.4796    66868.181     1000     Pt II    13329- 80197  K
  1495.6544    66860.366      320
  1495.9363    66847.766     3300     Pt II    29261- 96109  K
  1496.2958    66831.705     2200     Pt II    32237- 99068  K
  1496.63      66816.8        300
  1497.2192    66790.487     1300     Pt II    24879- 91669  K
  1498.1132    66750.629    42000     Pt II    34647-101397  09
  1498.2508    66744.500      730     Pt II    15791- 82535  P
  1498.7213    66723.546      830     Pt II    29030- 95754  P
  1498.8389    66718.311     3300
  1499.0024    66711.04       630     Ne II                  C
  1499.3707    66694.646    73000     Pt II    34647-101341  09
  1499.9177    66670.325      880     Pt II    37877-104548  K
  1500.5854    66640.659     3000     Pt II    42031-108672  K
  1501.3350    66607.386     4100     Pt II    42031-108639  K
  1501.4245    66603.416     3600 D   Pt II    41434-108038  AK
  1501.4245    66603.416     3600 D   Pt II    41434-108037  AK
  1501.7275    66589.977     1400     Pt I       823- 67413  N
  1502.9149    66537.367     1600
  1503.0507    66531.357      290     Pt II    16820- 83352  09
  1503.1269    66527.983      300     Pt II     4786- 71314  06
  1503.3439    66518.380      970
  1503.80      66498.2        300
Character descriptor definitions (appear to right of intensity)
Code definitions

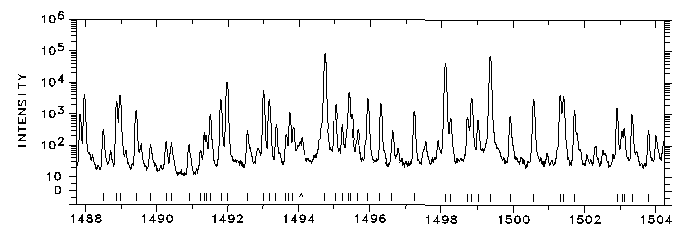

Photoelectric spectrum

1488-1504 Å

                      WAVELENGTH (ANGSTROMS) - VACUUM
