Spectrum of Platinum homepage

Lines and intensities in the range 1504-1520 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  1504.02      66488.5        200
  1504.23      66479.2        130
  1504.5514    66464.994     2300     Pt II    43737-110202  K
  1505.04      66443.4        160
  1505.2462    66434.315    58000     Pt II        0- 66434  06
  1506.1480    66394.538      120
  1506.2923    66388.177    43000     Pt II    36484-102872  K
  1507.04      66355.2        130     Pt II    29261- 95617  K
  1507.26      66345.6        150     Pt I       775- 67121  N
  1507.4998    66335.001      840     Pt II     8419- 74754  08
  1507.6288    66329.325    13000     Pt II    43737-110066  K
  1508.0257    66311.867      280
  1508.3427    66297.931      600     Pt I       823- 67121  N
  1508.5129    66290.450     4400     Pt II    32918- 99209  10
  1508.7309    66280.872     2500     Pt II    37877-104158  K
  1508.7910    66278.233     2300     Pt II    13329- 79607  06
  1509.2920    66256.233   260000     Pt II    34647-100903  10
  1509.75      66236.1        240
  1510.2478    66214.299      180     Pt II    37877-104092  K
  1510.2961    66212.182      200
  1510.5903    66199.285     1300     Pt II     8419- 74619  05
  1510.7023    66194.379     1800     Pt II    36484-102678  K
  1511.2021    66172.486     3300
  1511.6233    66154.048     1600     Pt II    41434-107588  K
  1511.9871    66138.130      180
  1512.0895    66133.652     2800
  1513.56      66069.4        250
  1514.3107    66036.646      290 P   Pt II    36484-102520  K
  1514.3325    66035.696      300 P   Pt II    21168- 87204  K
  1514.5087    66028.014     5800     Pt II        0- 66028  06
  1515.0089    66006.213     4600     Pt II    42031-108038  K
  1515.2502    65995.702     4700     Pt II    43737-109733  K
  1515.45      65987.0        170
  1515.9776    65964.035      560     Pt II    29261- 95226  K
  1516.27      65951.3         90
  1516.7411    65930.829     6400     Pt II    36484-102414  10
  1517.01      65919.1         46
  1517.4695    65899.183     7500     Pt II    32918- 98817  10
  1517.9314    65879.130     1200
  1518.06      65873.5        160
  1518.5424    65852.623      690     Pt I         0- 65852  N
  1519.27      65821.1         65
  1519.48      65812.0        140     Pt II    29030- 94842  K
  1519.5970    65806.921     3500
Character descriptor definitions (appear to right of intensity)
Code definitions

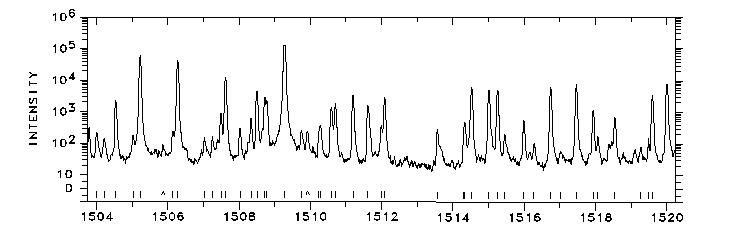

Photoelectric spectrum

1504-1520 Å

                      WAVELENGTH (ANGSTROMS) - VACUUM

A PostScript file is available.
