Spectrum of Platinum homepage

Lines and intensities in the range 1520-1536 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  1520.0051    65789.253     7800
  1520.6130    65762.952      250     Pt II    13329- 79092  K
  1520.6947    65759.419     1800     Pt II    37877-103637  K
  1520.7414    65757.400    13000     Pt II    41434-107191  K
  1521.3202    65732.383      760     Pt II    23875- 89607  11
  1521.73      65714.7        210     Pt II    16820- 82535  K
  1521.92      65706.5        130
  1522.7759    65669.545      410
  1523.0737    65656.705      690     Pt I       775- 66432  N
  1523.6106    65633.568      390     Pt II    23461- 89095  K
  1524.3266    65602.739      290     Pt II    29030- 94633  K
  1524.5715    65592.200    59000     Pt II    34647-100239  09
  1524.7295    65585.404   370000     Pt II    37877-103463  A
  1524.7295    65585.404   370000     Pt II    34647-100232  AK
  1524.8543    65580.036     2500     Pt II     8419- 73999  P
  1525.0764    65570.486     2600     Pt II    43737-109307  K
  1525.2635    65562.442     2000     Pt II    41434-106996  K
  1525.3983    65556.648     4000 W
  1525.5656    65549.459      250     Pt II    32237- 97786  K
  1525.7082    65543.333      980     Pt II    37877-103421  K
  1526.20      65522.2        120
  1526.4320    65512.253      250     Pt II    27255- 92767  K
  1526.4791    65510.232     1100     Pt I         0- 65510  N
  1526.64      65503.3        290
  1526.8391    65494.786      970
  1528.2831    65432.902    31000     Pt II    36484-101916  10
  1528.5153    65422.963      600     Pt I       775- 66198  N
  1528.6138    65418.747      220     Pt II    41434-106852  K
  1529.1766    65394.671      150     Pt II     4786- 70181  07
  1529.2942    65389.642      700     Pt II     9356- 74745  04
  1529.4582    65382.630     1700
  1530.1969    65351.069    25000     Pt II        0- 65351  06
  1530.66      65331.3        110
  1530.9006    65321.027      420     Pt II    21168- 86489  K
  1531.5395    65293.778     4500     Pt II    24879- 90173  K
  1532.1348    65268.410     1200     Pt II    32918- 98186  10
  1532.2657    65262.833     1200     Pt II     9356- 74619  04
  1532.4605    65254.536      490     Pt II    18097- 83352  10
  1532.8689    65237.151      510
  1533.08      65228.2        160
  1533.2843    65219.477      480     Pt II    23875- 89095  K
  1534.12      65183.9         76
  1534.2271    65179.399      320
  1534.6947    65159.540     1700     Pt II    42031-107191  K
  1534.9063    65150.557    40000     Pt II    34647- 99797  09
  1535.4357    65128.094     1000     Pt II    23461- 88589  K
  1535.5495    65123.267      450     Pt II    13329- 78452  K
  1535.8589    65110.148      740
Character descriptor definitions (appear to right of intensity)
Code definitions

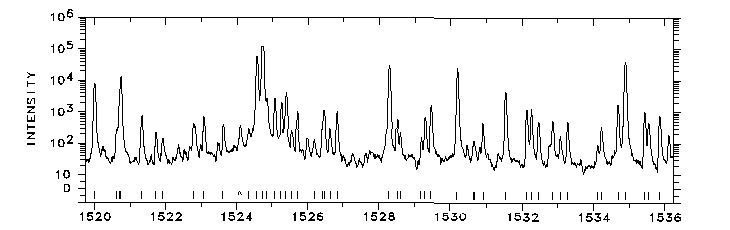

Photoelectric spectrum

1520-1536 Å

                      WAVELENGTH (ANGSTROMS) - VACUUM

A PostScript file is available.
