Lines and intensities in the range 1536-1552 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  1536.12      65099.1        170
  1536.6474    65076.738      550     Pt II    16820- 81897  K
  1536.7059    65074.261      790     Pt I       775- 65850  N
  1536.9303    65064.759      690     Pt II    43737-108802  K
  1537.7781    65028.888     1600     Pt I       823- 65852  N
  1538.1989    65011.098      560 W
  1538.6968    64990.062     1600     Pt II    43737-108727  K
  1538.8457    64983.773      810     Pt II    24879- 89863  P
  1539.2945    64964.826      450
  1539.7316    64946.384      760     Pt II    32237- 97183  K
  1540.0916    64931.203      350
  1540.5040    64913.822    21000     Pt II    36484-101397  09
  1540.6585    64907.311      110
  1540.73      64904.3        170     Pt I         0- 64904  N
  1541.1327    64887.339      260
  1541.5940    64867.922     3200     Pt II    32918- 97786  K
  1541.8337    64857.839    25000 L   Pt II    36484-101341  10
  1542.4651    64831.289      270
  1542.7098    64821.005    12000     Pt II    42031-106852  K
  1543.1986    64800.474      800     Pt II    37877-102678  K
  1543.2521    64798.227     1500
  1543.3098    64795.804     2500     Pt II    41434-106229  K
  1543.4274    64790.867      460 W
  1544.1529    64760.426     6200     Pt II    29261- 94022  P
  1544.4116    64749.578      940
  1544.53      64744.6        160
  1544.7755    64734.326      420     Pt I       775- 65510  N
  1545.1807    64717.350     3200
  1545.2656    64713.794      600     Pt II    13329- 78043  P
  1545.3155    64711.705      400     Pt II    23461- 88173  K
  1545.65      64697.7         93
  1545.9171    64686.522      160     Pt I       823- 65510  N
  1546.0370    64681.505      240
  1546.1695    64675.962      490     Pt I         0- 64675  N
  1546.8248    64648.563    17000     Pt II    23461- 88110  K
  1546.9433    64643.610      200     Pt II     9356- 73999  K
  1547.0765    64638.045      450     Pt II    46046-110684  K
  1547.6250    64615.136      520
  1547.8305    64606.558      200     Pt II     8419- 73026  06
  1548.12      64594.5        180     Pt II    18097- 82692  K
  1548.3465    64585.027     2200     Pt II    43737-108322  K
  1548.9038    64561.790     8700     Pt II    34647- 99209  10
  1549.4972    64537.065     9100     Pt II    37877-102414  11
  1550.0109    64515.675     1200     Pt I         0- 64515  N
  1550.49      64495.7         67
  1551.2918    64462.405     2000     Pt II    41434-105896  K
  1551.3635    64459.426      250
  1551.5534    64451.535       70     Pt II    29030- 93482  12
  1551.99      64433.4        100
Character descriptor definitions (appear to right of intensity)
Code definitions

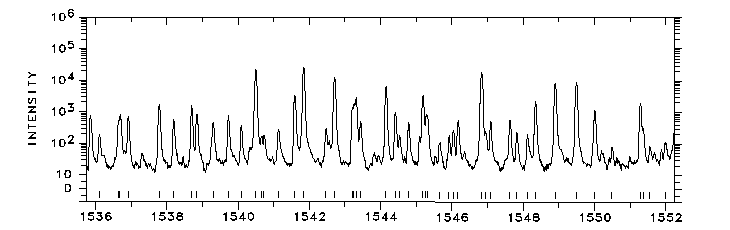

Photoelectric spectrum

1536-1552 Å

                      WAVELENGTH (ANGSTROMS) - VACUUM
