Spectrum of Platinum homepage

Lines and intensities in the range 1552-1568 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  1552.3268    64419.426    45000     Pt II    36484-100903  11
  1552.7442    64402.108     1400
  1552.9982    64391.575      180
  1553.0689    64388.642     4500     Pt II        0- 64388  07
  1553.5288    64369.582     1300
  1554.7412    64319.386     2200     Pt I         0- 64319  N
  1554.9285    64311.638    80000     Pt II    36484-100795  11
  1555.2133    64299.862      300     Pt II    43737-108037  K
  1555.70      64279.7        120
  1556.0618    64264.800      780     Pt II    32918- 97183  K
  1556.1592    64260.777     1300
  1556.3424    64253.213      540
  1556.45      64248.8        150     Pt I         0- 64248  N
  1556.79      64234.7        260     Pt II    23875- 88110  K
  1557.0904    64222.347      180
  1557.1462    64220.046     2000     Pt II    29261- 93482  13
  1557.4129    64209.048      400     Pt II    13329- 77538  K
  1557.4721    64206.608      450 D   Pt II    32237- 96443  K
  1558.3479    64170.523    12000     Pt II    34647- 98817  11
  1558.5216    64163.371     4700     Pt II    41434-105597  K
  1558.76      64153.6         81
  1559.2806    64132.139      280
  1559.3893    64127.667    16000     Pt II    36484-100611  10
  1559.5696    64120.255     2800     Pt II    41434-105554  K
  1560.3614    64087.717     1100
  1560.5351    64080.584     6000     Pt I       823- 64904  N
  1560.6822    64074.544              C I                    B
  1561.0312    64060.219     5800     Pt II    29261- 93322  K
  1561.4384    64043.513              C I                    B
  1561.5450    64039.141    17000     Pt II    37877-101916  A
  1561.5450    64039.141    17000     Pt II    46046-110085  AK
  1562.3865    64004.649      270
  1562.8201    63986.891      360
  1563.14      63973.8         64
  1563.56      63956.6        140
  1564.87      63903.1         69
  1565.32      63884.7        210
  1565.8087    63864.762     1300     Pt II    42031-105896  K
  1565.91      63860.6        220
  1566.1156    63852.247     1800     Pt I       823- 64675  N
  1566.37      63841.9        100
  1566.46      63838.2        150
  1566.7334    63827.069     8000 P
  1566.7475    63826.494     5800 U   Pt I         0- 63826  N
  1567.01      63815.8        120     Pt II    15791- 79607  K
  1567.1682    63809.360      290
  1567.41      63799.5        140     Pt II    18097- 81897  K
  1567.5248    63794.84       990     Ne II                  C
Character descriptor definitions (appear to right of intensity)
Code definitions

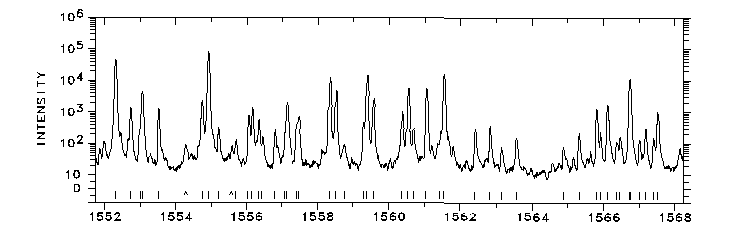

Photoelectric spectrum

1552-1568 Å

                      WAVELENGTH (ANGSTROMS) - VACUUM
