Spectrum of Platinum homepage

Lines and intensities in the range 1568-1584 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  1568.3594    63760.896      380     Pt II    27255- 91016  K
  1568.4948    63755.393     7200     Pt II    36484-100239  09
  1568.9021    63738.841    11000     Pt II        0- 63738  06
  1568.92      63738.1      11000
  1569.09      63731.2        230
  1569.6106    63710.069      260     Pt II    24879- 88589  K
  1569.7820    63703.113      710
  1570.30      63682.1         64
  1570.75      63663.9        170     Ne III                 L
  1570.9275    63656.661     1500     Pt II    48591-112247  K
  1571.1196    63648.878     2900     Pt II    43737-107386  K
  1571.8842    63617.918      570     Pt II   117493- 53875  K
  1572.1223    63608.283     1700     Pt II    41434-105042  K
  1572.1752    63606.143     1000
  1572.56      63590.6        110     Ne III                 L
  1572.7201    63584.105     1600     Pt II    41434-105018  K
  1573.1802    63565.509    11000     Pt II    42031-105597  K
  1573.8180    63539.750    17000     Pt II    34647- 98186  10
  1574.0819    63529.094      610     Pt II     8419- 71948  06
  1574.3059    63520.058    82000     Pt II    37877-101397  10
  1574.4002    63516.252     5500     Pt II    37877-101394  K
  1574.6393    63506.608      540     Pt II    29030- 92537  K
  1574.9089    63495.736     3500     Pt I       823- 64319  N
  1575.30      63480.0        110
  1575.4706    63473.098      490     Pt I       775- 64248  N
  1575.62      63467.1        130
  1575.86      63457.4        170
  1576.48      63432.5         55
  1576.88      63416.4        200
  1577.07      63408.7         74
  1577.2202    63402.688      710
  1577.3573    63397.177      220
  1577.8723    63376.485     1400     Pt II    16820- 80197  K
  1578.17      63364.5        300
  1578.55      63349.3         37
  1578.75      63341.3        140
  1579.15      63325.2         61
  1579.4357    63313.750    32000     Pt II    36484- 99797  09
  1579.9278    63294.032      550 P   Pt II    24879- 88173  K
  1579.9481    63293.218      300 U
  1580.4001    63275.116     1200     Pt II    29261- 92537  K
  1580.6548    63264.920      700     Pt II    29261- 92526  K
  1580.7121    63262.627     1000
  1580.8013    63259.057     3000 P   Pt II    43737-106996  K
  1580.8322    63257.821     1800 P   Pt II    43737-106995  K
  1581.3980    63235.188    37000     Pt II    37877-101113  K
  1583.0953    63167.391     1100     Pt I         0- 63167  N
  1583.6406    63145.641     5200     Pt II    34647- 97792  K
  1583.8462    63137.444      380
  1583.9753    63132.298      160     Pt II    13329- 76461  07
Character descriptor definitions (appear to right of intensity)
Code definitions

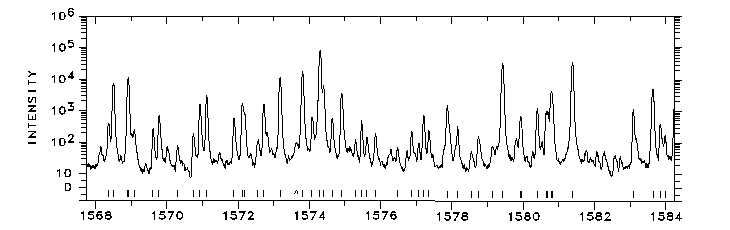

Photoelectric spectrum

1568-1584 Å

                      WAVELENGTH (ANGSTROMS) - VACUUM

A PostScript file is available.
