Spectrum of Platinum homepage

Lines and intensities in the range 1584-1600 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  1584.2474    63121.454     1900     Pt I       823- 63945  N
  1584.46      63113.0        120
  1584.6252    63106.405      280
  1584.7233    63102.499      380
  1585.13      63086.3        160
  1585.42      63074.8        410     Ne III                 L
  1585.68      63064.4        310     Ne III                 L
  1586.0312    63050.462      570     Pt I       775- 63826  N
  1586.47      63033.0         75     Ne III                 L
  1586.59      63028.3        220     Pt II    23461- 86489  K
  1587.0368    63010.511     2200     Pt II    42031-105042  K
  1587.4559    62993.876     2000     Pt II     4786- 67780  K
  1587.6482    62986.246     2500     Pt II    18097- 81083  AK
  1587.6482    62986.246     2500     Pt II    42031-105018  AK
  1587.7205    62983.379    16000     Pt II    34647- 97630  11
  1588.1904    62964.743      270
  1588.6920    62944.863     2300     Pt II     8419- 71364  K
  1589.3735    62917.874    17000     Pt II    37877-100795  12
  1589.8128    62900.487      400
  1590.9851    62854.140     3100
  1591.5069    62833.532      390
  1591.8192    62821.205      500
  1592.29      62802.6        130
  1592.6974    62786.566      250     Pt II    16820- 79607  07
  1593.7073    62746.779      420
  1594.0344    62733.903    15000     Pt II    37877-100611  11
  1594.2611    62724.983    14000     Pt II    36484- 99209  11
  1594.47      62716.8         54
  1594.9347    62698.492      270     Pt II    32918- 95617  K
  1595.1388    62690.469      460     Pt I       775- 63466  N
  1595.34      62682.6        100
  1595.8834    62661.220     1100     Pt II    15791- 78452  K
  1595.9644    62658.039     2900     Pt II    41434-104092  K
  1596.3988    62640.99       450     Ne II                  C
  1596.4379    62639.455     1100     Pt II    29030- 91669  K
  1596.7767    62626.164     2000     Pt II    46046-108672  K
  1597.30      62605.6        110     Pt II    32237- 94842  K
  1597.6295    62592.735     1100     Pt II     9356- 71948  A
  1597.6295    62592.735     1100     Pt II    32237- 94829  AK
  1597.8343    62584.712     3500     Pt II    36484- 99068  K
  1597.9705    62579.38      3300     Ne II                  C
  1598.11      62573.9        150
  1598.34      62564.9         82
  1599.14      62533.6         80
  1599.5835    62516.274      570     Pt II    42031-104548  K
  1599.7339    62510.396      430     Pt I         0- 62510  N
Character descriptor definitions (appear to right of intensity)
Code definitions

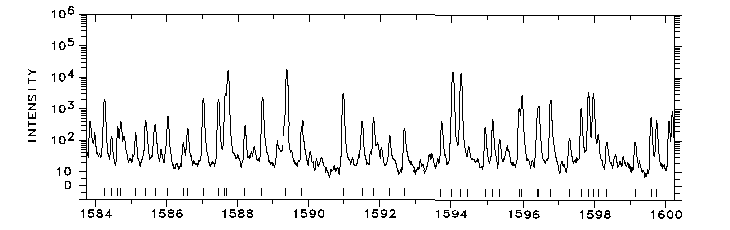

Photoelectric spectrum

1584-1600 Å

                      WAVELENGTH (ANGSTROMS) - VACUUM

A PostScript file is available.
