Lines and intensities in the range 1600-1616 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  1600.0814    62496.82       400     Ne II                  C
  1600.1934    62492.446      850     Pt II    43737-106229  K
  1600.94      62463.3         73     Pt II    15791- 78254  K
  1601.1825    62453.843      230
  1601.2962    62449.408      750
  1601.70      62433.7        230
  1602.09      62418.5         40
  1602.7837    62391.451     9500     Pt I       775- 63167  N
  1603.4612    62365.089      200     Pt II    23461- 85826  K
  1603.5502    62361.629     6600     Pt II    37877-100239  10
  1604.0102    62343.743    14000     Ne II                  A
  1604.0102    62343.743    14000     Pt I       823- 63167  AN
  1604.0927    62340.54       300     Ne II                  C
  1604.2682    62333.716     1100     Pt II    36484- 98817  11
  1604.5702    62321.985     1100     Pt I         0- 62321  N
  1604.7337    62315.635     4100     Ne III                 L
  1605.3536    62291.572     8800     Pt I       775- 63067  N
  1605.58      62282.8         63
  1606.1550    62260.492     1000
  1606.2741    62255.875     3700
  1606.54      62245.6         74
  1606.6658    62240.698      280     Pt II    29030- 91271  K
  1608.30      62177.5         72
  1608.5173    62169.05       220     Ne II                  C
  1609.6117    62126.785      200     Pt II    42031-104158  K
  1609.6647    62124.739      930
  1609.78      62120.3        270
  1609.8562    62117.349      190
  1610.0697    62109.112      800     Pt II    46046-108155  K
  1610.1405    62106.381     4800     Pt I         0- 62106  N
  1610.3173    62099.563      250     Pt II    18097- 80197  K
  1610.5649    62090.016      520     Pt I      6567- 68657  N
  1610.7448    62083.081     2600     Pt II    41434-103517  K
  1610.7907    62081.312     1900
  1611.2844    62062.290      600     Pt I         0- 62062  N
  1611.3397    62060.160      300     Pt II    42031-104092  K
  1611.8840    62039.204      280     Pt I      6567- 68606  N
  1611.9533    62036.537      250     Pt II    13329- 75365  K
  1612.0071    62034.466      440     Pt II    32237- 94271  K
  1612.44      62017.8         99     Pt II    48591-110609  K
  1612.5934    62011.912      330     Pt I       823- 62835  N
  1613.2389    61987.099     1200     Pt II    41434-103421  K
  1613.41      61980.5        230
  1613.9653    61959.201      800     Pt II     8419- 70379  08
  1613.9882    61958.320     4000     Pt II     9356- 71314  04
  1614.4078    61942.218     5200     Pt I         0- 61942  N
  1614.8843    61923.941     1300     Pt II    32918- 94842  K
  1614.9874    61919.986      350     Pt II    37877- 99797  10
  1615.3211    61907.196      630
  1615.59      61896.9         61
  1615.9441    61883.329      410     Pt I       775- 62659  N
Character descriptor definitions (appear to right of intensity)
Code definitions

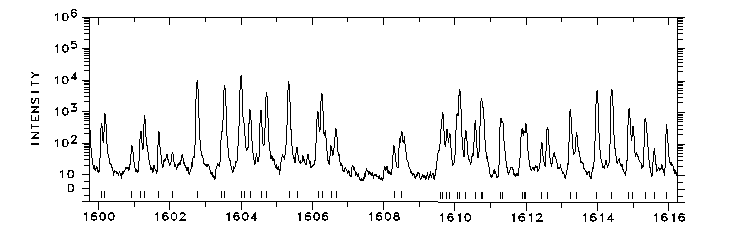

Photoelectric spectrum

1600-1616 Å

                      WAVELENGTH (ANGSTROMS) - VACUUM
