Spectrum of Platinum homepage

Lines and intensities in the range 1616-1632 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  1616.43      61864.7        350
  1617.0934    61839.347      410     Pt II    27255- 89095  K
  1617.25      61833.4         84
  1617.64      61818.5        140
  1617.7194    61815.417      250
  1618.0184    61803.994      580     Pt II    21168- 82972  P
  1619.2728    61756.117      930     Pt II    34647- 96403  K
  1619.62      61742.9        160
  1620.36      61714.7        140     Pt II    32918- 94633  K
  1620.6682    61702.943     6800     Pt II    36484- 98186  11
  1621.1049    61686.323     1100 D
  1621.1897    61683.096     4500     Pt II    50564-112247  K
  1621.6590    61665.247    33000 L   Pt II        0- 61665  A
  1621.6590    61665.247    33000 L   Pt II     9356- 71021  AK
  1622.1204    61647.704     5500     Pt II     4786- 66434  07
  1622.1824    61645.349     2000     Pt I         0- 61645  N
  1622.5440    61631.611      690     Pt II    16820- 78452  K
  1623.0259    61613.311      290
  1623.2360    61605.337      370     Pt II    42031-103637  K
  1623.5577    61593.130     1100     Pt II    37877- 99471  K
  1624.7988    61546.082     1200     Pt I       775- 62321  N
  1624.9144    61541.703     1400     Pt II    46046-107588  K
  1625.6270    61514.726              Al II
  1625.7587    61509.745      380     Pt II    18097- 79607  07
  1626.0619    61498.274      300     Pt I       823- 62321  N
  1626.4387    61484.026     2200     Pt II    34647- 96131  K
  1626.6610    61475.624      670     Pt II    48591-110066  K
  1627.33      61450.4         62
  1627.6535    61438.138     1900     Pt II    41434-102872  K
  1627.7656    61433.907      450     Pt II    16820- 78254  K
  1627.8299    61431.480     1300     Pt II    42031-103463  K
  1627.9003    61428.823      350
  1628.36      61411.5         75
  1628.9482    61389.306      320     Pt II    42031-103421  K
  1629.70      61361.0         79
  1630.4910    61331.219     6200 P   Pt II    37877- 99209  12
  1630.5063    61330.643     4600 U   Pt I       775- 62106  N
  1630.86      61317.3        240
  1631.0903    61308.684    32000     Pt II    36484- 97792  K
  1631.2626    61302.209      610
  1631.5907    61289.880      710     Pt II    13329- 74619  04
  1631.6826    61286.429      200     Pt I       775- 62062  N
  1631.7814    61282.718      740     Pt I       823- 62106  N
Character descriptor definitions (appear to right of intensity)
Code definitions

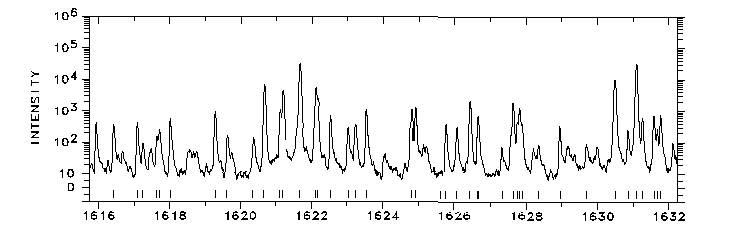

Photoelectric spectrum

1616-1632 Å

                      WAVELENGTH (ANGSTROMS) - VACUUM

A PostScript file is available.
