Spectrum of Platinum homepage

Lines and intensities in the range 1632-1648 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  1632.13      61269.6         87
  1632.8049    61244.304     1100     Pt II    41434-102678  K
  1633.3302    61224.607      340
  1634.2337    61190.759    46000     Pt II    37877- 99068  K
  1635.2734    61151.854      500     Pt II    50564-111716  K
  1635.4147    61146.572     4600     Pt II    36484- 97630  11
  1636.1647    61118.541    34000     Pt I       823- 61942  N
  1636.28      61114.2        310
  1636.7302    61097.425      850     Pt I         0- 61097  N
  1636.8152    61094.252     3200     Pt II    43737-104831  K
  1637.0168    61086.728     6200     Pt II    41434-102520  K
  1638.04      61048.6         40
  1638.18      61043.4        190     Ne III                 L
  1638.7331    61022.749      310     Pt II     9356- 70379  07
  1639.8606    60980.793     1300     Pt II    41434-102414  K
  1640.1553    60969.836     1300     Pt II    34647- 95617  K
  1640.41      60960.4        130     Pt II    32237- 93197  K
  1640.7691    60947.028      790     Pt II    24879- 85826  K
  1641.7317    60911.293     1100     Pt II    29261- 90173  K
  1642.15      60895.8         99     Pt II    24879- 85775  K
  1642.8597    60869.471      450     Pt I       775- 61645  N
  1643.11      60860.2        110
  1643.29      60853.5         70
  1644.1761    60820.736     1300     Pt II    24879- 85700  P
  1644.2292    60818.770     1100     Pt II    15791- 76610  04
  1644.3084    60815.843     7900     Pt II     8419- 69235  08
  1644.4634    60810.110    12000     Pt I       823- 61633  N
  1645.0044    60790.111     3400     Pt II    50564-111354  K
  1645.46      60773.3        170
  1645.69      60764.8        100
  1645.99      60753.7        200
  1646.31      60741.9         56
  1646.9762    60717.332      640     Pt II    16820- 77538  K
  1647.49      60698.4         75
  1647.83      60685.9        110
Character descriptor definitions (appear to right of intensity)
Code definitions

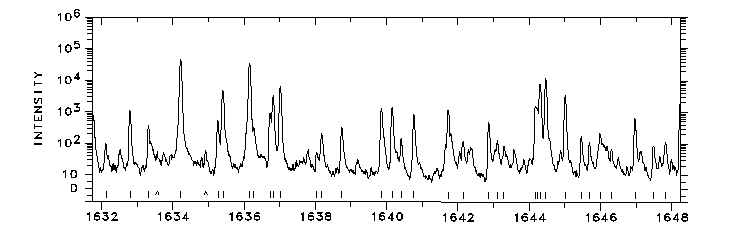

Photoelectric spectrum

1632-1648 Å

                      WAVELENGTH (ANGSTROMS) - VACUUM

A PostScript file is available.
