Spectrum of Platinum homepage

Lines and intensities in the range 1648-1664 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  1648.2494    60670.430     2100     Pt II    13329- 73999  P
  1648.9010    60646.455      390     Pt II    42031-102678  K
  1650.1301    60601.282      250     Pt II    29261- 89863  P
  1650.2455    60597.043     3100     Pt II     9356- 69953  04
  1650.7791    60577.457      320     Pt II    29030- 89607  12
  1651.03      60568.3         61
  1651.1608    60563.452      680     Pt II    32918- 93482  14
  1652.1112    60528.613     2700     Pt I       823- 61352  N
  1652.36      60519.5         41
  1652.4522    60516.123      370
  1652.5631    60512.062      240     Pt II    32237- 92749  K
  1652.96      60497.5         57
  1653.3618    60482.830      860     Pt II    41434-101916  K
  1653.66      60471.9         81
  1654.08      60456.6        140
  1654.2659    60449.774    26000
  1654.4140    60444.363      400
  1654.7384    60432.512     3900     Pt II    13329- 73761  07
  1654.9743    60423.899      500     Pt I         0- 60423  N
  1655.1434    60417.726     1300     Pt II    32918- 93336  11
  1655.97      60387.6        130
  1656.0959    60382.977     1400     Pt II    42031-102414  K
  1656.74      60359.5         60     Pt I      6567- 66927  N
  1656.9283    60352.641          U   C I                    B
  1656.9728    60351.021      400 U
  1657.0082    60349.732          P   C I                    B
  1657.6053    60327.992     3000     Pt I         0- 60328  N
  1657.85      60319.1        400
  1658.14      60308.5        190
  1659.4860    60259.623    20000     Pt II     4786- 65046  K
  1660.28      60230.8        170
  1660.78      60212.7         78
  1661.2608    60195.245     3500     Pt II    34647- 94842  K
  1662.32      60156.9         76     Pt II    18097- 78254  K
  1662.91      60135.5         46
Character descriptor definitions (appear to right of intensity)
Code definitions

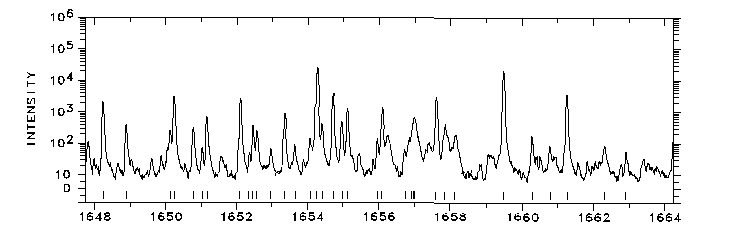

Photoelectric spectrum

1648-1664 Å

                      WAVELENGTH (ANGSTROMS) - VACUUM

A PostScript file is available.
