Spectrum of Platinum homepage

Lines and intensities in the range 1664-1680 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  1664.23      60087.8        120
  1664.6312    60073.366     1500     Pt II    50564-110638  K
  1665.4292    60044.582      250     Pt II    50564-110609  K
  1666.14      60019.0         70
  1667.0557    59985.998     1200     Pt II    34647- 94633  K
  1667.6740    59963.758     1300     Pt II    41434-101397  K
  1668.09      59948.8        110     Pt II    27255- 87204  K
  1668.1882    59945.275      330     Pt II    18097- 78043  P
  1668.3644    59938.944      450
  1668.9014    59919.657     3500 D   Pt II    36484- 96403  AK
  1668.9014    59919.657     3500 D   Pt I         0- 59920  A
  1668.9782    59916.900     8000     Pt I         0- 59916  N
  1669.0350    59914.861     6000     Pt II    37877- 97792  K
  1669.2312    59907.819    77000     Pt II    41434-101341  K
  1669.7070    59890.748       98     Pt II    23461- 83352  12
  1669.8647    59885.091     2500     Pt II    42031-101916  K
  1670.4235    59865.058     1400     Pt I      6567- 66432  N
  1670.7878    59852.005              Al II
  1670.8423    59850.053     1300     Pt II    46046-105896  K
  1670.98      59845.1        150
  1671.23      59836.2         47     Ne III                 L
  1671.40      59830.1        270     Ne III                 L
  1672.39      59794.7         99
  1672.5164    59790.146      370     Pt II    15791- 75581  07
  1673.09      59769.6        110
  1673.41      59758.2         64
  1673.51      59754.6        100
  1673.69      59748.2         86
  1674.02      59736.4         29
  1674.2916    59726.75       260     Ne II                  C
  1674.51      59719.0         97
  1674.77      59709.7         35     Pt I      6140- 65850  N
  1675.1218    59697.153      320     Pt II    13329- 73026  05
  1675.3280    59689.804      140     Pt II    21168- 80858  10
  1675.6133    59679.641      330     Pt II    46046-105726  K
  1676.0154    59665.323     6700     Pt I       775- 60441  N
  1676.1308    59661.215      820
  1676.7093    59640.632      560     Pt II    16820- 76461  07
  1676.9604    59631.700      640     Pt II    50564-110196  K
  1677.8443    59600.286    28000     Pt I       823- 60423  N
  1678.56      59574.9         57
  1678.7493    59568.156      310
  1679.02      59558.6         62
  1679.2007    59552.143     2300     Pt I       775- 60328  N
  1679.69      59534.8        130
  1679.8544    59528.969      450
Character descriptor definitions (appear to right of intensity)
Code definitions

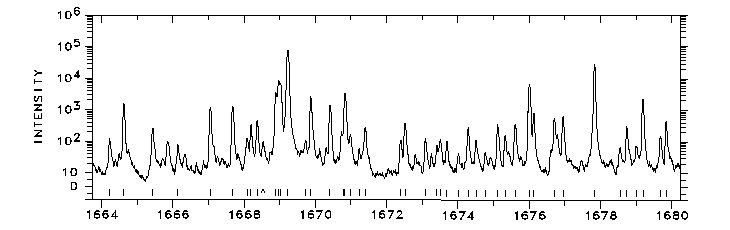

Photoelectric spectrum

1664-1680 Å

                      WAVELENGTH (ANGSTROMS) - VACUUM

A PostScript file is available.
