Spectrum of Platinum homepage

Lines and intensities in the range 1728-1744 Å.


 WAVELENGTH   WAVENUMBER   INTENSITY    CLASSIFICATION     CODE
 ______________________________________________________________

  1728.13      57866.0         52
  1728.30      57860.3         56
  1728.83      57842.6         44
  1729.26      57828.2         63     Pt II    32918- 90746  K
  1729.7243    57812.682      270     Pt II    24879- 82692  K
  1730.4798    57787.441      500     Pt II    36484- 94271  K
  1730.6473    57781.85       620     Ne II                  C
  1730.8544    57774.935     2000     Pt II    41434- 99209  K
  1731.1250    57765.904     1200     Pt II    42031- 99797  K
  1731.4175    57756.145     1100
  1731.57      57751.1         85
  1731.91      57739.7         42
  1732.44      57722.1         58
  1732.93      57705.7         83     Pt I       775- 58482  N
  1733.19      57697.1        150
  1733.5407    57685.407      150
  1733.7099    57679.777      350     Pt II    37877- 95557  K
  1733.93      57672.5        170
  1735.24      57628.9        190
  1735.8642    57608.192    36000     Pt II     8419- 66028  06
  1735.9774    57604.437     4100     Pt II    43737-101341  K
  1736.39      57590.7        180     Pt II    46046-103637  K
  1737.1732    57564.784    21000     Pt I       823- 58388  N
  1737.3402    57559.25       290     Ne II                  C
  1737.5956    57550.790     3600     Pt I       775- 58326  N
  1738.7356    57513.06      1600     Ne II                  C
  1738.9433    57506.187     1700     Pt I         0- 57506  D
  1739.76      57479.2        130
  1739.9574    57472.672      320     Pt II    50564-108037  K
  1740.3637    57459.254      720     Pt II    29030- 86489  K
  1740.9739    57439.115      480     Pt II    42031- 99471  K
  1741.46      57423.1        180
  1742.2518    57396.985      140     Pt II    23461- 80858  11
  1742.34      57394.1         89
  1742.66      57383.5        110     Pt II    41434- 98817  K
  1742.8712    57376.59       910     Ne II                  C
  1743.40      57359.2        170
Character descriptor definitions (appear to right of intensity)
Code definitions

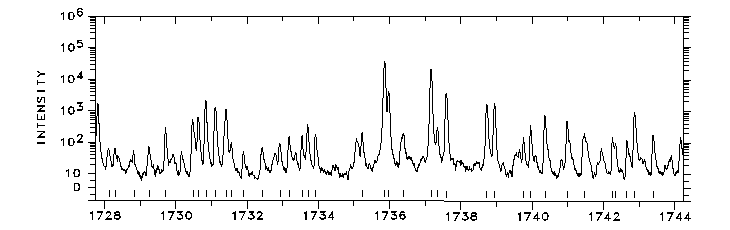

Photoelectric spectrum

1728-1744 Å

                      WAVELENGTH (ANGSTROMS) - VACUUM
